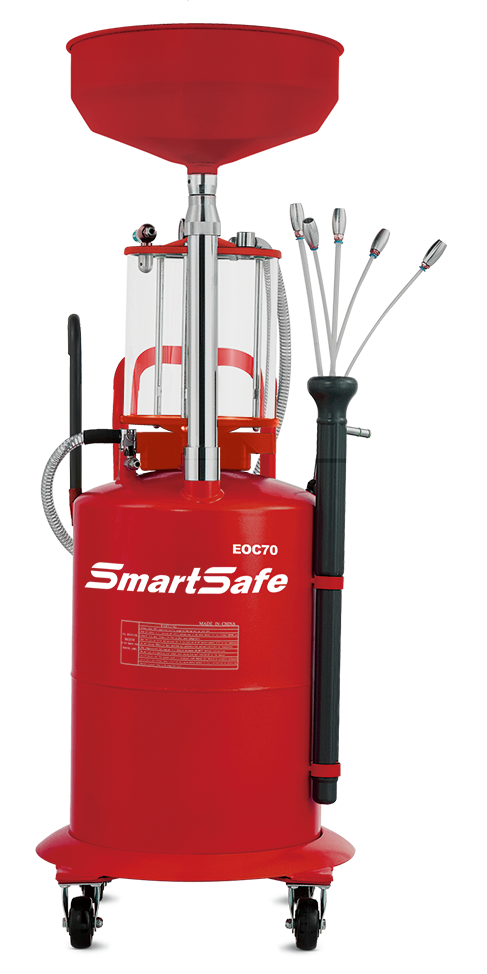

Pneumatic pumping oil machine is a special equipment for the extraction and unified collection of engine waste oil in the process of vehicle
maintenance. The tank body is made of cold-rolled steel plate and integrated tensile molding. The structure is stable and firm, and the app-
earance of high temperature spray plastic is durable.
Features
- The equipment can be moved to meet different working scenarios, with brake anti-wear silent casters, pushing and pulling light and smooth
- Adjustable oil tray height solves oil splashing when receiving oil at different heights; oil rod includes a check valve to avoid oil return
- New vacuum negative pressure design provides strong and quiet suction with high efficiency and no waiting; 15–20 s to complete measuring cup vacuuming
- Toughened glass measuring cup is strong and durable, resists yellowing from oil, offers durable brightness, and withstands high temperatures up to 120 ℃
- Tank body made of cold-rolled steel plate, one-piece stretched and formed, inlaid touch, robot assembly line welding for stability and firmness
- Suction pipe model diversification (Φ5–1 pcs, Φ6–2 pcs, Φ8–2 pcs)
- Measuring cup and tank body equipped with two safety valves to protect equipment and personal safety under set pressure
Functions
- The equipment can be moved to meet different working scenarios, with brake anti-wear silent casters, pushing and pulling light and smooth
- Adjustable oil tray height solves oil splashing when receiving oil at different heights; oil rod includes a check valve to avoid oil return
- New vacuum negative pressure design provides strong and quiet suction with high efficiency and no waiting; 15–20 s to complete measuring cup vacuuming
- Toughened glass measuring cup is strong and durable, resists yellowing from oil, offers durable brightness, and withstands high temperatures up to 120 ℃
- Tank body made of cold-rolled steel plate, one-piece stretched and formed, inlaid touch, robot assembly line welding for stability and firmness
- Suction pipe model diversification (Φ5–1 pcs, Φ6–2 pcs, Φ8–2 pcs)
- Measuring cup and tank body equipped with two safety valves to protect equipment and personal safety under set pressure
Parameters
| Supply gas pressure | 6 ~ 8 bar | Oil temperature | 40 ~ 80 ℃ |
| Discharge pressure | 0.6 ~ 0.8 bar | Gasoline pipeline | 5 pcs |
| Gas consumption | 150 L / min | Φ5 × 1700 mm (PVC, 1 pc) | Rate of pumping: 1.9 L / min |
| Vacuum degree | 0 ~ 65 cmHg | Φ6 × 1700 mm (PVC, 2 pcs) | Rate of pumping: 3.7 L / min |
| Tank volume | 70 L | Φ8 × 1700 mm (PVC, 2 pcs) | Rate of pumping: 6.5 L / min |
| Measuring cup capacity | 10 L | Carton size | 530 × 530 × 990 mm |
| Oil catch pan capacity | 10 L | Gross weight / Net weight | 34 kg / 30.6 kg |
| Machine height | 1380 mm | Container loading quantity | 20GP: 88 pcs / 40GP: 220 pcs |
