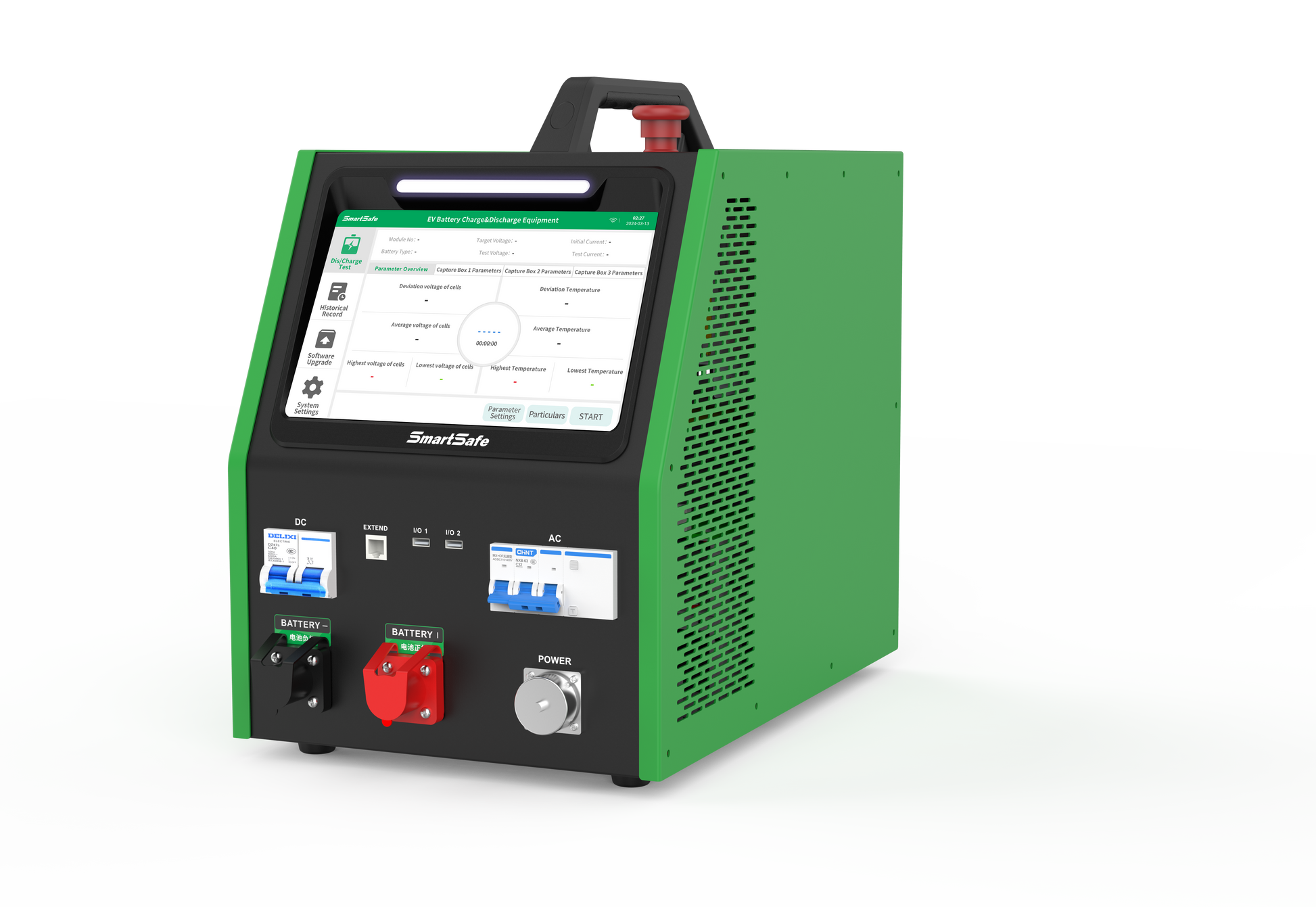

The EP401 V3.0 is a device that supports charge and discharge maintenance and state of health (SOH) testing of battery modules and entire packs
Features
- Supports SOH health assessment with a built-in battery health algorithm that automatically generates battery health reports
- Module and whole-pack one-machine operation with no need to change equipment, adaptable to different battery forms including modules and full packs
- Multi-channel fine data acquisition supporting 72 battery cells and 12 temperature channels, providing detailed insight into cell status distribution
- BMS communication expansion enabling full battery pack diagnostics, BMS communication, full-pack testing, and parameter reading without disassembly, improving efficiency and safety
Functions
- Supports SOH health assessment with a built-in battery health algorithm that automatically generates battery health reports
- Module and whole-pack one-machine operation with no need to change equipment, adaptable to different battery forms including modules and full packs
- Multi-channel fine data acquisition supporting 72 battery cells and 12 temperature channels, providing detailed insight into cell status distribution
- BMS communication expansion enabling full battery pack diagnostics, BMS communication, full-pack testing, and parameter reading without disassembly, improving efficiency and safety
Parameters
| Terminal voltage accuracy | ±0.5% FS ±0.3V (maximum range 400V) | Discharge control | Constant current discharge |
| Single cell voltage accuracy | ±0.1% FS ±5mV (maximum range 5V) | Display | 10.1-inch touch screen, resolution 1280 × 800 |
| Single cell current accuracy | ±0.5% FS ±0.2A (maximum range 100A) | Power input | AC 100–240V, 50 / 60Hz |
| Number of channels | 72 channels (Max) | Discharge current range | Maximum power 7.2 kW |
| Battery module voltage range | DC 2 ~ 400 V | Abnormal protection | Overcharge, overdischarge, overheating, overcurrent, reverse connection protection, disconnection protection |
| Charging current range | Maximum power 4.4 kW | ||
| Charging control | Constant voltage charging, constant current charging |
