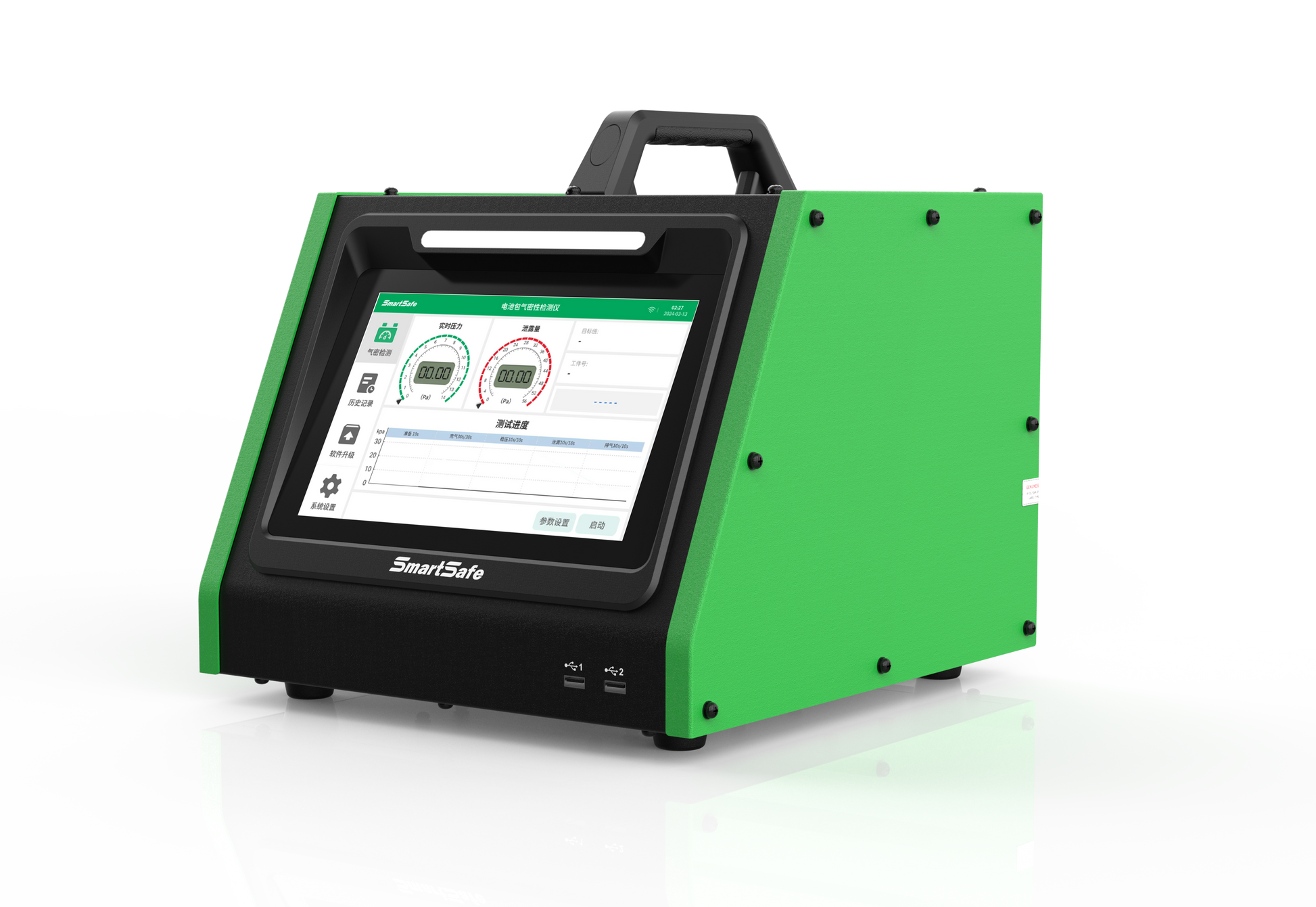

ET500 is a high/low-voltage airtightness testing device for electric vehicle battery pack boxes and liquid cooling systems, suitable for scenarios
such as battery pack end-of-line production, power system assembly, and maintenance re-encapsulation testing
Features
- High and low pressure dual compatibility with a maximum detection range of 500kPa, suitable for liquid cooling systems and box testing.
- Physical separation of high- and low-pressure interfaces reduces misoperation risk and protects equipment.
- Built-in air filtration system filters moisture and impurities, protecting internal sensors and improving detection stability.
- One-button automatic standard process covering pressurization, pressure stabilization, judgment, and exhaust.
- 10-inch touch screen provides intuitive operation and clear real-time information display.
- Process visualization with real-time pressure curve display and clear testing progress.
- Automatic storage of historical test records for quality control and report output.
Functions
- High and low pressure testing: Supports up to 500kPa detection, suitable for liquid cooling and sealed box testing.
- Automatic testing process: Fully automated pressurization, stabilization, judgment, and exhaust for efficient operation.
- Real-time visualization: Displays pressure change curves and test status clearly during operation.
- Data traceability: Automatically saves historical test data for analysis and reporting.
- Air filtration protection: Filters compressed air to improve sensor life and detection accuracy.
- OTA remote upgrade: Supports online firmware and algorithm upgrades for continuous optimization.
Parameters
| Test pressure range | 0 ~ 500 kPa |
| Sensor resolution | 1 Pa |
| Test accuracy | ±5 Pa |
| Air inlet / outlet interface | Φ6 mm trachea |
| Operating temperature | -5 ~ 45 ℃ |
| Operating humidity | 5% ~ 93% |
| Power input | AC 90 ~ 264V, 50 / 60Hz |
| Air requirements | 0.1 ~ 1.0 MPa dry compressed air |
