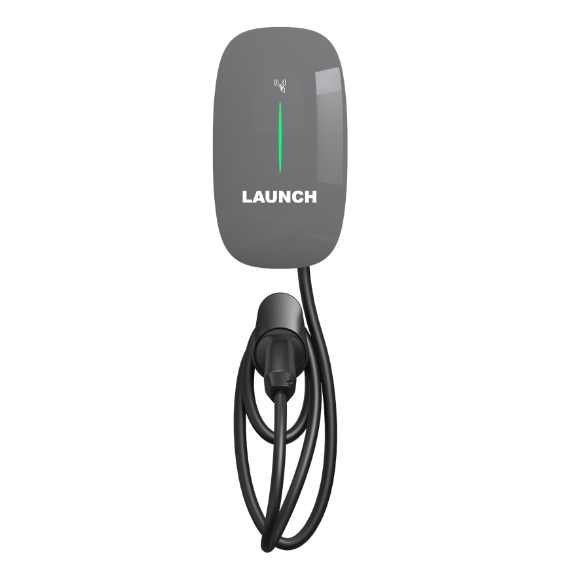

The LAUNCH EV Charging Station, a new addition to our EV family, is designed to fit any charging location, whether in semi-public areas, commercial spaces, or at home. With the X-Charger app, available on the App Store and Google Play, you can smartly manage your charging process, supporting viewing and downloading charging data.
Features
- Select a startup mode to start the charging process.
- AC charging pile(not DC fast charging type).
- Used with the X-Charger APP. (Available on AppStore and Google Play)
- Supports viewing and downloading charging data.
- Supports authorization of charging piles and transferring charging pile accounts.
-
Smart charging anywhere anytime:
- Semi-public Areas
- Commercial Spaces
- At Home
Specifications
|
ECS-007E ( 307070086 ) |
ECS-011E ( 307070085 ) |
ECS-022E ( 307070089 ) |
|
|
Power Supply |
1P+N+PE |
3P+N+PE |
3P+N+PE |
|
Rated Voltage |
230V AC |
400V AC |
400V AC |
|
Rated Current |
32A |
16A |
32A |
|
Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
|
Rated Power |
7KW |
11KW |
22KW |
|
Cable Length |
4m |
4m |
7m |
|
Charge Connector |
Type 2 |
||
|
Enclosure |
Plastic PC |
||
|
Installation |
Wall-mount |
||
|
LED Indicator |
Green/Yellow/Red |
||
|
OCPP |
OCPP 1.6 Json |
||
|
RCD |
Type A + DC 6mA |
||
|
Ingress Protection |
IP65 |
||
|
Impact Protection |
IK08 |
IK08 |
IK10 |
|
Electrical Protection |
Over current protection, Residual current protection, Short circuit protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection. |
||
|
Operation Temperature |
-30℃ ~+50℃ |
||
|
Work Humidity |
5%~95% |
||
|
Work Altitude |
＜2000m |
||
|
Net Weight |
2.8kg |
2.8kg |
5.8kg |
