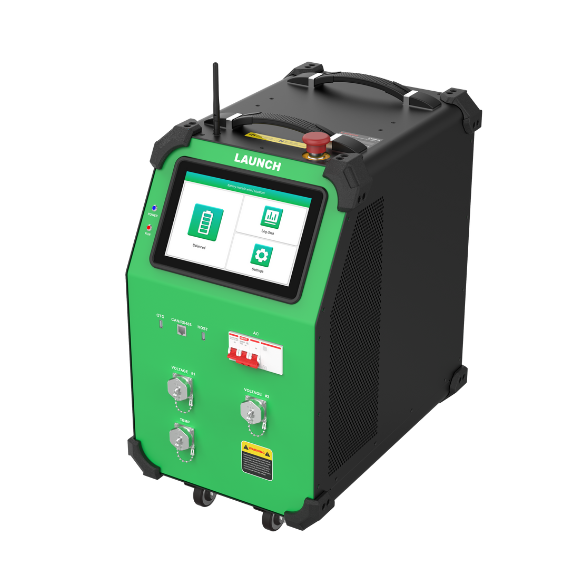

EVB648 - EV BATTERY PACK CELL EQUALIZER
EVB648 - EV BATTERY PACK CELL EQUALIZER
EVB648 - EV BATTERY PACK CELL EQUALIZER
EVB648 - EV BATTERY PACK CELL EQUALIZER
EVB648 - EV BATTERY PACK CELL EQUALIZER
EVB648 - EV BATTERY PACK CELL EQUALIZER

EVB648 - EV BATTERY PACK CELL EQUALIZER

Based on the charge and discharge characteristics of lithium batteries, the EVB648 enables technicians to effectively address voltage inconsistencies among battery modules and cells. The EVB648 helps reduce battery pack repair costs and shortens maintenance time, making it an essential tool for EV detection and diagnostics.   Features 48 Balancing...

Out Of Stock
image/svg+xml

WORLDWIDE SHIPPING

FREE 60-DAY RETURNS

24 MONTH WARRANTY

100% SECRUE CHECKOUT

Based on the charge and discharge characteristics of lithium batteries, the EVB648 enables technicians to effectively address voltage inconsistencies among battery modules and cells. The EVB648 helps reduce battery pack repair costs and shortens maintenance time, making it an essential tool for EV detection and diagnostics.



Features

  1. 48 Balancing Channels & Single Cell Balancing Design
    Provides an independent single cell balancing solution, supporting precise single-cell balancing, up to 48 battery cells simultaneously.
  2. Intelligent Cell Balancing
    Supports multiple battery types, including ternary lithium(NCM/NCA), lithium iron phosphate(LiFePO4), lithium manganese oxide(LMO), and lithium titanate(LTO).
    Allows for the setting of balancing maintenance parameters, pre-selects voltage ranges based on the battery type, and automatically switches charging and discharging modes.
  3. High Precision & Balancing Gain
    Supports high-precision voltage measurement for single cells, effectively improving vehicle power output and ensuring consistent battery pack performance.
  4. Safety Protection & Worry-Free Process
    Provides comprehensive safety for both the device and battery.
    Overcurrent Protection
    Output Overcurrent Protection
    Overvoltage Protection
    Over-temperature Protection
  5. Log Management & Data Visualization
    Supports comparison of "pre-balancing" and "post-balancing" differences, with the ability to export balancing data.
    Real-time monitoring of single cell voltages and balancing status, ensuring a clear and visualized process.

Specifications:

  1. Power Input: AC 90~264V
  2. Discharge & Charge Voltage Range: 1.8~4.5V
  3. Voltage Measurement Accuracy: ±(0.1%FS±2mV)
  4. Discharge & Charge Current Range: 0.1~5A
  5. Current Measurement Accuracy: ±(1%FS±0.05A)
  6. Discharge & Charge Power: 1200W Max
  7. Voltage Port: 26Pin*2
  8. Temp Port: 24Pin
  9. Display: 10.1" TFT LCD, 1280*800
  10. PC Data Communication: TCP/IP, USB-Device
  11. Wireless Communication: Wi-Fi
  12. Data Storage Mode: Internal storage of device or data transfer to USB flash drive
  13. Charge Mode: Constant current charging + constant voltage charging
  14. Discharge Mode: CC+CA
  15. Working Temperature: -5℃~45℃
  16. Dimension: 616.5 x 349.0 x 518.3 mm
