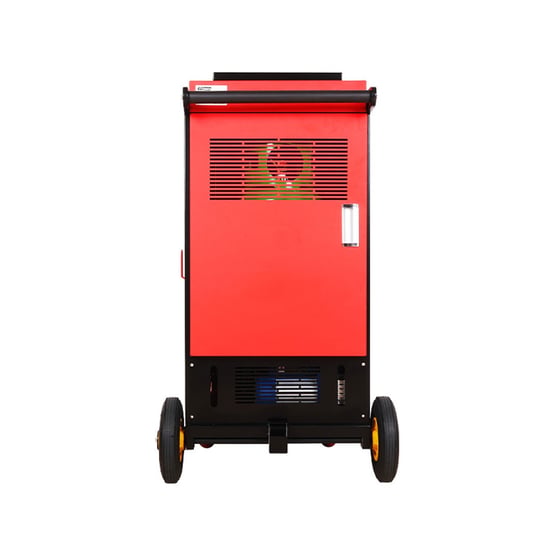

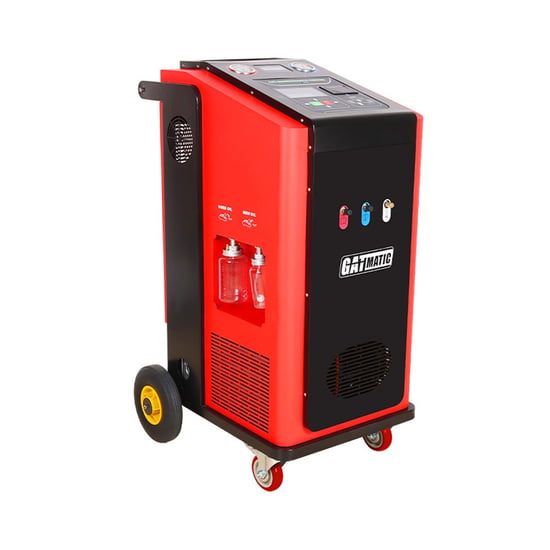

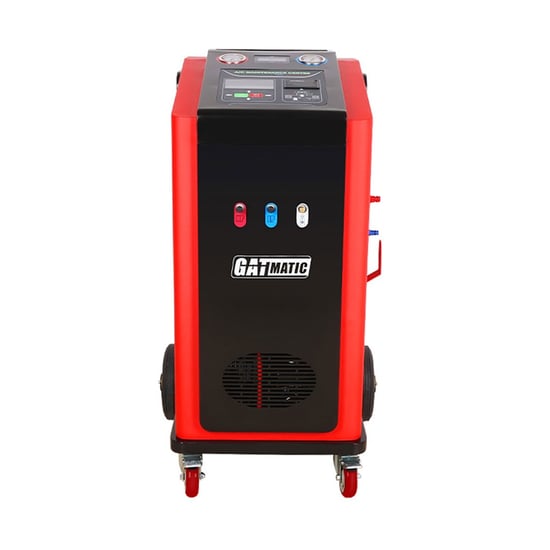

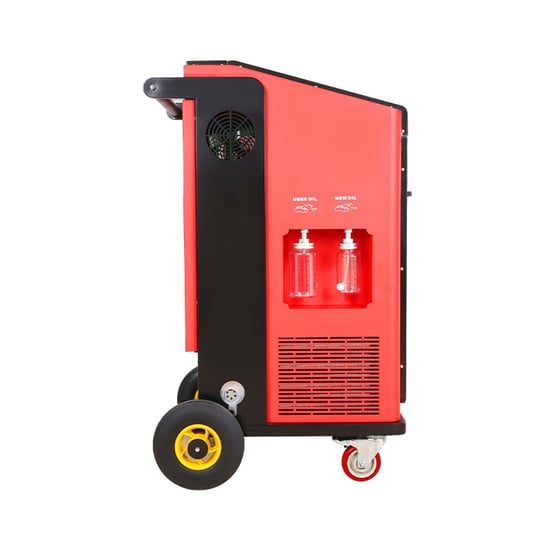

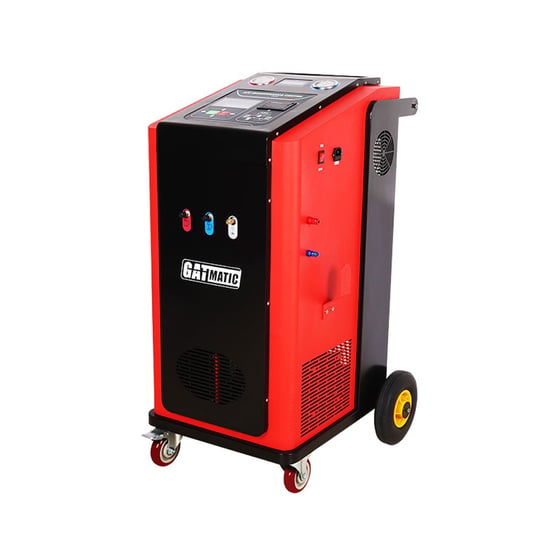

GATmatic GM-720A Full Automatic R134a Refrigerant Recharge Machine
Product Description
GATmatic GM-720A is a fully automatic A/C service machine designed to make the entire refrigerant recovery, recycling, vacuum, and recharging process quick and effortless. Once a function is selected, the GM-720A automatically performs all required operations. Refrigerant is recovered with maximum efficiency, and any potential issues are clearly indicated through error messages.
Automotive Workshop Equipment from GATmatic with Product Number: MK24727
Product Weight: 106 kg
GATmatic GM-720A is designed for maximum practicality. Routine maintenance tasks such as refrigerant recovery and recharging are fast and simple. With up to 13 integrated functions, it is an economical and practical air conditioning service solution for professional workshops.
GATmatic GM-720A Features
- Supports on-vehicle A/C system pipeline cleaning
- Multiple cleaning modes available

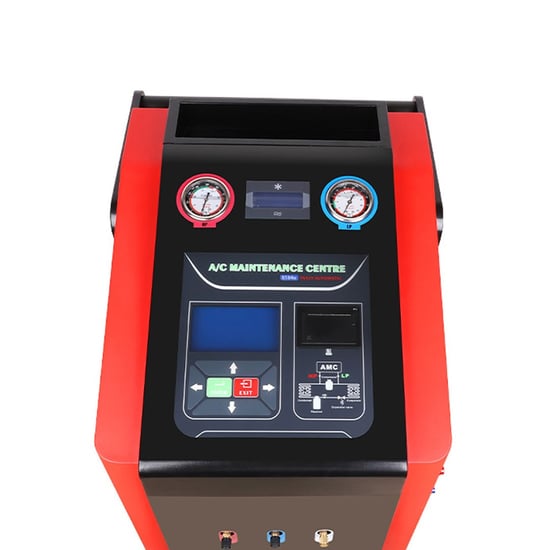

- Large observation window with LED backlight
- Vertically mounted pressure gauges for easy reading
- Special oil separator with patented technology
- User-friendly operating interface
- Auxiliary service port included
GATmatic GM-720A Functions
- Automatic flushing
- Automatic refrigerant recovery and recycling
- Automatic and manual used oil draining
- Automatic vacuum operation
- Automatic and manual new oil injection
- Automatic refrigerant recharging with load cell
- Manual recharging via auxiliary port using jar
- Maintenance message display
- Guided maintenance procedures
- Data printing support
- Built-in database
- Electric scale calibration
- Parameter setting adjustment
GATmatic GM-720A Technical Specifications
- Power Supply: AC 220V ~ 50/60Hz, AC 110V ~ 60Hz
- Refrigerant Type: R134a
- Vacuum Pump: 4.5 CFM, 5 Pa
- Compressor: 1 HP, 12 cc
- Tank Capacity: 12 L
- Load Cell Precision: ±10 g
- Maximum Working Pressure: 17.5 bar
- LCD Display: 240 × 128
- LED Display: 4 digits
