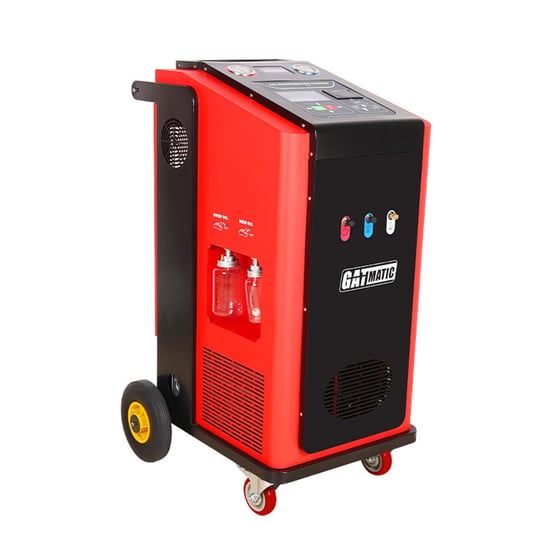

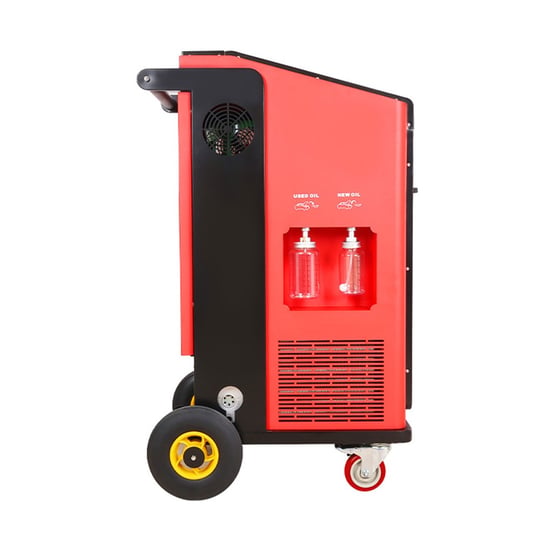

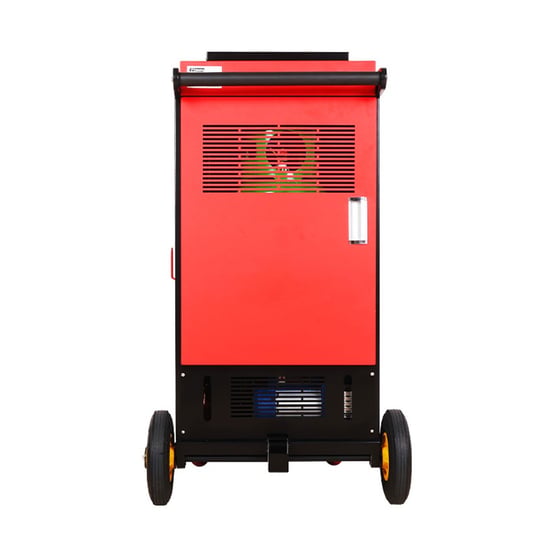

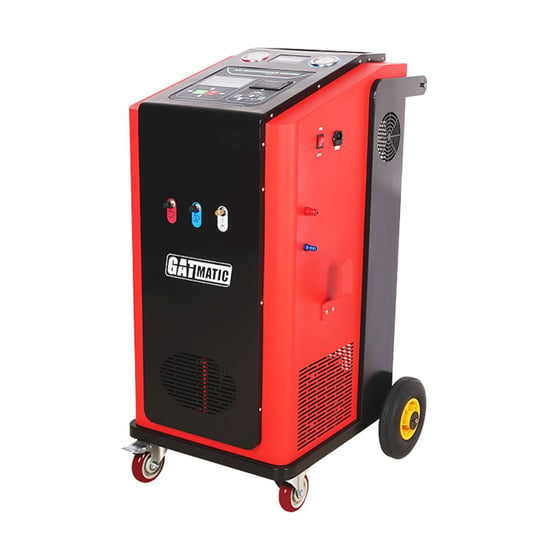

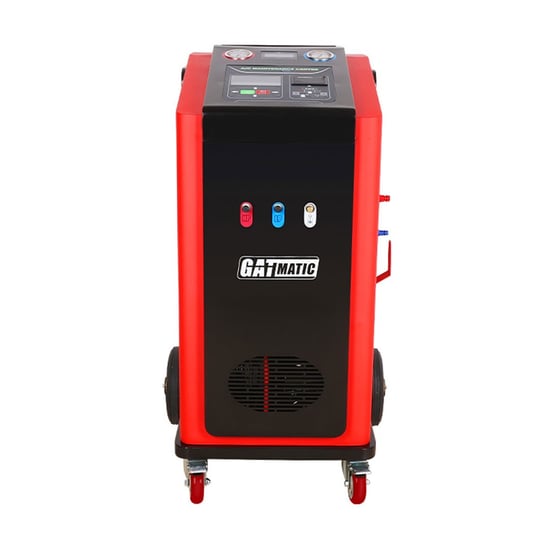

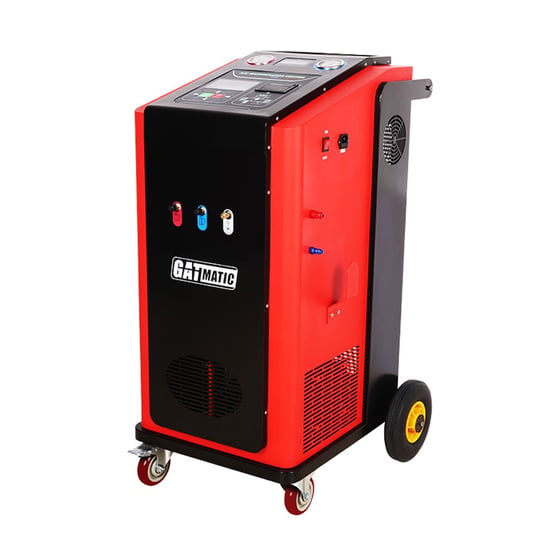

GATmatic GM-720A-YF Fully Automatic R1234yf AC Recover Recycle Recharge Machine
Product Description
GATmatic GM-720A-YF is a fully automatic AC service machine designed for R1234yf air conditioning systems. It features an integrated refrigerant charging database, LCD display, USB port, and printer. The machine fully complies with SAE requirements for recovering, recycling, and recharging vehicle A/C systems using R1234yf refrigerant.
Automotive Workshop Equipment from GATmatic
Product Number: MK24728
Weight: 106kg
The GM-720A-YF is maintenance-friendly and designed to save time while improving workshop efficiency. It is competitively priced and engineered to provide reliable, fast, and accurate AC servicing with multiple automated functions.
Features
- Designed specifically for R1234yf refrigerant
- Environmentally friendly refrigerant support with fast atmospheric breakdown
- Durable reinforced plastic shell suitable for 0℃–50℃ environments
- Available in red or blue color options
- Fully automatic operation without manual valves

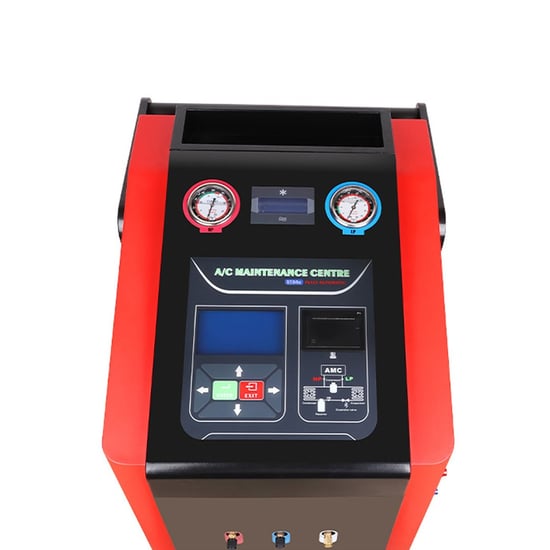

- LCD display with metal dome interface
- User-friendly operating system
Functions
- Timing pulse flushing
- Automatic refrigerant recovery and recycling
- Automatic and manual used oil draining
- Timing vacuum operation
- Manual new oil injection
- Quantitative refrigerant recharging
- Maintenance procedure management
Technical Specifications
| Refrigerant | R1234yf |
| Power Supply | AC220V 50/60Hz / AC110V 60Hz |
| Current | 7A / 10A |
| Compressor | 12.12cc |
| Vacuum Pump | 4.5CFM, 5Pa |
| New Oil Bottle | 300ml |
| Used Oil Bottle | 500ml |
| Tank Capacity | 12L |
| Load Cell Precision (Tank) | ±10g |
| Load Cell Precision (Bottle) | ±5g |
| Maximum Working Pressure | 20 bar |
| Display | LCD 240 × 128 |
| Machine Size | 640 × 640 × 1270 mm |
| Gross Weight | 106kg |
