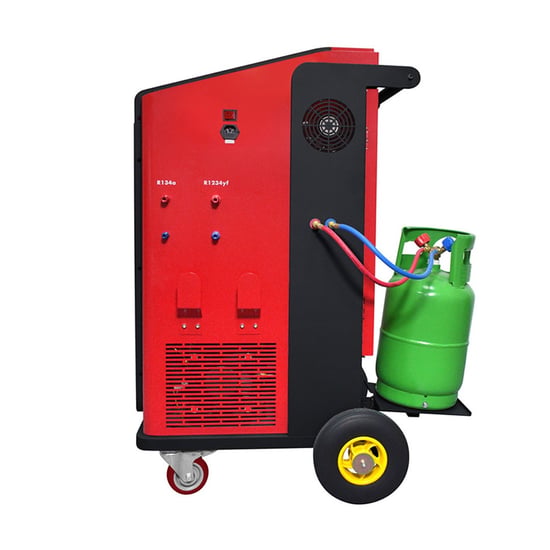

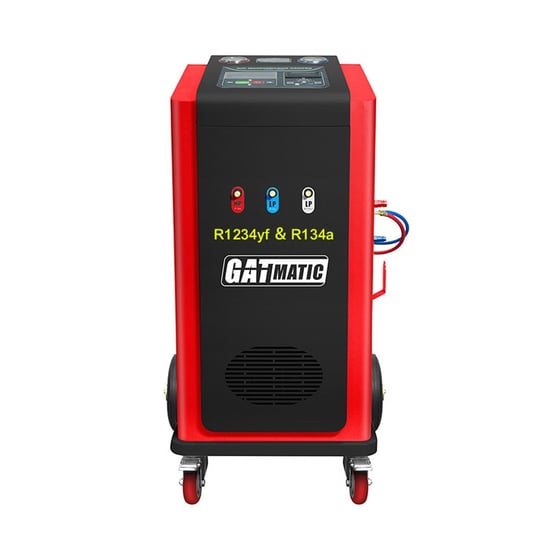

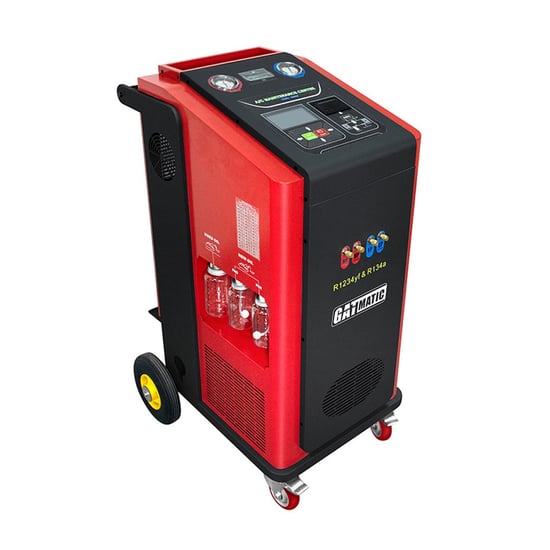

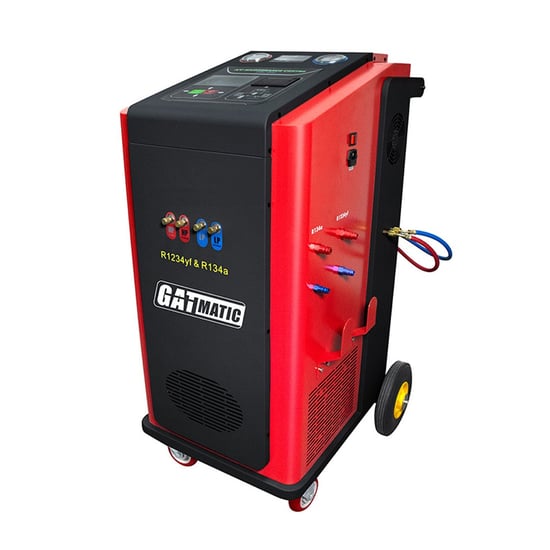

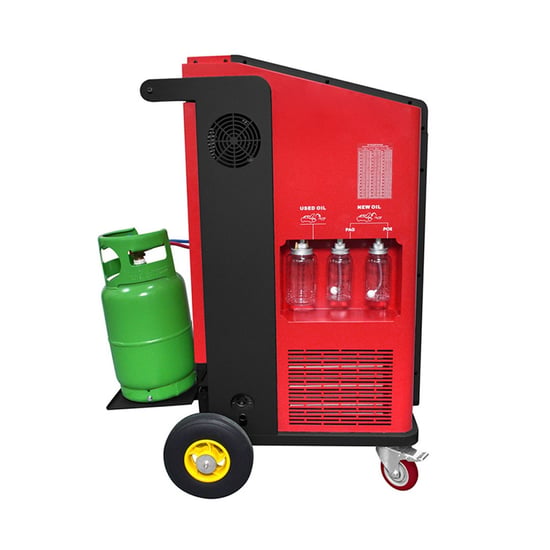

GATmatic GM-830A Fully Automatic Dual AC Service Machine
GATmatic GM-830A is a fully automatic dual AC service machine designed for R134A and R1234YF air conditioning systems. It integrates an intelligent charging database, LCD display, USB port, printer support, and advanced solenoid valve control, ensuring stable operation and high efficiency.
Product Weight: 128kg.
GM-830A supports fully automatic recovery, recycling, vacuum, and recharging processes. With self-diagnosis and protection technology, it is reliable, safe, and easy to operate, making it ideal for professional automotive workshops.
Functions
- Pulse flushing to exchange refrigerant oil
- Fully automatic recovering and recycling (R134A / R1234YF)
- Automatic and manual used oil draining
- Timing vacuum operation
- Automatic and manual new oil injection (PAG / POE)
- Quantitative refrigerant recharging
- Built-in refrigerant and oil database
- Service data printing (time, materials, etc.)
- Refrigerant transfer function
- Equipment self-diagnosis and self-protection
- Maintenance procedures including cleaning and emptying
Technical Specifications
| Refrigerant | R134A & R1234YF (Dual System) |
| Power Supply | AC220V 50/60Hz / AC110V 60Hz |
| Current | 8A / 12A |
| Compressor | 12.12cc |
| Vacuum Pump | 4.5 CFM, 3 Pa |
| New Oil Bottle | 300ml × 2 (PAG & POE) |
| Used Oil Bottle | 500ml |
| Refrigerant Tank Capacity | 12L × 2 (R134A & R1234YF) |
| Load Cell Precision (Tank) | 30kg ±10g × 2 |
| Load Cell Precision (Oil Bottle) | 6kg ±5g |
| Maximum Working Pressure | 20 bar |
| Display | LCD 240 × 128 |
| Machine Size (L × W × H) | 670 × 730 × 1445 mm |
| Gross Weight | 128 kg |
