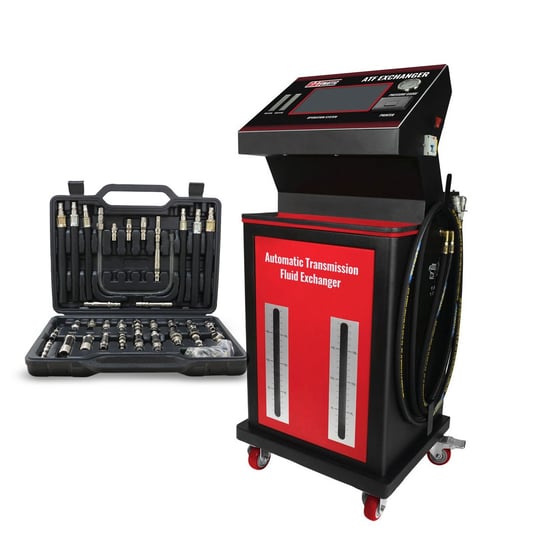

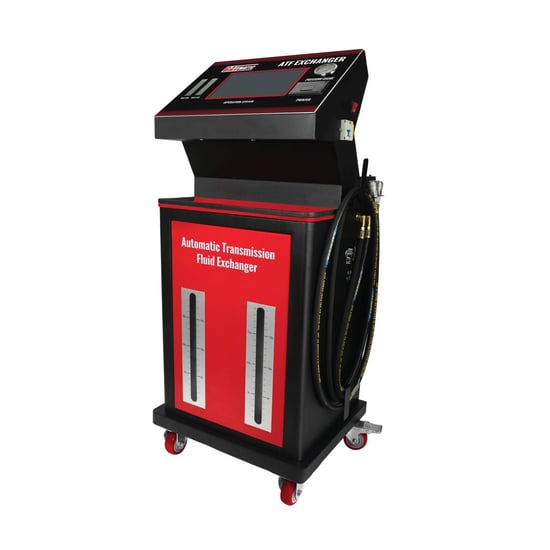

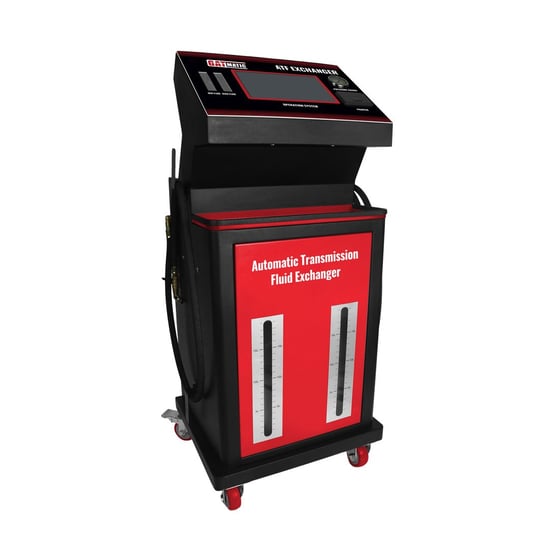

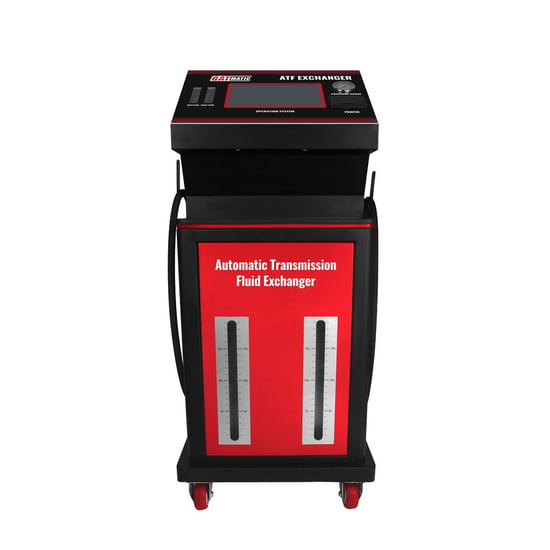

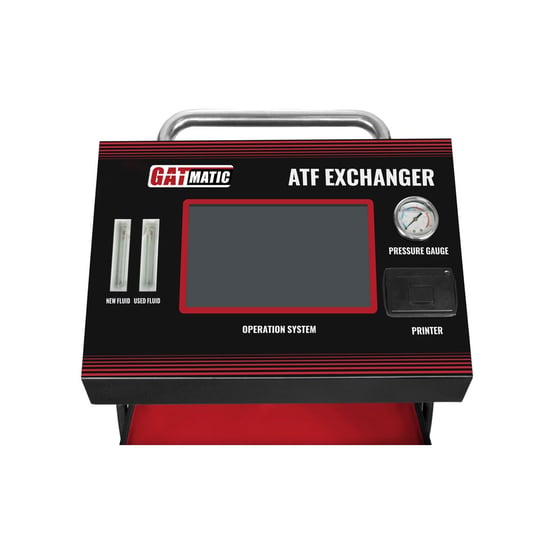

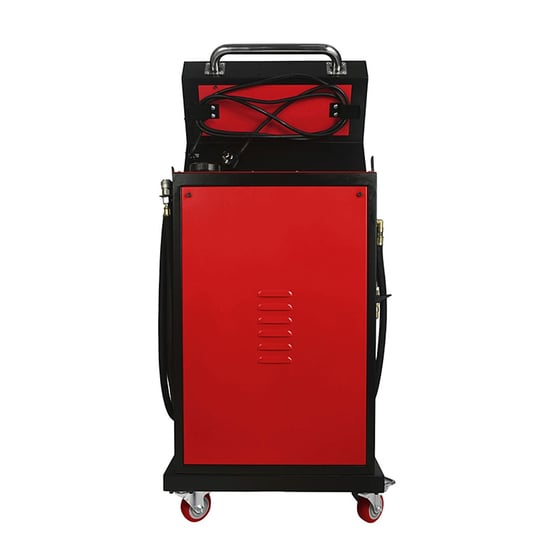

GATmatic GT-516 Automatic Transmission Fluid Exchanger with 10" LCD Screen (Database & Printer)
GATmatic GT-516 is an advanced automatic transmission fluid exchanger designed to replace virtually all used ATF in a vehicle’s transmission through a fully automated process. The system connects through transmission cooler lines and provides a clean, environmentally friendly, and systematic solution for servicing automatic transmissions.
The GT-516 performs complete fluid exchange while the engine is running, automatically controlling oil flow with no manual adjustment required. Its intuitive interface and intelligent control system ensure faster, safer, and more efficient transmission maintenance.
Features
- 10-inch LCD touch screen
- Automatic self-check of oil flow direction
- Built-in database and printer support
- Self-flushing pipeline for different ATF types
- Friendly interface with simple operation
- Fully automatic ATF exchange process
- Customizable system configuration
Functions
- Fully automatic replacement of new and used transmission oil
- Cyclic flushing of the transmission system
- Equal oil exchange function
- Automatic recovery of used fluid
- Automatic filling of new transmission fluid
- Self-cleaning function
- Automatic oil flow direction detection
- Automatic cleaner injection
- Fluid tank emptying function
- Oil exchange under constant temperature
Technical Specifications
| Ambient Temperature | -10℃ to +40℃ |
| Equal Exchange Error | ±0.01 L |
| Relative Humidity | < 85% |
| Power Supply | DC 12V |
| Maximum Power | 150 W |
| Pressure Gauge Range | 0 – 150 psi |
| Display | 10-inch LCD |
| Oil Filter Accuracy | 5 μm |

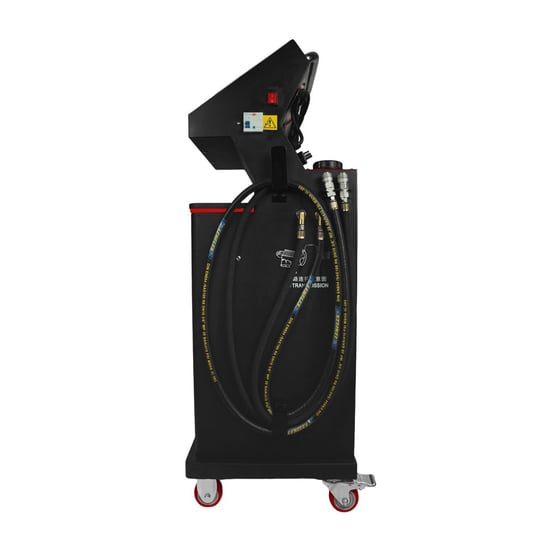

| Oil Pipe / Oil Return Pipe Length | 2.5 m |
| Oil Drain Pipe Length | 1.5 m |
| Oil Tank Capacity | 25 L |
| Noise Level | < 70 dB |
| Net Weight | 35 kg |
