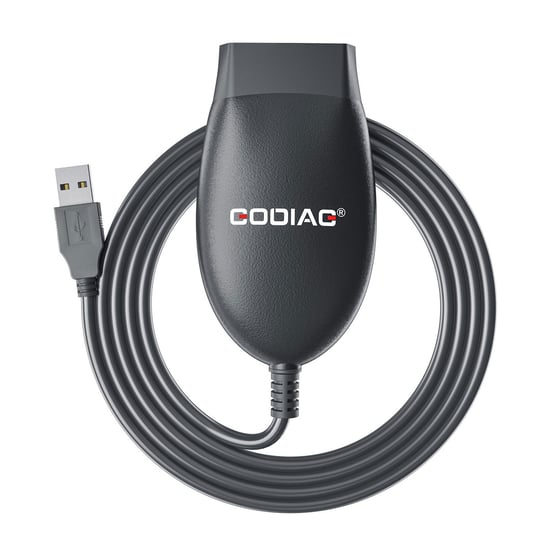

GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS / HDS / TIS / Can Clip / Forscan / ScanMaster / SDD / PCM-Flash / ELM327 / J1979 Compatible Vehicle

GODIAG GD101 J2534 Description:
GODIAG GD101 J2534 Passthru Diagnostic Cable for IDS / HDS / TIS / Can Clip / Forscan / ScanMaster / SDD / PCM-Flash / ELM327 / J1979 Compatible Vehicle
Diagnostic Tools From GODIAG with Product Number: MK22115
This Weight Product: 140g
GODIAG GD101 J2534 Specs:
Manufacturer: GODIAG
Condition: New

GODIAG GD101 J2534 Highlights:

1. Support J2534 and ELM327 mode in one device. Switch mode automatically.
2. Compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, pcm-flash 1.2.0, VAG ODIS 9.1.0 and Renault Clip V227, Renault Can Clip V230.
3. GODIAG GD101 J2534 has the similar functionality as Tactrix Openport 2.0.
4. More speedup. Faster communication and reprogramming.
5. More stability. Never let you down while reprogramming.
6. Portable and convenient. Small package and easy to carry.
7. Wok on Windows 8/10/11, 32/64bit
8. Multi-Languages Available:
ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

Pcmflash: English, Russian

Can Clip Renault: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, Swedish

GODIAG GD101 J2534 OBD2 Openport 2.0 Features:

1. Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, PCMFLash...).
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.

GODIAG GD101 J2534 Supported Car Models:

1.JLR SDD Software for Land Rover/Jaguar
Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines.
Support for X100, X150, X202, X250, X350, X351, X400 Jaguar vehicle lines.

2. HDS Software for Honda
Support for Accord, Civic, Crv, City, et al.

3. Toyota
Support for Camry, Rav4, Carolina, Prius, Lexus

4. ODIS VAG
Support for Vw, Audi, Seat, Skoda

5. GM GDS2 Software
Support for Buick, Chevrolet, Cadillac, etc.


GODIAG GD101 J2534 Function List:

Software
Brand
Year
NOTE

Toyota TIS Techstream
Toyota, Lexus
1995-2022
Free download and activate software, update by link

Honda HDS 3.102
Honda Acura
1995-2022
Does not support non-#7 K-line, update by link

ODIS-S, ODIS -E
VW Audi Skoda Seat
1995-2022
For J2534 VAG only. Don't support CAN FD protocol, Don’t support Ignition switch voltage detection

Forscan 2.3.48
Ford Mazda Lincoln
1996-2022
Cannot do 3, 11 medium speed CAN

Scanmaster V2.0

1996-2022
Free download and activate software

PCMFlash V1.2.0
67 modules
1996-2022
Yes, test by your side

J1979Tester

1996-2022
Free Honda immo code calculation

ELMConfig

1996-2022
Yes, test by your side

JLR SDD2
Jaguar Land rover
2006-2016
Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines.
Support for X100, X150, X202, X250, X350, X351, X400 Jaguar vehicle lines.

GDS2
GM Buick Cadilac Chevlert
1995-2022
Yes

Renault Clip V227/V230
Renault
2005+ Renault with Can Bus Protocol
Free download by link

Notice : Can't support MS-CAN


GODIAG GD101 J2534 Protocol Configuration:



1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.3a

Notice :
Can't support MS-CAN


GODIAG GD101 J2534 Hardware Configuration:


1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0


Godiag GD101 J2534 vs. VXDIAG VCX SE vs. SVCI J2534:

Product
Godiag J2534
VXDIAG VCX SE
SVCI J2534


Software

Ford IDS/
Mazda IDS
Toyota Techstream/
Honda HDS/
Forscan/
VAG ODIS/
Pcmflash/
ELMConfig, Forscan, ScanMaster/
Volvo VIDA/
GM GDS2

Renault Can Clip

Ford IDS/
Mazda IDS/ Toyota  Techstream/
JLR SDD/
Honda HDS/ Subaru SSM3/SSM4/ Benz Xentry/ Volvo VIDA/
BMW ISTA/
VAG ODIS/ Pcmflash/ Forscan/ PCMHumer

Ford IDS/
Mazda IDS/ Toyota Techstream/
JLR SDD/ ScanMaster-ELM V2.4.12/ PCMSCAN V2.1/ ELMconfig/ Forscan/ FOCCCUS/
FF2

Operating system
Windows 8/10/11, 32/64bit (Don’t work on Win7)
Windows 7/ 8/10/11, 32/64bit
Win7 64bit, Win 8, Win 10

J2534 passthru
Yes
Yes
Yes

Online Module Programming
No tested
Yes, need an online account, Ford, GM, Honda, Toyota, etc online programming tested ok
Yes, need an online account. Only Ford/Mazda online programming tested ok

License
No
Customize license
No

Firmware update
No
Update online
No

Software update
Update by Link
Update by link (except Benz and BMW thru HDD/SSD)
Update by Link

Ford trucks 12 V 1998-2006 with PWM protocol ( F series supported)
Unknown
Not working on some F series pre-2010
Yes

How to usd the GODIAG GD101 J2534?

GODIAG GD101 J2534 PCB Display:

Open the startup software, connect the device, and click upgrade firmware.

Update log:

Updated on 2023-8-16

GODIAG GD101 J2534 driver update to V2.3
Support test Renault Clip V227
Renault year 2005+ Renault with Can Bus Protocol

Updated on 2023-03-31
1.Software update to v2.1
2.Firmware update to v1.8

Fixed the following bugs:
1. J2534 mode J1850 VPW TX message size extended to 4128 bytes
2. ELM327 mode can not be connected by PyOBD
3. ELM327 mode can not read ISO9141 VIN

Feedback:

1: For ELM327 mode, errors can also be read out without problems using ForScan.

2: With Forscan, vehicles can be read without any problems.
This adapter is ideal for simple operations such as reading and deleting fault memories.

3: The optical processing is good.
The cable is recognized by the laptop.
I then downloaded a corresponding free program from the Internet to test it, the reading of errors worked quite well with a little trial and error, for more you will probably have to use paid programs.

4: GODIAG J2534 Openport 2.0 Cable is a professional OBD2 diagnostic cable used for vehicle diagnostics and flash chip tuning.

Overall, GODIAG's J2534 Openport 2.0 Cable is a professional diagnostic and flash chip tuning tool that provides a fast and reliable connection to a wide range of vehicles and diagnostic tools. It is an excellent choice for mechanics, tuners and professionals who need a powerful and reliable diagnostic solution.

5: The special thing about this adapter is that it only has to be connected to the PC and if the COM port is set to "Auto" in the ForScan settings, it will be recognized directly and can be used. This automatic port detection is really practical and saves time because you don't have to make any settings.

6: The OBD II adapter is tight and makes reliable contact.

7: I tested it on a 2018 Ford Focus and it worked really well here.
Unfortunately, I can't speak to the overall look of older models, especially pre-2010 models.
All in all, it's a decent OBD2 cable, with impeccable quality and an affordable price that you can definitely get if you need one.

8: GODIAG J2534 V2.1 Driver Works Perfectly with ODIS V10.0 on Win10 Pro
The interface is well made and is used to connect the notebook or computer to the vehicle's OBD2 connector via USB. For me it was important to be compatible with ODIS. Installation was quick and the included QR code takes you to a website with instructions.

9: The plug works perfectly and does what it is supposed to do 100%. The data transmission speed is very fast and I can't write anything negative about this connector. The cable is long enough and due to its quality you don't have to struggle with cable breaks so quickly. All in all, the device promises longevity. Great value for money.

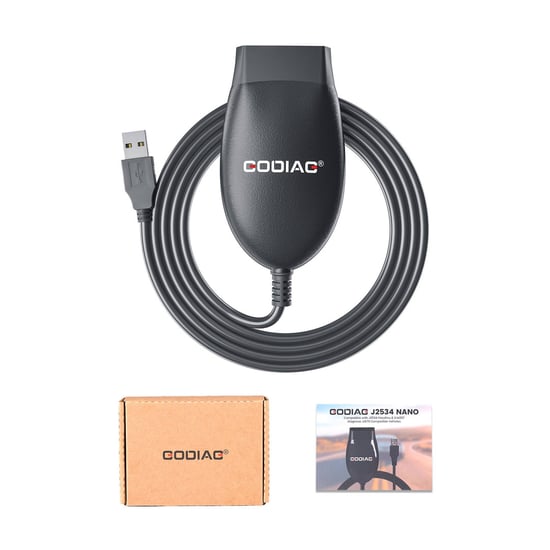

Package Includes:

1pc x GODIAG GD101 J2534
