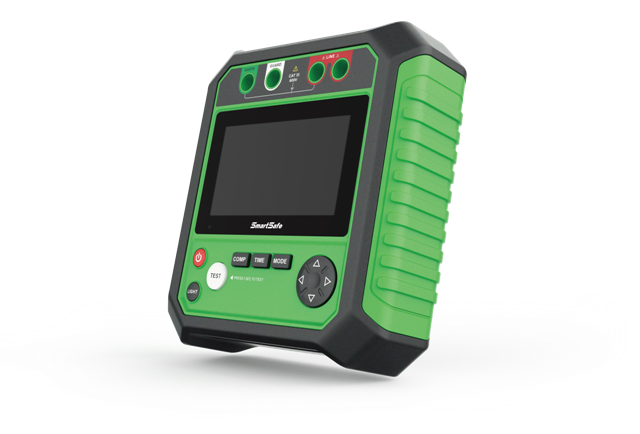

IRT01 is a special insulation resistance tester for EVs. It is equipped with powerful measurement and data processing software, which can efficiently complete the measurement of parameters such as insulation resistance and voltage.
Features
- Flexible application, can measure insulation resistance and AC/DC voltage, support comparison measurement, continuous measurement, timing measurement 3 modes;
- Wide range measurement, for different output voltages, the resistance measurement range can reach 10MΩ-1000GΩ;
- Intelligent alarm, low resistance, timely alarm to protect personnel and equipment safety when the range is exceeded;
- 5-inch LCD backlit display, convenient for measurement in poor light environments;
- Automatically shut down without any operation in 15 minutes, saving energy and electricity.
Functions
- Insulation resistance test: Support the selection of 500V/1000V/2500V/5000V output voltage range, support comparison measurement, continuous measurement, timing measurement three modes.
- Voltage measurement: Support DC and AC voltage measurement.
- Other functions: Support LCD backlight, automatic shutdown after 15 minutes without operation, over-range alarm, high-voltage warning indication.
Parameters
| Output voltage | 500 V / 1000 V / 2500 V / 5000 V | DC measurement | ±30 V~±600 V DC, resolution: 1 V, accuracy: ±2% |
| Insulation resistance | 500V: 10MΩ~20GΩ | AC measurement | ±30 V~±600 V AC, resolution: 1 V, accuracy: ±2% |
| 1000V: 10MΩ~40GΩ | Display mode | 5-inch display | |
| 2500V: 10MΩ~100GΩ | Battery | 3150mAh / 11.4V | |
| 5000V: 10MΩ~1000GΩ | Temperature | 0~50°C | |
| Short-circuit current | <3.0mA | Size | 190×207×72mm |
