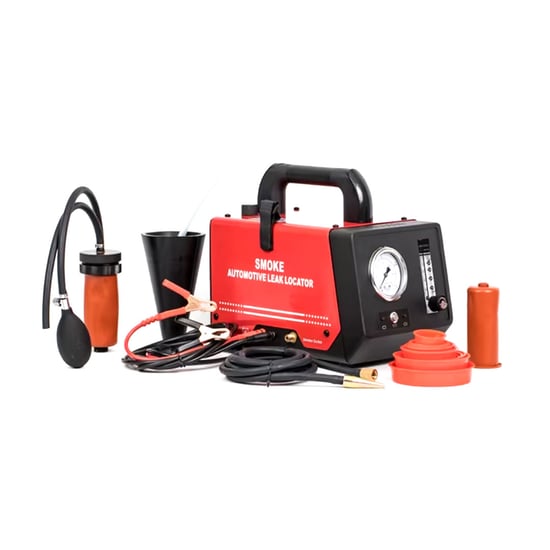

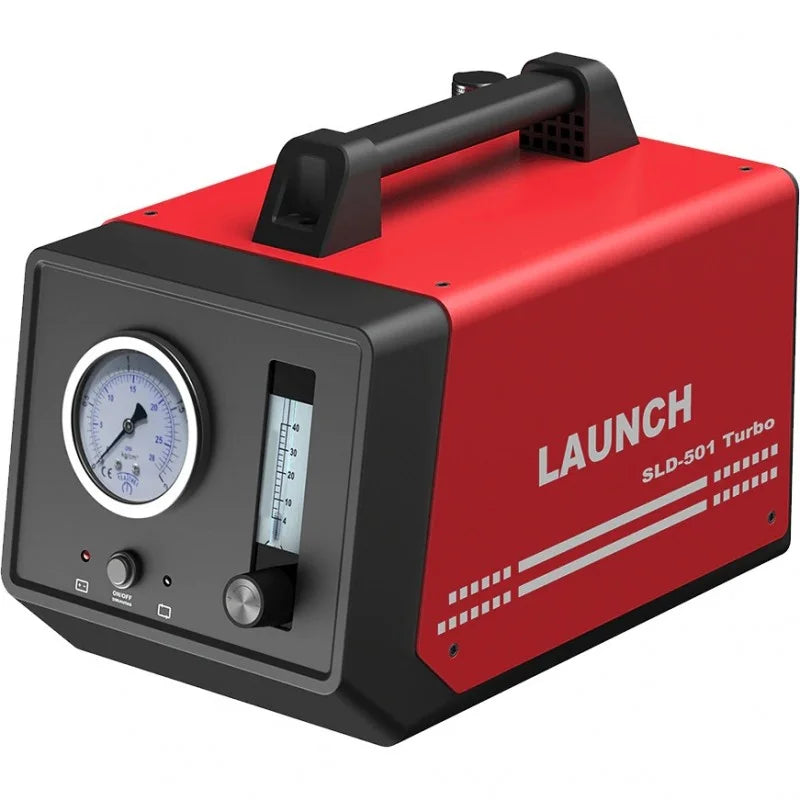

SLD501 smoke leaking detector assist technicians to potential vehicle problems. It is equipped with pressure gauge and flow adjustable meter to ensure a quick diagnosis of leak status. SLD501 support turbo engines.
Features
- Specifically designed to test the turbo automobile systems quickly
- Allow the technician to pinpoint leaks and find failing components
- Inbuilt air compressor with big air flow rate up to 10L/M the UV leak detection makes the leak’ size less than 0.2mm
- The leak status easily to be seen in the variable pressure and variable flow
Technical Parameters
| Model | Turbo |
| Output Pressure | 14–16 PSI |
| Flow Rate | 10 L/min |
| Power Supply | 12V fully charged vehicle battery |
| Pressure Supply | Inbuilt air compressor |
| Smoke Fluid Capacity | 40 ml |
| Main Unit Dimensions | 290 × 185 × 210 mm |
| Gross Weight | 5.6 kg |
| Package Dimensions | 330 × 330 × 250 mm |

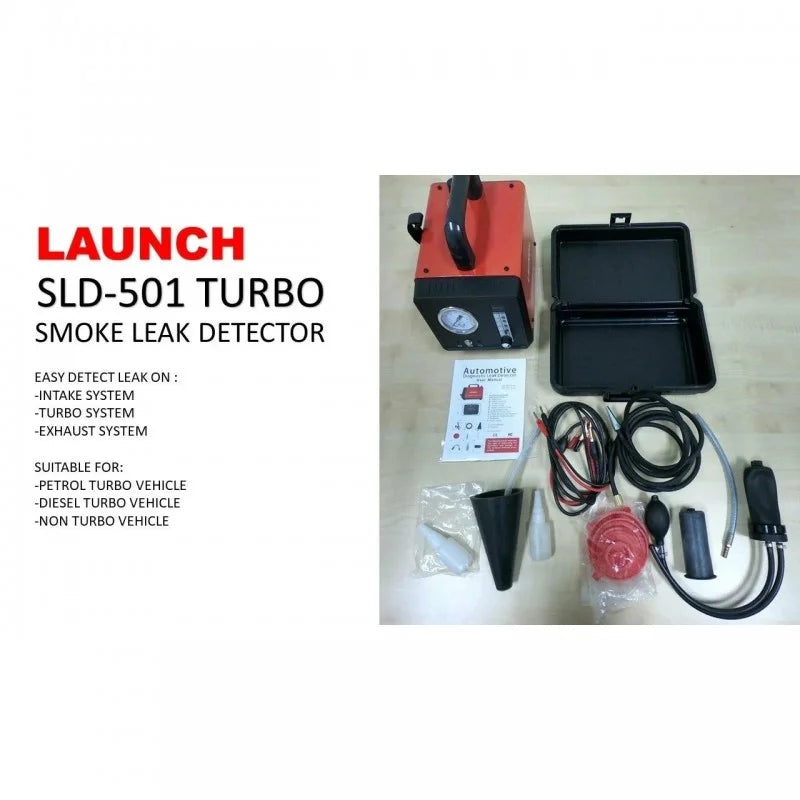

Configuration
| Accessory Case | Included |
| Smoke Hose | Included |
| Power Cords | Included |
| Universal Intake Bladder (Car) | Included |
| EVAP Test Kit | Not Included |
| Adaptor Cone | Optional |
| Pressure Gauge & Flow Meter | Included |
| Block-off Cap Set | Included |
| Smoke Fluid | Optional |
| UV Detection Kit | Optional |
