X-613 Mobile Wheel Aligner

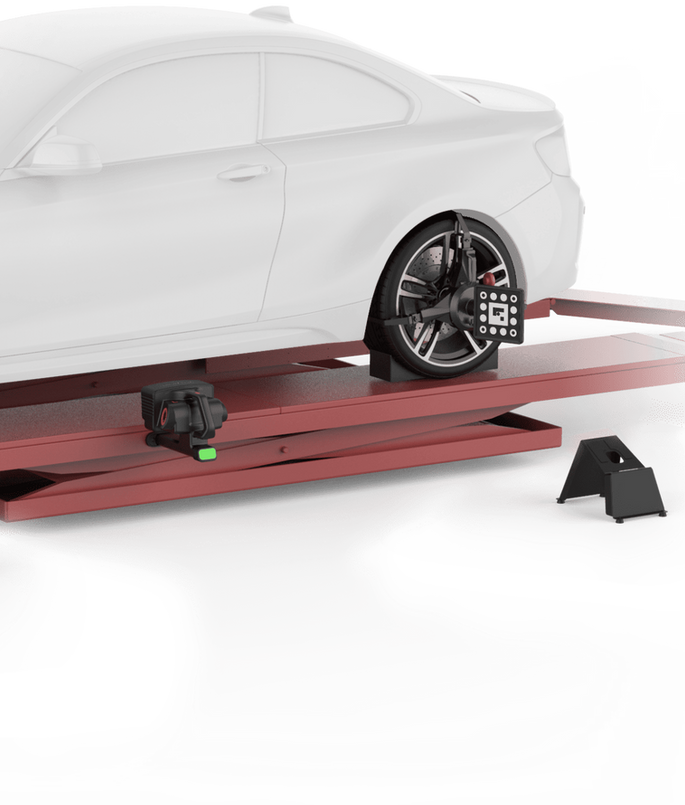

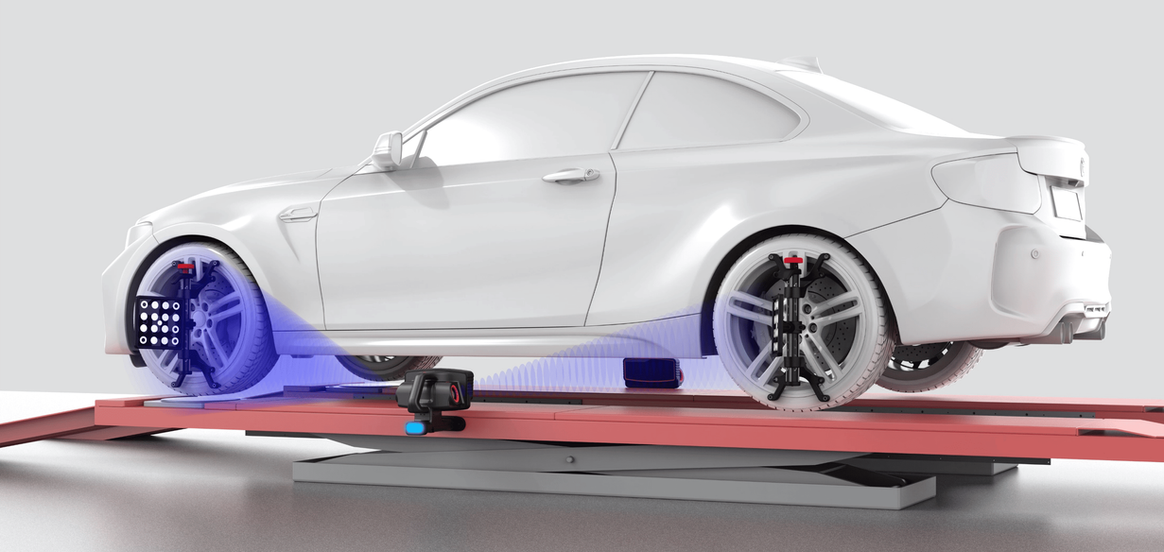

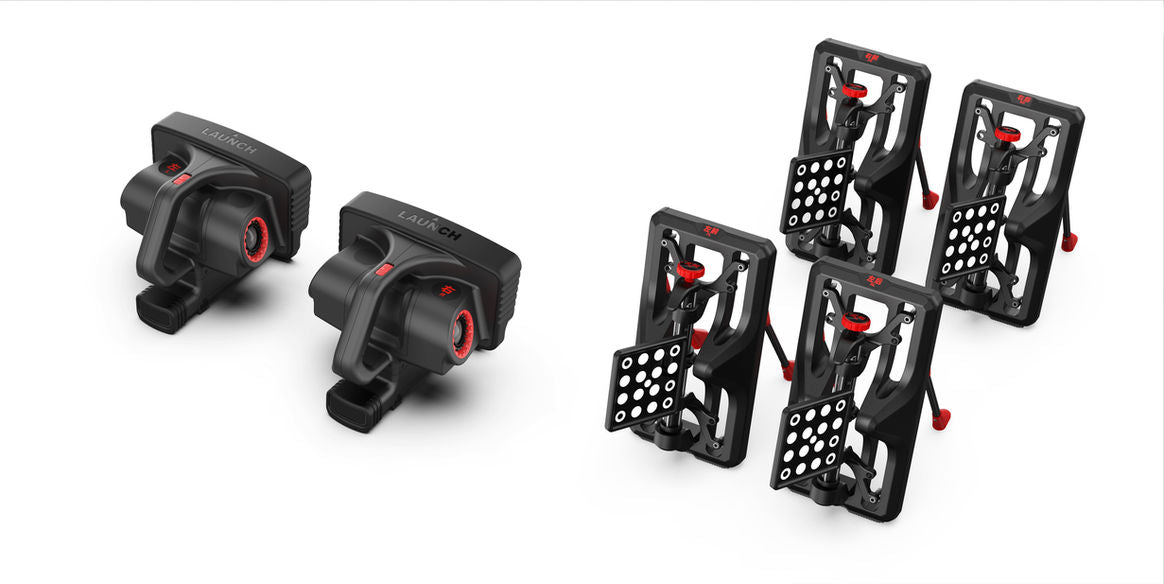

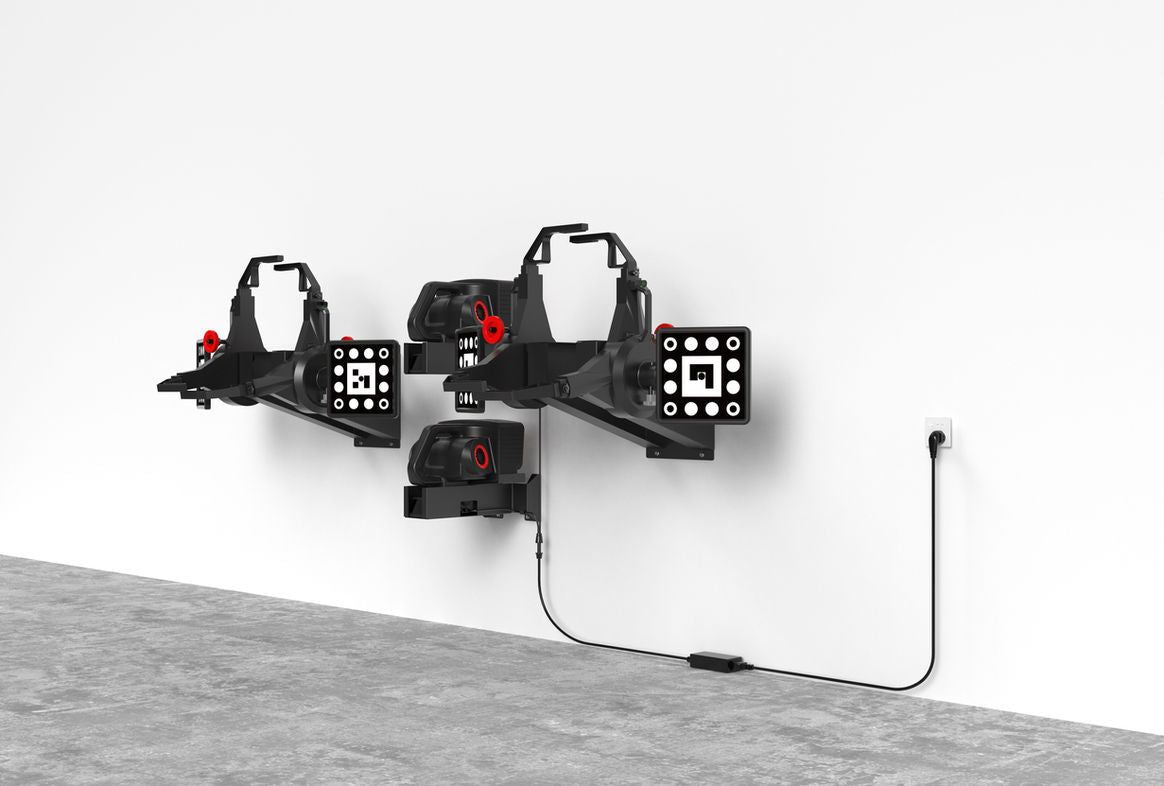

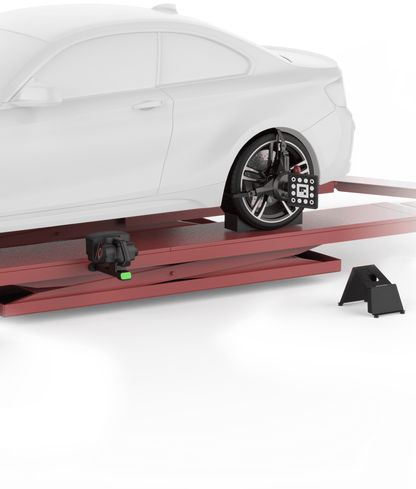

The Launch X-613 is a mobile wheel aligner designed with a streamlined industrial structure. It removes the traditional beam and cabinet setup and utilizes two magnetic measurement units and four wheel clamp targets. These components enable four-wheel alignment detection through wireless networking communication.
The design prioritizes functionality and portability, allowing the X-613 to be deployed in various workshop settings. Its setup does not require installation, wiring, or calibration, making it suitable for both fixed workshop use and mobile service operations.
Features
- Plug-and-Play Operation: Does not require installation, wiring, or calibration; ready to use upon delivery.
- Space Efficiency: Removes the need for beams and cabinets, reducing the space required for operation.
- Measurement Speed: Produces high-precision four-wheel alignment results within 30 seconds.

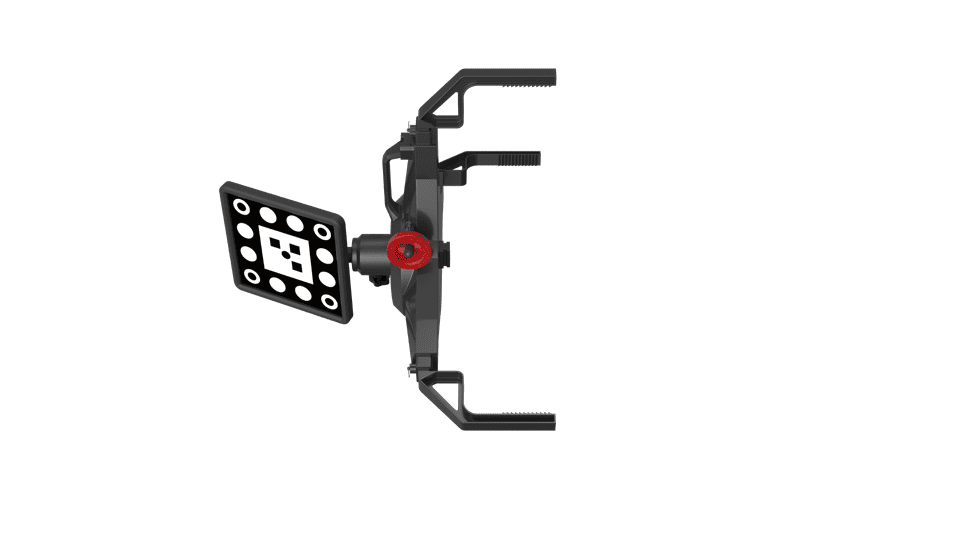

- Wheel Clamp Design: Patented magnesium alloy single axle clamp, lightweight and durable, with a built-in scale for pre-adjustment based on tire diameter.
- Magnetic Measurement Units: Operates without assembly or wiring; designed for immediate use.
- Wireless Communication: Transmits measurement data to a scanner for display and adjustment.
- Compact Packaging: Reduces transport weight and volume by 70-80% compared to traditional 3D wheel alignment systems.
Specifications
- Measurement Parameter, Measurement Range
- Toe Angle, ±20°
- Camber Angle, ±10°
- Caster Angle, ±20°
- Kingpin Inclination, ±20°
- Track Width, 1290~1900mm, (50.79~74.8 in)
- Wheelbase, 1940~4600mm, (76.38~181.1 in)
- Hub Diameter (for 4-Point Wheel Hub Clamp), 275~640mm, (10.83~25.2 in)
- Tire Diameter (for 3-Point Tire Clamp), 470~1100mm, (18.5~43.31 in)
X-613 Mobile Wheel Aligner Packing List
LAUNCH MILLENNIUM 90 PRO
Millennium 90 Pro is a multipurpose code reader. It provides 10 OBDII/EOBD diagnostic modes and special functions including oil reset, brake bleeding, EPB, BMS, DPF, and SAS reset. It also supports live data stream reading for Engine, Automatic Transmission, ABS, and SRS diagnostics to enable complete vehicle detection.
Features:
- Live data stream for Engine, Automatic Transmission, ABS, and SRS
- Full vehicle coverage for domestic, Asian, and European vehicles including gasoline, diesel, and hybrid models from 1996 and newer with OBD2
- Supports Oil Reset, EPB, BMS, DPF, SAS Reset, and ABS Brake Bleeding
- Four-color graphical data display for OBDII engine systems with PC printing and free internet updates
