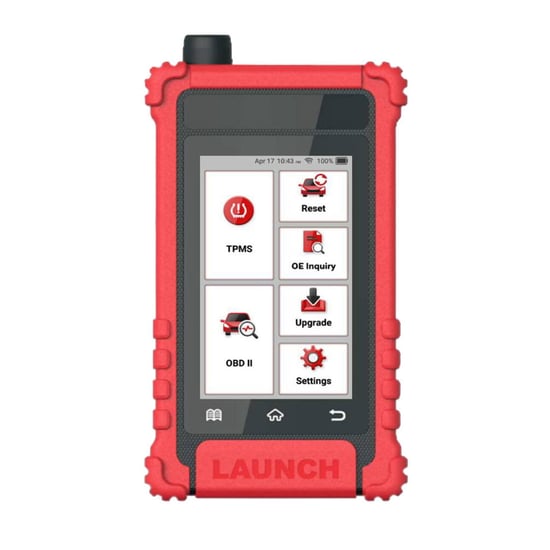

Launch CRT 511S TPMS Tool
Launch CRT 511S is an advanced TPMS and diagnostic tool designed to activate, read, relearn, and program TPMS sensors. It supports nearly all TPMS-equipped vehicles worldwide and allows unlimited programming of LAUNCH LTR RF sensors to replace OE sensors.
Key Features
- 98% vehicle coverage with TPMS-equipped systems
- Activates all known 315MHz / 433MHz TPMS sensors
- Reads TPMS data instantly (ID, pressure, temperature, battery status)
- Programs LAUNCH RF sensors unlimited times
- OBD-based matching & relearning with step-by-step instructions
- Reads & clears TPMS fault codes
- Supports 12 special service functions
- Includes full OBDII / EOBD diagnostic functions
TPMS Functions
Full TPMS Functions (with LAUNCH RF Sensors)
- Covers over 98% of vehicles with TPMS
- Activates all 315MHz / 433MHz sensors
- Reads, copies, and writes sensor IDs
- Reads tire pressure, temperature, and battery status
- Wireless programming with unlimited reprogramming
- Multiple ID generation methods
- Clear comparison between active ID and programmed ID
- OBD-based sensor matching & relearning
- TPMS fault diagnosis (read & clear DTCs)
Diagnostic Functions
- Supports all OBD-II / EOBD protocols
- Reads vehicle information including VIN
- Reads and clears trouble codes with definitions
- Built-in DTC library (1000+ codes)
- Reads freeze frame data
- Live data stream
- I/M readiness status
- O2 sensor test
- EVAP system test
- On-board monitoring
- Multi-language support
- Free updates via USB connection
- Built-in help function
12 Special Service Functions
- ABS Bleeding
- Battery Reset
- Brake Reset
- DPF Regeneration
- Electric Throttle Relearn
- Immobilizer Reset
- Injector Coding
- Oil Maintenance Reset
- Seat Occupancy Calibration
- SAS Reset
- Sunroof Reset
- Windows Calibration
Technical Specifications
- Operating System: Android-based
- Display: 4″, 480 × 800
- Battery: 4000 mAh
- OBDII Input Voltage: 9V – 18V
- DC Input Voltage: DC 5V
- Working Temperature: 0°C – 50°C
- Storage Temperature: −20°C – 70°C
- Dimensions: 159 × 88 × 37 mm
- Weight: 0.7 kg

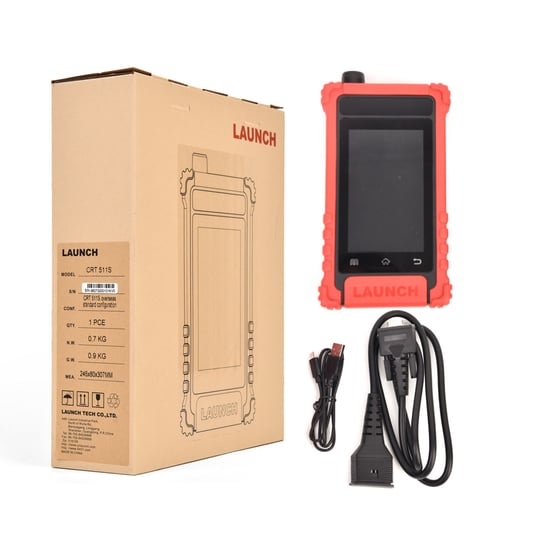

Package Contents
- Launch CRT 511S Main Unit
- OBD-II Diagnostic Cable
- USB Cable (Type-A to Type-C)
- User Manual
