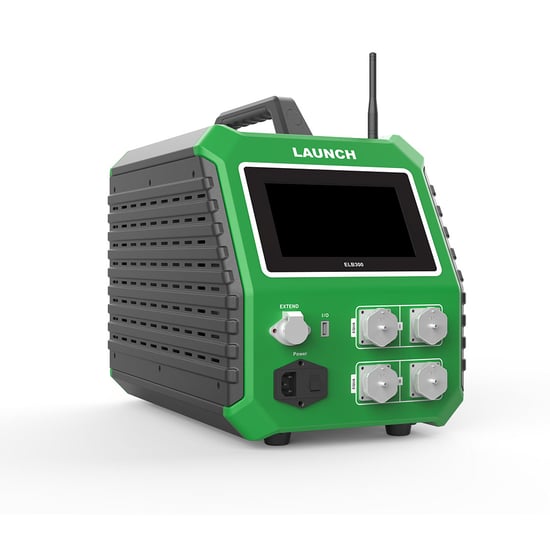

Launch ELB-300 EV Battery Pack Cell Equalizer ( 24 Channels )

Launch ELB-300 EV Battery Pack Cell Equalizer Description:
New Launch ELB-300 EV Battery Pack Cell Equalizer is designed for new energy batteries such as lithium iron phosphate, ternary lithium and lithium manganate, and can quickly solve the cruising range degradation caused by the difference in cell capacity due to inconsistent cell voltages.
Battery Service From Launch with Product Number: MK23292
This Weight Product: 21500g

Launch ELB-300 EV Battery Pack Cell Equalizer Features:


1. The 7-inch LCD touch screen and the intuitive menu simplified the operation.
2. Portable, easy to carry and transport.
3. Applied to all common lithium battery packs testing with various voltage levels.
4. Equalizing maintenance test mode can activate the lithium battery performance completely.
5. Support intelligent equalizing function, and equalizing maintenance parameter customization.
6. Adopt wave width modulation technology, high efficiency, high power factor, low noise, and low electromagnetic interference.
7. Support multiple protection design and alarm settings of voltage, current, temperature abnormal to protect the battery and the balancer.
8. Support the safety protection functions such as overvoltage, undervoltage, overcurrent, output short circuit, anti-reverse protection and overheating protection.
9. Multiple discharge auto-stop conditions make testing mode more intelligent and flexible, and avoid over-charge and over-discharge.


Launch ELB-300 EV Battery Pack Cell Equalizer Specification:

  Display
  7'' capacitive LCD touch screen, 800*480

  Power Input
  Single phase AC 90~264V, 40~60Hz

  Charging & Discharging Voltage Range
  DC 1.8~4.2V

  Voltage Measurement Accuracy
  ±0.1%FS±2mV(maximum range 5V)

  Charging & Discharging Current Range
  0.1~5A(Max)

  Current Measurement Accuracy
  ±0.1%FS±0.05mV(maximum range 5A)

  Battery Temperature Detection Accuracy
  ±2℃(-25~+85℃)
  Charge and discharge temperature range can be set

  The Number of Channels
  2*12

  Charging & Discharging Power
  600W Max

  Battery Interface
  16Pin, 24Pin

  PC Data Communication
  TCP/IP, USB-Device

  Wireless Communication
  WIFI and BT(WIFI external antenna)

  Charging Mode
  Constant current charging + constant voltage charging

  Discharging Mode
  Constant current(constant power, constant resistance discharge can be set)

  Protection Function
  Input overcurrent protection, overvoltage protection, output overcurrent protection, overtemperature protection

  SAFETY TEST

  Breaking Down Test
  AC input-case: 2200Vdc 1 min AC input-case


  DC input-output: 2200Vdc 1 min DC input-case

  WORKING ENVIRONMENT

  Radiation Method
  Forced air cooling

  Temperature

  Working temperature range: -5~40℃
  Storage temperature: -20~70℃

  Humidity
  Relative humidity 0~90%(40±20℃)

  Elevation
  Rated altitude 2000m

  SIZE AND WEIGHT

  Dimensions/Weight
  380*275*460(mm)/17kg
