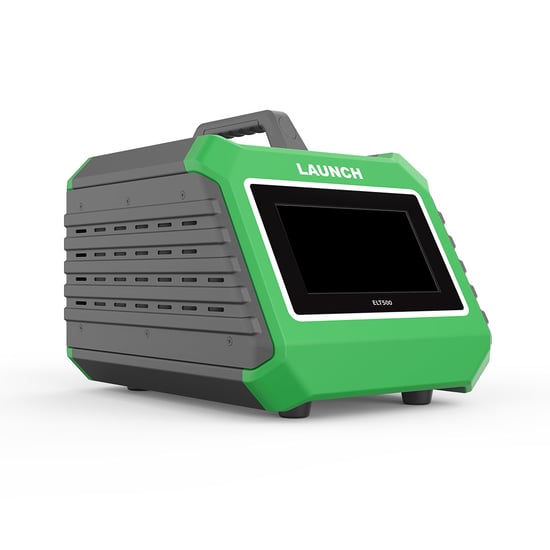

Launch ELT500 EV Battery Pack Airtightness Tester

Launch ELT-500 EV Battery Pack Airtightness Tester Description:
New Launch ELT-500 EV Battery Pack Airtightness Tester is non-destructive testing equipment with high precision, which uses compressed air as a medium to apply a certain pressure to the inner cavity or surface of the product to be tested, and then uses a high-sensitivity sensor to detect the pressure changes to determine the tightness of the product.
Battery Service From Launch with Product Number: MK23291
This Weight Product: 12000g

Launch ELT-500 EV Battery Pack Airtightness Tester Features:


1. The 7-inch LCD touch screen and the intuitive menu simplified the operation.
2. High-sensitivity pressure sensing, greatly improving test accuracy and stability.
3. The test process can display the progress time of each stage.
4. Real-time display of pressure dial and display of process pressure curve.
5. The test parameters of standard parts can be preset and used directly, which is convenient and quick.
6. Parameters such as work piece number, volume, pressure, time of each stage, and leakage limit can be preset.
7. Sound and light alarm will be issued when the test is abnormal or failed.

Launch ELT-500 EV Battery Pack Airtightness Tester Specification:


  Power

  20W(Max)

  Test Pressure Range
  0~30Kpa

  Sensor Resolution
  1Pa

  Test Accuracy
  ±5Pa

  Communication Interface
  RS485/USB

  Data Storage Method
  Internal storage, or data upload to USB drive

  Power Supply
  AC 90~265V

  Air Source Requirements
  0.1~1.0 Mpa dry compressed air

  Intake Port/Test Port
  φ6mm/φ6mm

  Working Temperature/Humidity
  -10~55℃/10%~90% @25℃

  Dimension/Weight
  280*276*360(mm)/4.5kg
