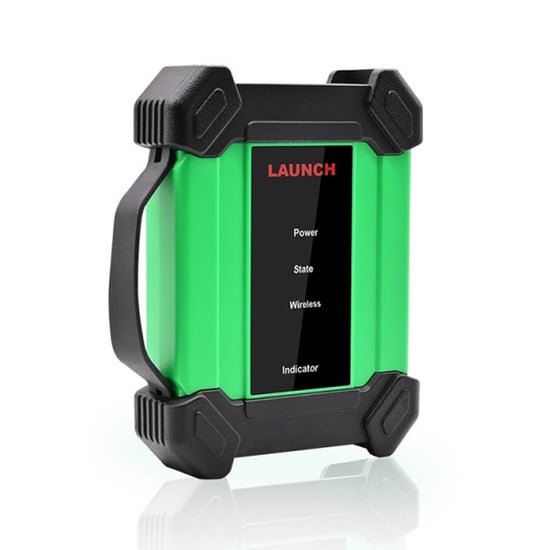

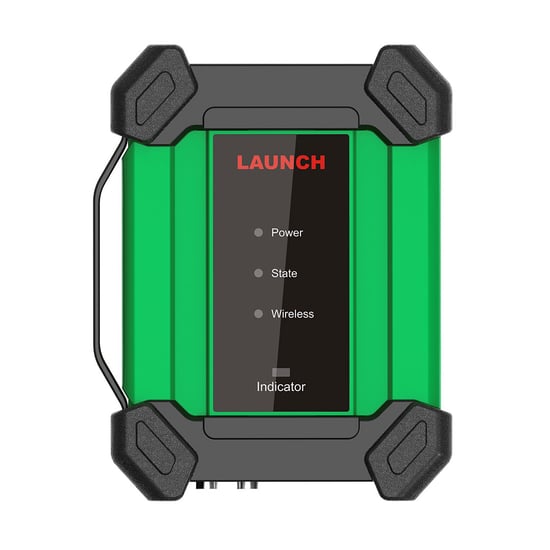

Launch EM101N EV Oscilloscope & Multimeter

Launch EM101N EV Oscilloscope & Multimeter Description:
Launch EM101N EV Oscilloscope & Multimeter The detection and maintenance of the power system is important for new energy vehicles. By viewing the waveform diagram, the maintenance progress can be improved. This product integrates the functions of a multimeter and a dual-channel oscilloscope, which can be used for two purposes. The brand-new diagnostic APP is user-friendly, easy to use and convenient, supports the function of saving and opening waveforms locally.
Diagnostic Tools From Launch with Product Number: MK23295
This Weight Product: 5000g
Launch EM101N EV Oscilloscope & Multimeter Features:


1. Combined with the characteristics of dual-channel oscilloscope and multimeter.
2. The anti-fall rubber sleeve increases the protection of the product, and the unique fuse plug-in design is convenient for replacement.
3. With X-431 diagnostic tool, it can be connected wirelessly or in wired mode, which can be freely selected.
4. With X-431 diagnostic tool, the new UI design supports three display modes, which can be freely switched.
5. Needle sets, multimeter pens, alligator clips, oscilloscope channel test leads, etc. are all available.

Launch EM101N EV Oscilloscope & Multimeter Specification:


  DC Voltage

  Automatic range, test range: ±600V

  AC Voltage
  Automatic range, test range: ±600V

  DC Current

  Automatic range, test range: ±10A
  (It is necessary to connect an external sensor for large range current.)

  AC Current

  Automatic range, test range: ±10A. Average value measurement
  (It is necessary to connect an external sensor for large range current.)

  Resistance
  Automatic range, test range: 0~6MΩ

  On and off
  Tweet when less than 30Ω

  Diode
  0.5V—2.0V

  Battery Capacity
  3100mAh

  Bandwidth
  10MHz

  Channel
  Two analog channels

  Real-time Sampling Rate (Max)
  50MHz/s

  Time Base Range
  1us/div～10s/div, step by 1～2～5 times

  Sampling Mode
  Normal sampling, peak detection, average

  Buffer Memory
  1M

  Input Coupling
  DC, AC, grounded

  Input Resistance
  1MΩ±2%, Parallel with 15pF±5pF

  Vertical Sensitivity
  2mV/div～5V/div

  Vertical Resolution
  8bits

  Maximum Input Voltage
  40V  peak value（DC + AC peak value）

  Probe Attenuation Factor
  1X, 10X, 100X（probe support required)

  Trigger Type
  Edge trigger, pulse width trigger

  Trigger Mode
  Auto, Normal, Single

  Automatic Measurement
  Peak-to-peak value, Average value, Maximum value, Minimum value, Top value,
  Bottom value, Frequency, Period

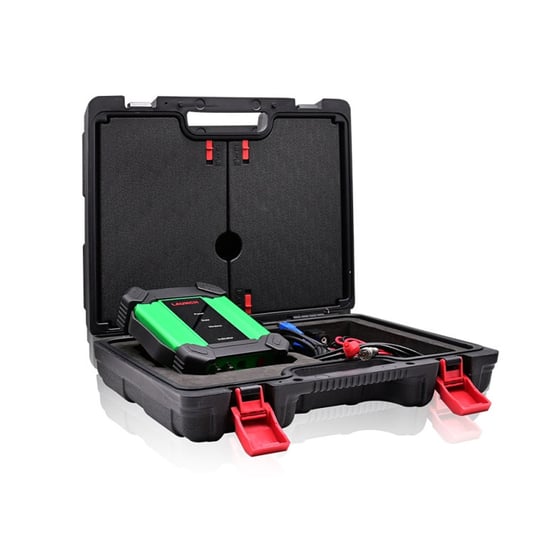

Launch EM101N EV Oscilloscope & Multimeter Package Contents:
