FEATURES

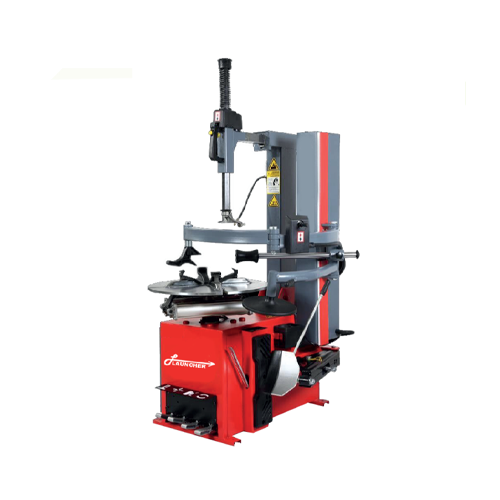

LAUNCHER automatic tire changer is designed and manufactured to mount/dismount the rim.
- Tremendous power and control
- Aid mounting and dismounting
- Pneumatic powered tilting column
- Lock rim for the same sized wheel
- Alloy steel head with plastic protection
- 10 to 24 in clamping range
- Diameters marks conduce to clamping
- Twin cylinders redouble the clamping forceĀ
- Plastic rim protectorsĀ
- Pneumatic powered
- Shovel with plastic sleeve
- Inward clamping size: 13-24inch
- Outward clamping size: 15-26inch
- Max tire size:Ā 26inch(610mm)
- Max tire breadth: 15inch(305mm)
- Bead braking force: 10bar(2500kg)
- Work pressure: 10bar(145PSI)
- Max inflation :Ā 3.5bar(50PSI)
- Power supply: 220V/380V 230V/400V 3PH
- Power supply: 110V 220V 230V 1PH
- Motor power:Ā 0.7kw(3phase,sing speed)/0.85-1.1kw(3phase,dual speed)/1.1kw(single phase)
- Rotation speed: 7-14rpm
- Max spindle torque: 1200NM
- N.T.Ā Ā 387kg STND/ 430kg GT
- Working noise: <70db(A)
- Ambient temperature: -5ā°C~45ā°C
- R.HĀ 30%~95%
