MTM-100 Multimeter Multi-functional Automobile Multimeter with advanced vehicle troubleshooting, equipped with 6000 counts display and the ability to test pulse width and 12V battery test. Features True RMS automotive multimeter with high reliability and safety. Display with large digital screen. Microcontroller data processing and high resolution A/D converter. Full range...

Out Of Stock
image/svg+xml

WORLDWIDE SHIPPING

FREE 60-DAY RETURNS

24 MONTH WARRANTY

100% SECRUE CHECKOUT

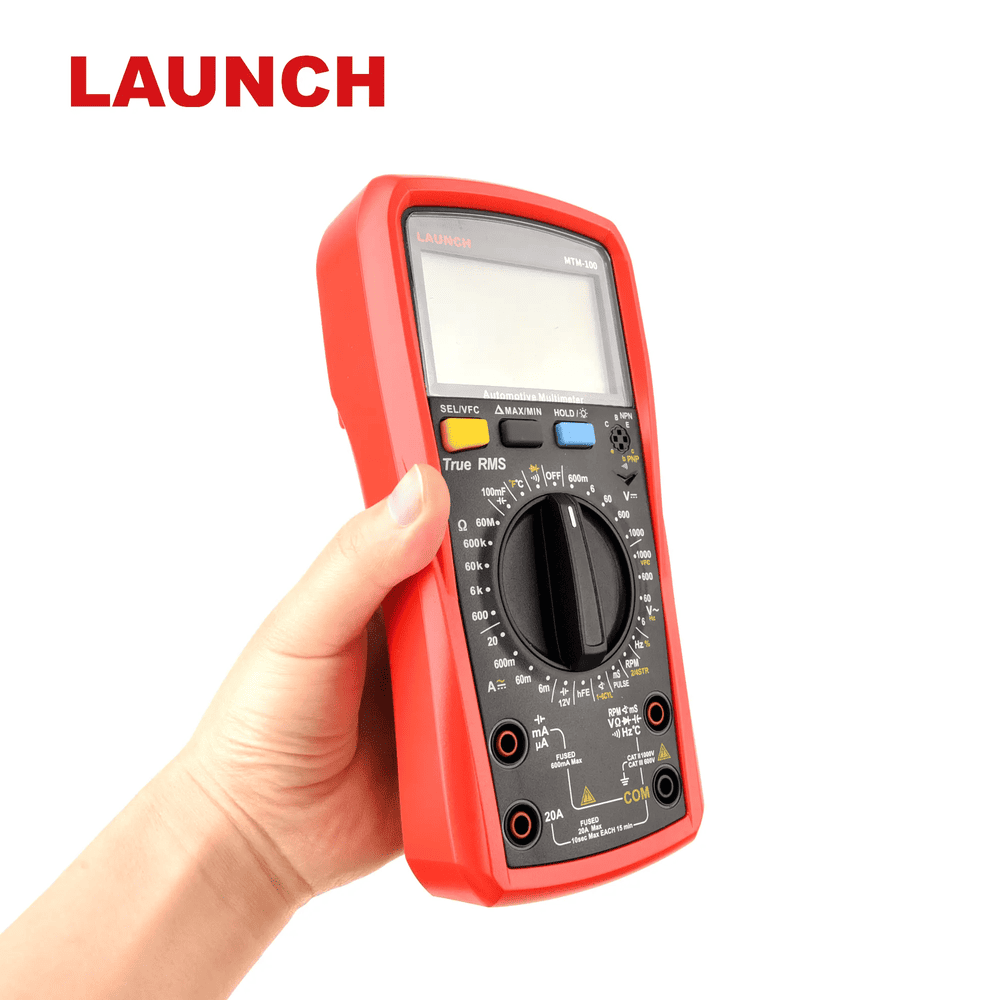

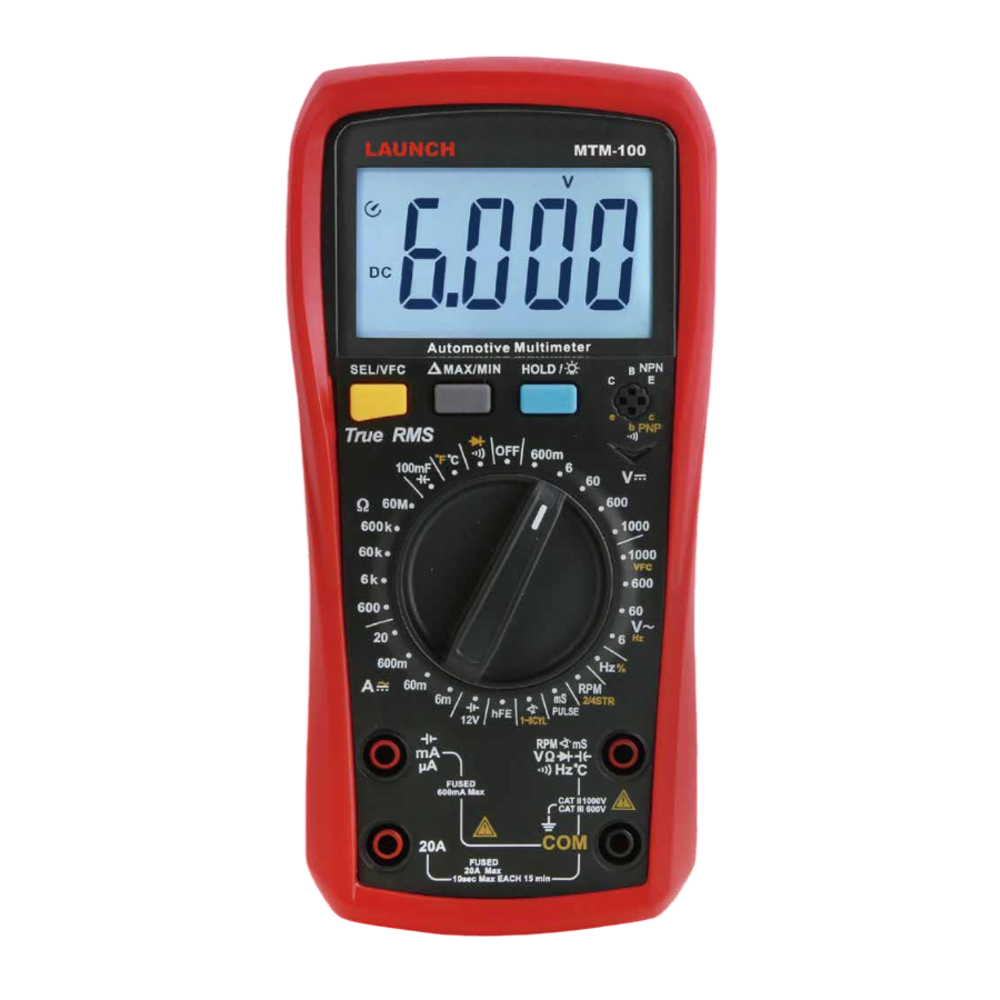

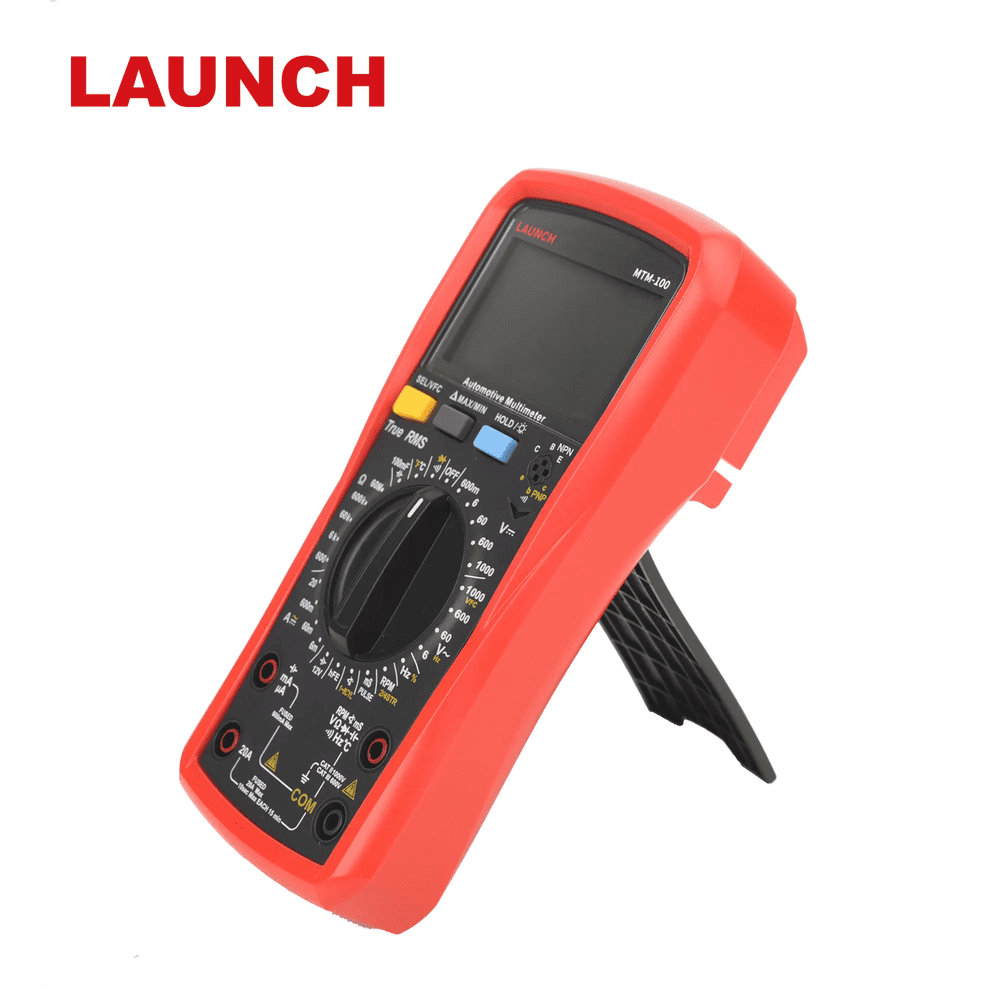

MTM-100 Multimeter
Multi-functional Automobile Multimeter with advanced vehicle troubleshooting, equipped with 6000 counts display and the ability to test pulse width and 12V battery test.

Features

  1. True RMS automotive multimeter with high reliability and safety.
  2. Display with large digital screen.
  3. Microcontroller data processing and high resolution A/D converter.
  4. Full range of overload protection.
  5. Measure AC/DC current and voltage, Resistance, Capacitance, Diode/Transistor, Circuit On/Off, Temperature/Frequency, Dwell angle 1-8CYL, RPM 2STR/4STR, Pulse width and 12V battery test, VFC Low-pass filtering, Maximum and minimum value/Relative value etc.

Specifications

  1. Item: MTM-100
  2. DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+3)
  3. AC Voltage: 6V/60V/600V/1000V ±(0.8%+3)
  4. AC Current: 6mA/60mA/600mA/10A(20A for 10s max)±(1.0%+8)
  5. DC Current: 6mA/60mA/600mA/10A(20A for 10s max)±(0.8%+8)
  6. Resistance: 600Ω/6KΩ/60KΩ/6MΩ/60MΩ ±(0.8%+3)
  7. Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF ±(3%+10)
  8. Frequency: 10Hz - 10MHz ±(0.1%+5)
  9. Pulse Width 999.9mS: ±(1.5%+10)
  10. Display count: 6000
  11. Power: AAA 1.5V*2
