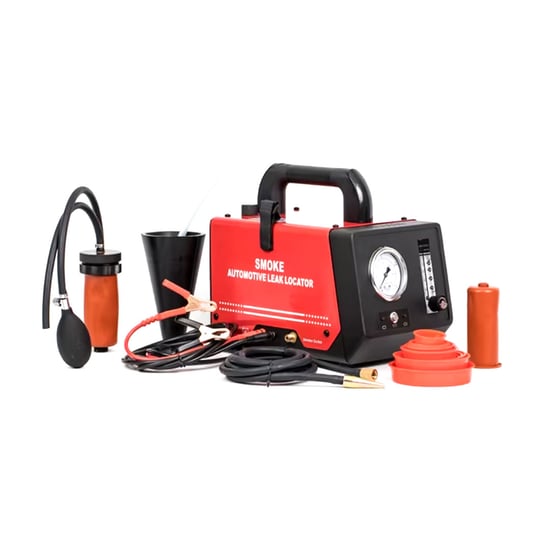

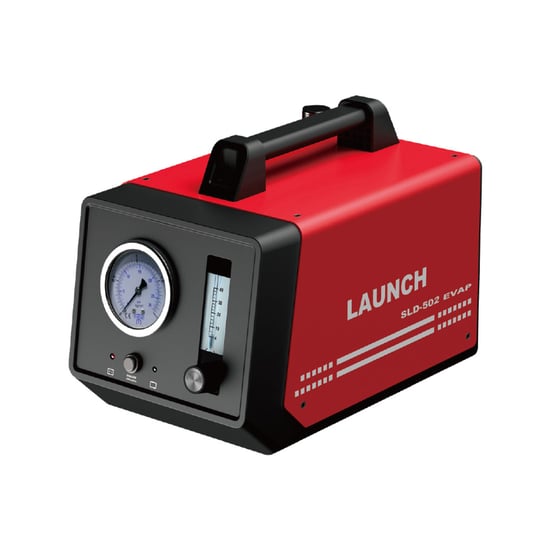

Launch SLD-502 Smoke Diagnostic Leak Detector EVAP
Launch SLD-502 Smoke Diagnostic Leak Detector EVAP allows technicians to quickly pinpoint leaks and identify failing components in EVAP systems. It improves diagnostic efficiency while reducing labor cost and service time.
Features
- Reduces labor cost and increases income per service
- Detachable smoke hose and power cords for flexible operation
- Smart 5-minute working cycle controller with a single control button
- Universal adaptor cone fits most intakes and exhausts
- Equipped with pressure gauge and adjustable flow meter for fast diagnosis
- Built-in air compressor with airflow up to 10 L/min
- Supports UV leak detection for leaks smaller than 0.2 mm
- Leak status clearly visible through variable pressure and flow
- EVAP model fits all passenger car systems except turbochargers
- Turbo model fits all vehicle systems except EVAP systems
Technical Specifications
| Model | EVAP / Turbo |
| Output Pressure | EVAP: 0.5 PSI | Turbo: 14–16 PSI |
| Flow Rate | 10 L/min |
| Power Supply | 12V fully charged vehicle battery |
| Pressure Supply | Inbuilt air compressor |
| Smoke Fluid Capacity | 40 ml |
| Main Unit Dimensions | 290 × 185 × 210 mm |
| Gross Weight | 5.6 kg |
| Package Dimensions | 330 × 330 × 250 mm |
Package Contents
- Accessory case
- Smoke hose
- Power cords
- Universal intake bladder (car)
- Adaptor cone
