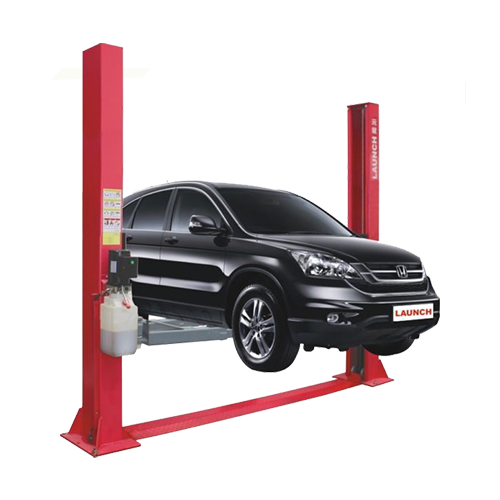

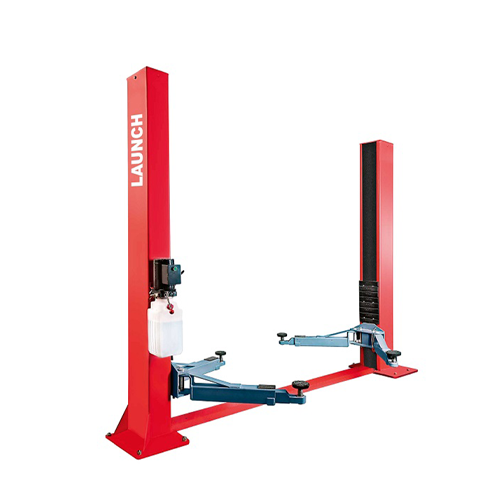

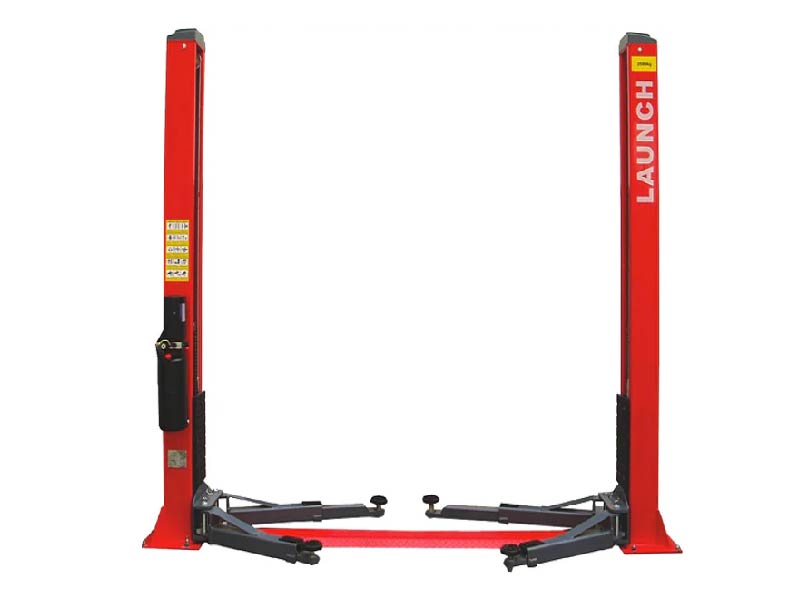

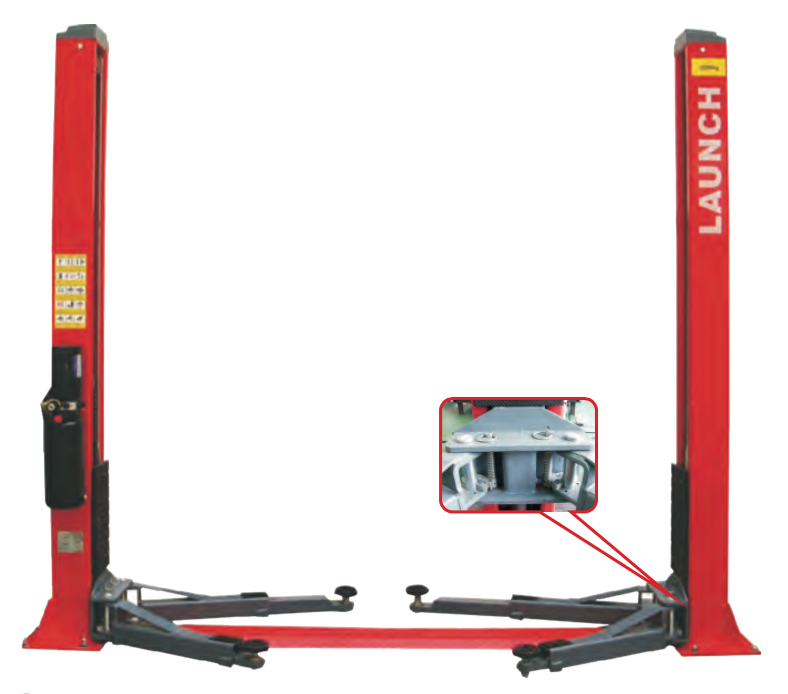

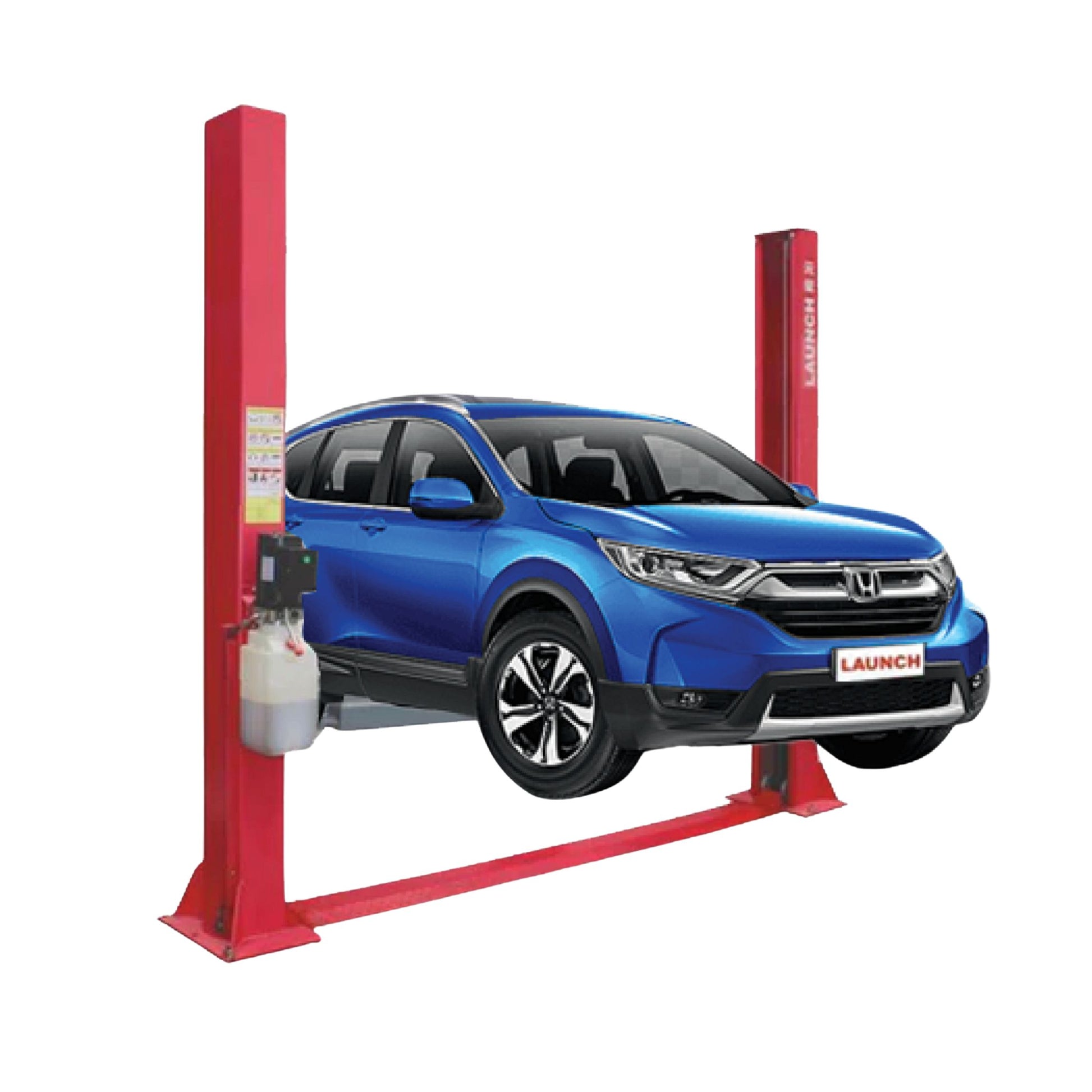

Launch TLT240 SB - BASE PLATE TWO POST LIFT: 2-pole electro-hydraulic, symmetrical lift with lower synchronization for installation in service stations with a limited ceiling height. And Differs from Launch TLT240 SB BASE PLATE TWO POST LIFT in the presence of an electromagnetic stopper.
Features
- Bilateral manual safety unlocking system.
- The cable and oil pipe are fully concealed with decent and elegant appearance.
- Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
- Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.
- 24V low voltage control box (IP54 level) ensures operator's safety.
- 24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.
- Door rubber pad protects car door from being damaged in collision.
- More lifting pads with different height meets the requirements for light lorries and SUVs.
- Passed 115% dynamic loading test and 150% static loading test .
- CE certificated.
Specifications
| Item | TLT240 SB |
| Lifting capacity: | 4.0 t |
| Lifting height: | 1950 mm |
| Lifting time to maximum height: | 50 sec |
| Lowering time: | 40 sec |
| The width of the opening for the passage of vehicles: | 2486 mm |
| Minimum height of pickups from the floor: | 110 mm |
| Dimensions: | height: 2780 mm width: 3370 mm |
| Noise level: | up to 80 dB |
| Compressor operating pressure: | 16MPa |
| Motor Parameters: | 1three-phase \ single-phase 380V / 50Hz 2.2kw \ 220V / 50Hz 2.2kw |
Terms of Use
| Item | TLT240 SB |
| Operating temperature range: | -5 ° C ~ + 40 ° C |
| Transportation / Storage Temperature: | -5 ° C ~ + 40 ° C |
| Relative humidity: | at a temperature of +30 ° C, no more than 80% |
| Height above sea level: | no more than 2000 m |
