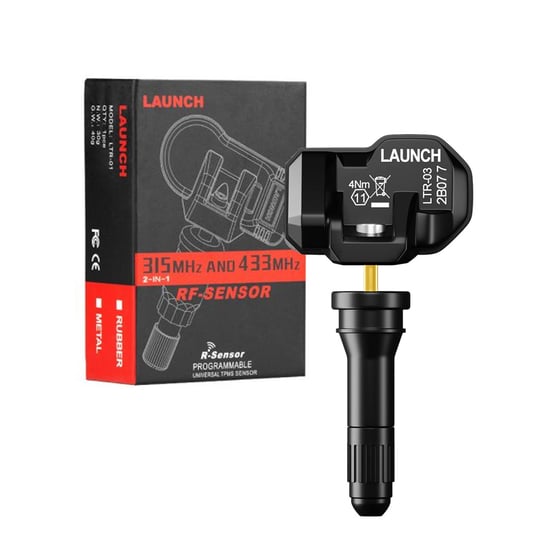

Launch TPMS Sensor Rubber LTR-03 RF (315MHz & 433MHz)
Launch LTR-03 RF Rubber TPMS Sensor is a universal, programmable tire pressure monitoring sensor supporting both 315MHz and 433MHz frequencies in one unit. Built with automotive-grade components, it delivers OE-level accuracy, durability, and long service life for TPMS-equipped vehicles.
Product Details
- Material: Rubber
- Condition: New
- Weight: 45 g
Key Features
- Dual-frequency sensor (315MHz & 433MHz) in one unit
- Covers up to 98% of TPMS-equipped vehicle models
- Replaces original OE TPMS sensors and copies original sensor data
- Unlimited reprogramming with LAUNCH TPMS tools
- OE-level performance with non-destructive installation
- High-precision FXTH87 automotive-grade chip
- Pressure accuracy up to 0.1 BAR
- High-precision air valve prevents air leakage
- Durable rubber valve ensures long-term stability
Programming & Usage
How to Use the Launch LTR-03 RF Sensor
- Use a TPMS diagnostic tool to perform tire pressure learning
- Follow the on-screen learning steps provided by the diagnostic tool
- Some vehicles support self-learning after short-distance driving
- Install the tire with the programmed TPMS sensor on the vehicle
- Once learning is completed, the dashboard displays normal tire pressure
Technical Specifications
- Operating Frequency: 315MHz / 433MHz
- Battery Voltage: 3.0V
- RF Transmitter Power: 5–8 dBm
- Working Temperature: −40°C to 125°C
- Storage Temperature: −40°C to 125°C
- Ingress Protection: IP67
