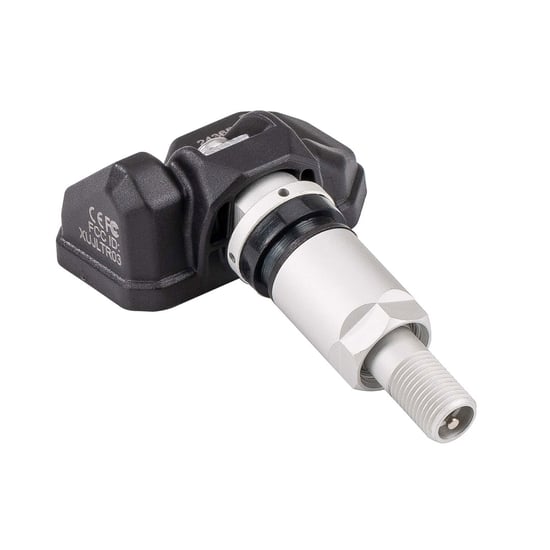

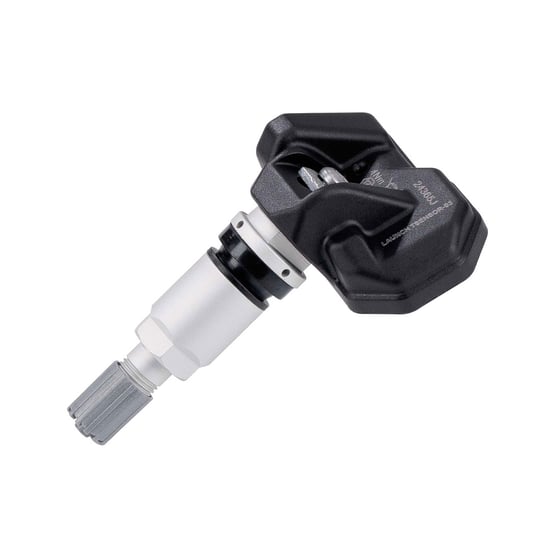

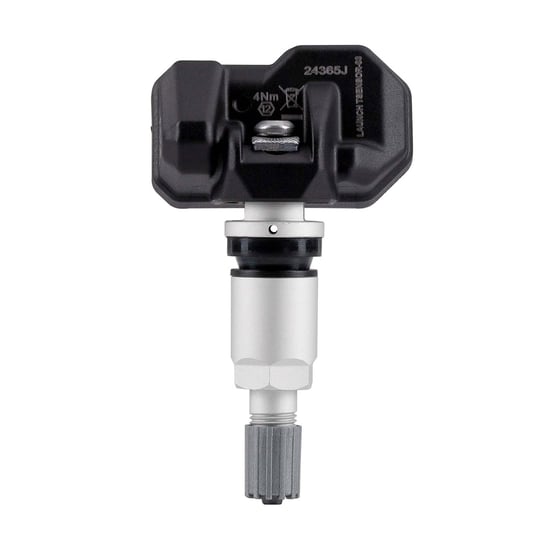

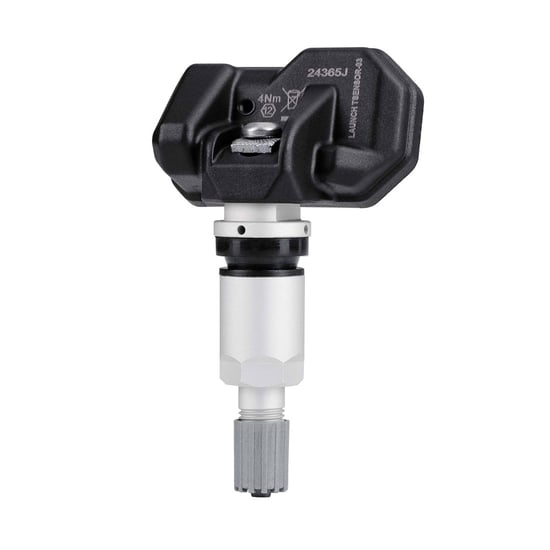

Launch TSENSOR-03 Universal & Programmable TPMS Metal Sensor
Launch TSENSOR-03 is a universal and programmable TPMS metal sensor designed to provide an efficient and reliable solution for workshops performing TPMS repair and replacement services. Supporting both 315MHz and 433MHz frequencies, it delivers OE-level accuracy, durability, and long service life.
Product Details
- Brand: Launch
- Product Number: MK26063
- Sensor Type: Metal TPMS Sensor
- Condition: New
- Weight: 30 g
Key Features
- Compatible with over 99% of OE-level TPMS sensors
- Supports both 315MHz & 433MHz frequencies in one sensor
- Replaces all OE tire pressure sensors and copies original sensor data
- Unlimited reprogramming with LAUNCH TPMS tools
- High-precision automotive-grade chip with accuracy up to 0.1 BAR
- Optimized RF antenna for improved signal transmission
- Over-the-air wireless programming
- Battery life exceeds 4 years
- Compact metal body design for easy installation
Technical Specifications
- Operating Frequency: 315MHz / 433MHz
- Battery Voltage: 3V
- RF Transmitter Power: 5–8 dBm
- Pressure Monitoring Range: 0 – 800 kPa
- Working Temperature: −40°C to 125°C
- Storage Temperature: −40°C to 125°C
- Dimensions: 42.5 × 19.5 × 73 mm
- Sensor Weight: 28 g (Metal)
