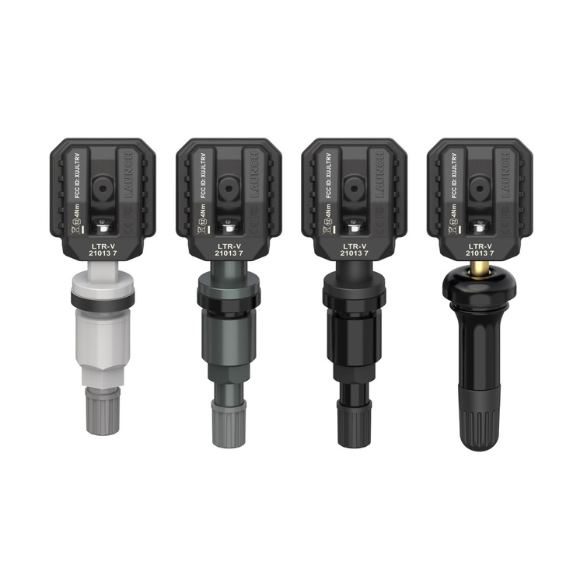

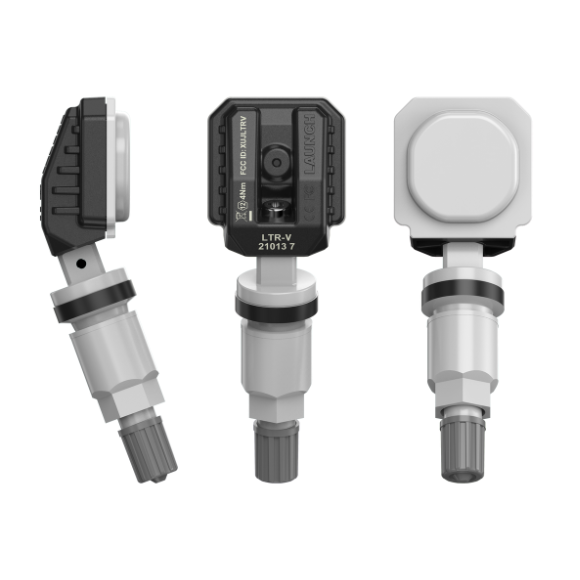

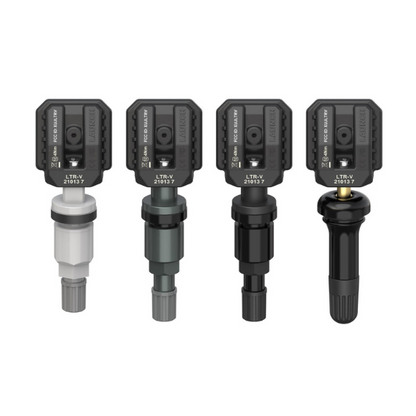

In four colors, the LAUNCH TSENSOR-05 is a programmable universal TPMS sensor that combines 315MHz and 433MHz frequencies. It's reprogrammable via a LAUNCH TPMS tool for unlimited OE sensor replacements. Real-time sensor data, such as pressure and temperature, can be read when the sensor is detected by a LAUNCH TPMS service tool.
Features
- A LAUNCH X-431 scan tool pairs with TSGUN or i-TPMS to carry out TPMS services.
- A standalone TPMS service tool can perform TPMS services directly.
Specifications
| Operating Frequency | 315MHz / 433MHz |
| Battery Voltage | 3.0V |
| RF Transmitter Power | 5~8dBm |
| Storage Temperature | -40℃ ~ 125℃ |
| Working Temperature | -40℃ ~ 125℃ |
| Pressure Monitor Range | 0 ~ 800kPa |
| Pressure Reading Accuracy | ±10kPa |
| Temperature Reading Accuracy | ±5℃ |
| Dimension | 27.2 × 20 × 76.4 mm |
| Weight | 24g |
