TWC-521 provides high performance servicing of automobile and a long service life, helps technicians, dismount and mount tires with automobile wheels rapidly. It is suitable for various types of tires, like Run flat and low-profile types Features: 1. Right Auxiliary arm assist 5A(Optional) 2. Tilt swing arm are...

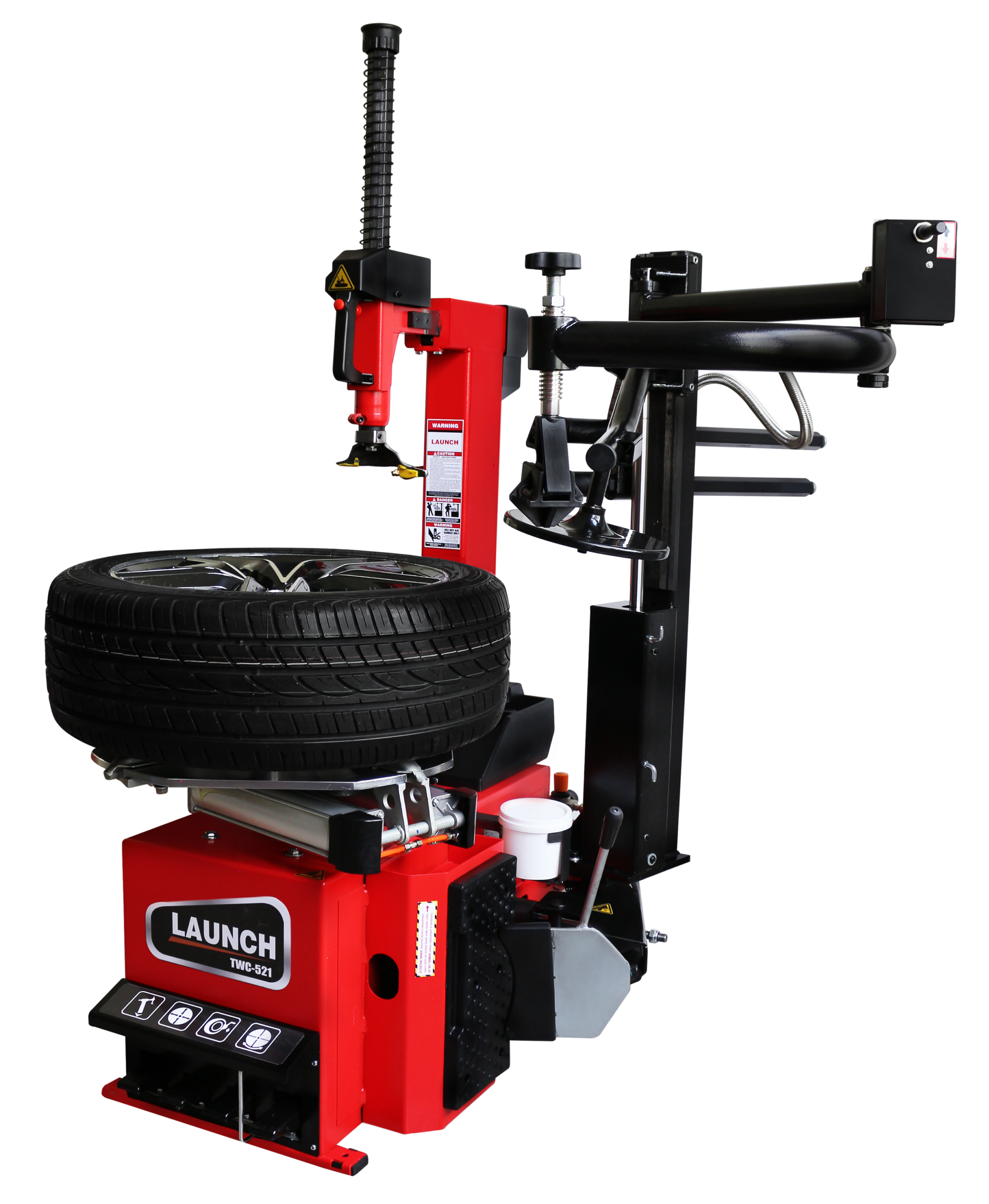

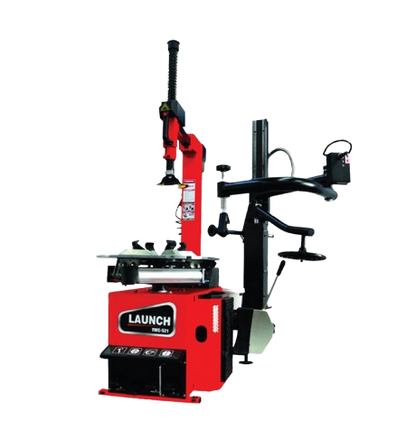

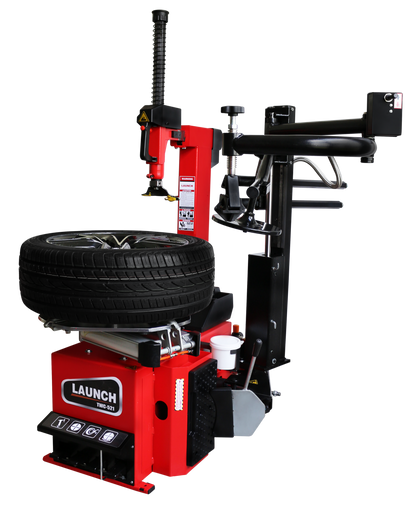

TWC-521 provides high performance servicing of automobile and a long service life, helps technicians, dismount and mount tires with automobile wheels rapidly. It is suitable for various types of tires, like Run flat and low-profile types
Features:
1. Right Auxiliary arm assist 5A(Optional)
2. Tilt swing arm are free to move
3. Update horizontal column with a fully mechanical design
4. Bead breaker cylinder with tower spring
5. Self-centering Working Table
6. All newly design made improvement
7. Launch comprehensive after-service network
Specifications:
Max. Rim Diameter
11-22"
Max Wheel Diameter
1050mm
Max Wheel Width
4-15"
Revolution
6.8/6.8-13.6rpm
Working Pressure
0.8-1MPa
G.W / N.W
292/252kg
Voltage
110V/220V/380V
Package Size
1150*950*980mm
40 HQ Container(sets)
48
TWC-521
Support Arm
This special support arm for the TWC-521 makes tire fitting more effective and safer for both fitter and wheel. To avoid tire and rim damage, a support arm is indispensable during mounting and dismounting.
