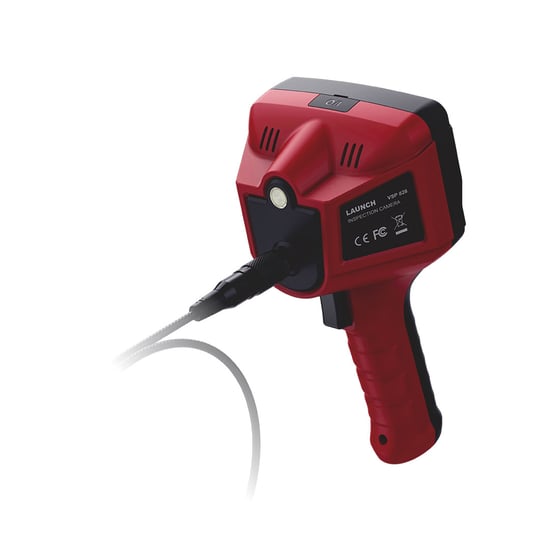

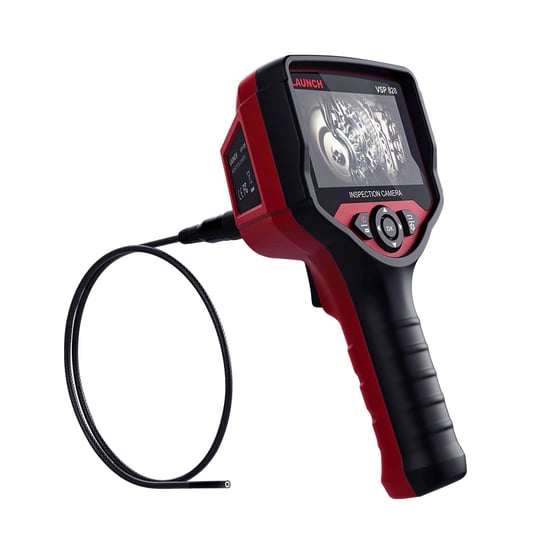

Launch VSP-828 Portable Videoscope

Launch VSP-828 Portable Videoscope Description:
Launch VSP-828 Portable Videoscope is designed for accessing narrow, curved spaces like evaporation boxes, combustion chambers, and three-way catalytic sensors. It captures vivid, clear and multi-angle videos and images, tansferring them to a computer or samrtphone display via a data cable for versatile inspections. Three versions with varing lens tubes are available for your choice.
Diagnostic Tools From Launch with Product Number: MK23277
This Weight Product: 500g

Launch VSP-828 Portable Videoscope Features:


1. Three lens versions for choice:
- Rotating Lens Version(180 degree rotation in two directions)
- Dual-lens Version(Switch between front and side)
- Standard Version(SIngle direction)
2. 4GB built-in storage on mainboard
3. Support for external TF cards up to 32GB
4. Picture taking & audio/video recording supported
5. Flashlight assist function
6. 3 times magnification can be achived
7. 4-gear LED light for adjustment
8. Rotate static image in 4 directions
9. Swirch the image between black-and-white and color
10. High temperature alarm function

Launch VSP-828 Portable Videoscope Specification:


Lens

  Image Sensor
  1/9'' CMOS720PHD

  Frame Rate
  30

  Diameter
  5.5mm(5.5mm single lens tube/dual lens tube/rotating lens tube available)

  Imaging Focal Length
  ＞5.5mm

  Best Imaging Distance
  3-8cm

  Tube Length
  1m(3m or 5m can be customized)

Main Unit

  Display Screen
  TFT display screen

  Display Pixels
  1280*720

  Power Supply
  Built-in 18650 Lithium battery, 3.7V

  TF Card Storage
  32GB(Optional)
