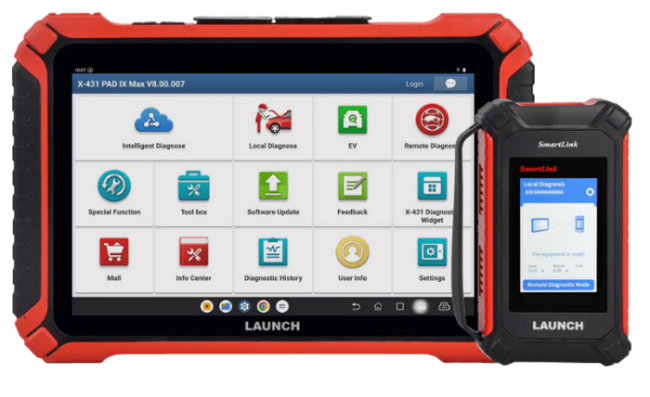

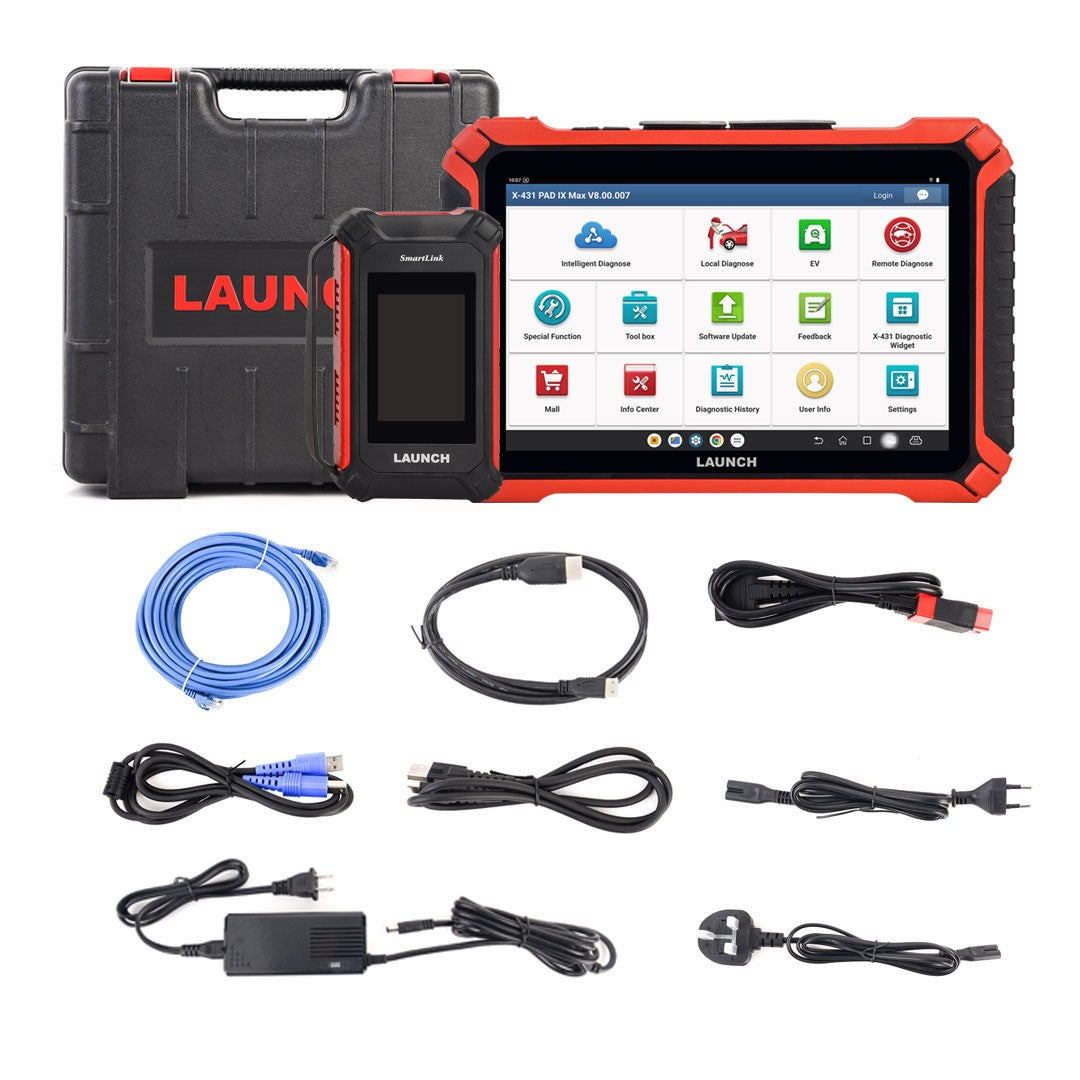

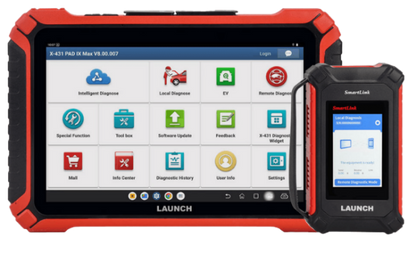

LAUNCH X431 PAD IX Link is a new flagship high-end diagnostic tool from LAUNCH, coming with a new smart VCI-Smart Link C V3.0, which takes more enhanced WIFI communication and more secure connection. The X-431 PAD IX LINK scan tool with multi-channel system scanning speeds up by about 10 times. The auto repair shops can use it to diagnose passenger cars, commercial vehicles, and new energy vehicles on the market.
This Android OS-based, tablet-style diagnostic tool incorporates the best possible coverage of OE-level diagnostics with multitasking capable software. Using the powerful Octa-core 2GHz processor, 12G RAM, and a 13.6” IPS capacitive touch screen with a resolution of 2560 x 1600 dots, it delivers quick and complete diagnostic functionalities which technicians need to diagnose, research and repair vehicles in one solution. It has the following features: Intelligent Diagnose, Local Diagnose, EV (Electric Vehicle) Diagnose & Service, Smart Link Super Remote Diagnose, X431 Remote Diagnose, Service Function, Toolbox, Software Update, Feedback, Online Mall and Diagnostic History etc.
Features:
- Full system vehicle coverage for U.S., Asian and European markets: 150+ passenger cars, 110+ commercial vehicles(optional), and 140+ new energy vehicles(optional), which is continuously getting updated.
- The diagnostic software is available to purchase separately on the 'MALL' as demanded at any time.
- Topology mapping gives a visual checking on DTCs and all systems communication status.
- X-431 FIX diagnostic database providing detailed interactive wiring diagrams and illustrations enables technicians to complete every repairing job.
- Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534.
- Guided function for VW and AUDI.
- The basic functions include reading & clearing DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
- Advanced coding and programming function.
- Optional ADAS calibration function increases more revenue.
- An extended solution to support TPMS service.
- The basic functions include reading & clearing DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
- Build-in repair information and training video modules help to track and fix issues fast.
- Sunlight-readable screen and IP65 waterproof & dustproof.
Specifications:
| Operation System | Android 13.0 |
| CPU | 2.0GHz Octa-core |
| Display | 13.6' touch screen 2560*1600 |
| Memory | 12GB |
| Storage | 512GB |
| Camera | Rear 20MP, Front 8MP |
| Battery | 9360mAh @7.6V/71.1Wh |
| VCI Communication | 2.4 & 5GHz Dual WIFI |
| Interface | Type C, Type A, DC IN, Micro SD, Mini HDMI |
| Working Temperature | 0℃~50℃ |
| Dimension | 377*246*35 mm |

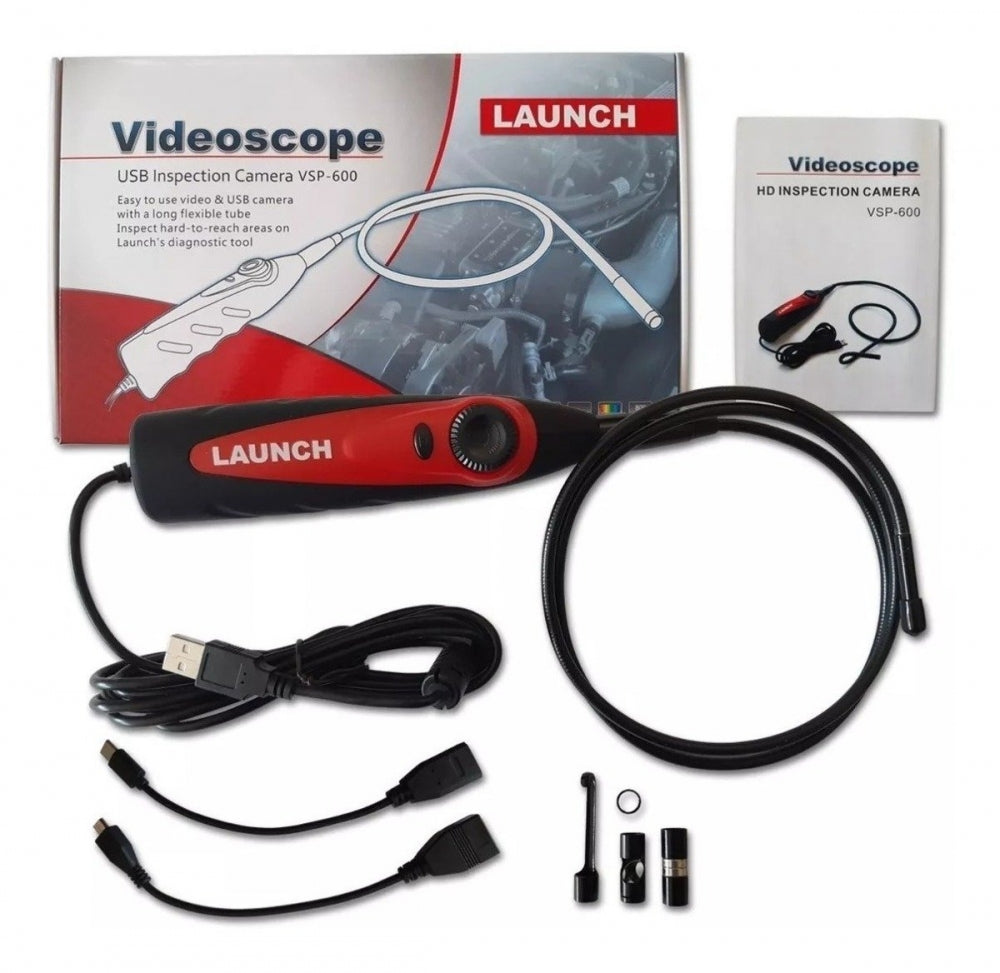

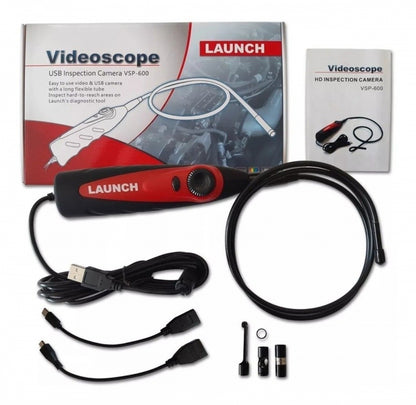

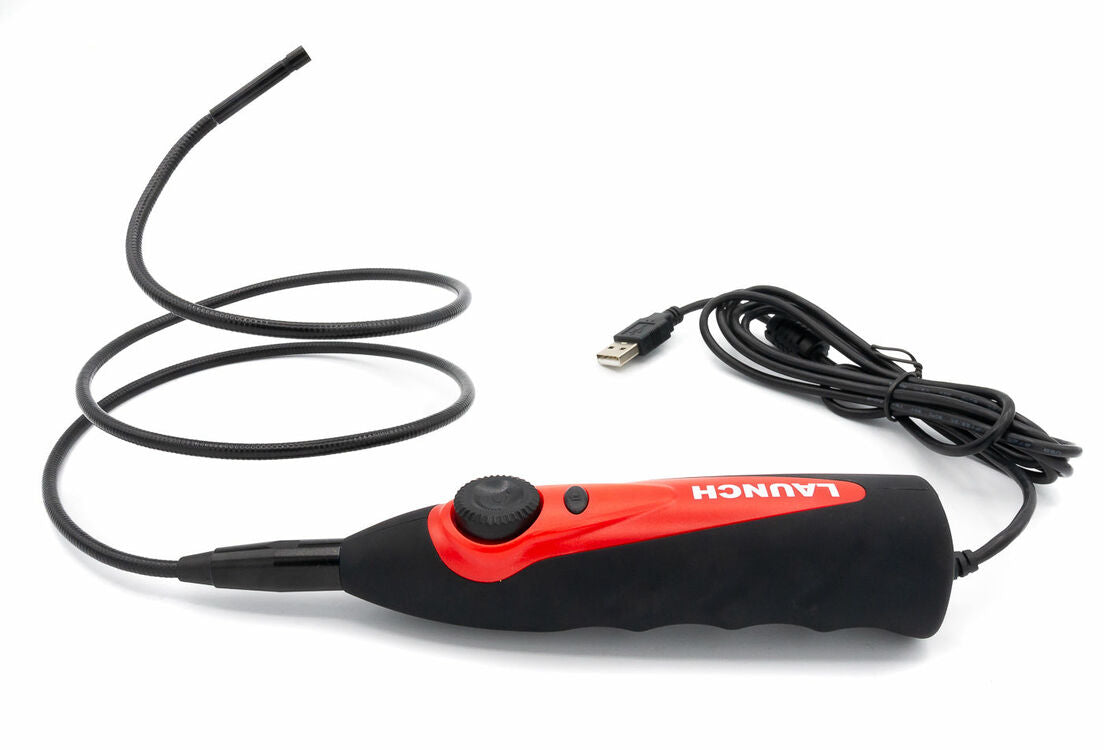

VSP-600 VIDEO SCOPE
VSP-600 helps technicians to check issues on the unreachable areas in a vehicle. With six levels of light strength, technicians can easily adjust brightness according to the environment. It works with LAUNCH X-431 scanners or any Android device and streams live video on it. Technicians can view, record, save images and videos.
Turn X-431 Scan tool into videoscope functionality / Compatible / Affordable / Simple
Features:
- View, record and save images and videos
- Easy to adjust the strength of lights (6 levels)
- View and save images/videos on LAUNCH X-431 scanner
- Vehicle systems include engine, gears, compressors, headers and valves, body components, etc.
- Thin 5.5 mm diameter of the LEN O.D. that can reach most inner structures of vehicles
- Without extensive disassembly of the components
- Cable length is 2M
Specifications:
- LEN O.D.: 5.5 mm
- TUBE O.D.: 4.8 mm
- TUBE LENGTH: 800 mm
- SENSOR SIZE: 1/9”
- RESOLUTION: 1280*720
- OPERATING TEMPERATURE: 0°C~65°C
- POWER SUPPLY: 5V
- USB PORT: USB 2.0 Type C/Micro USB

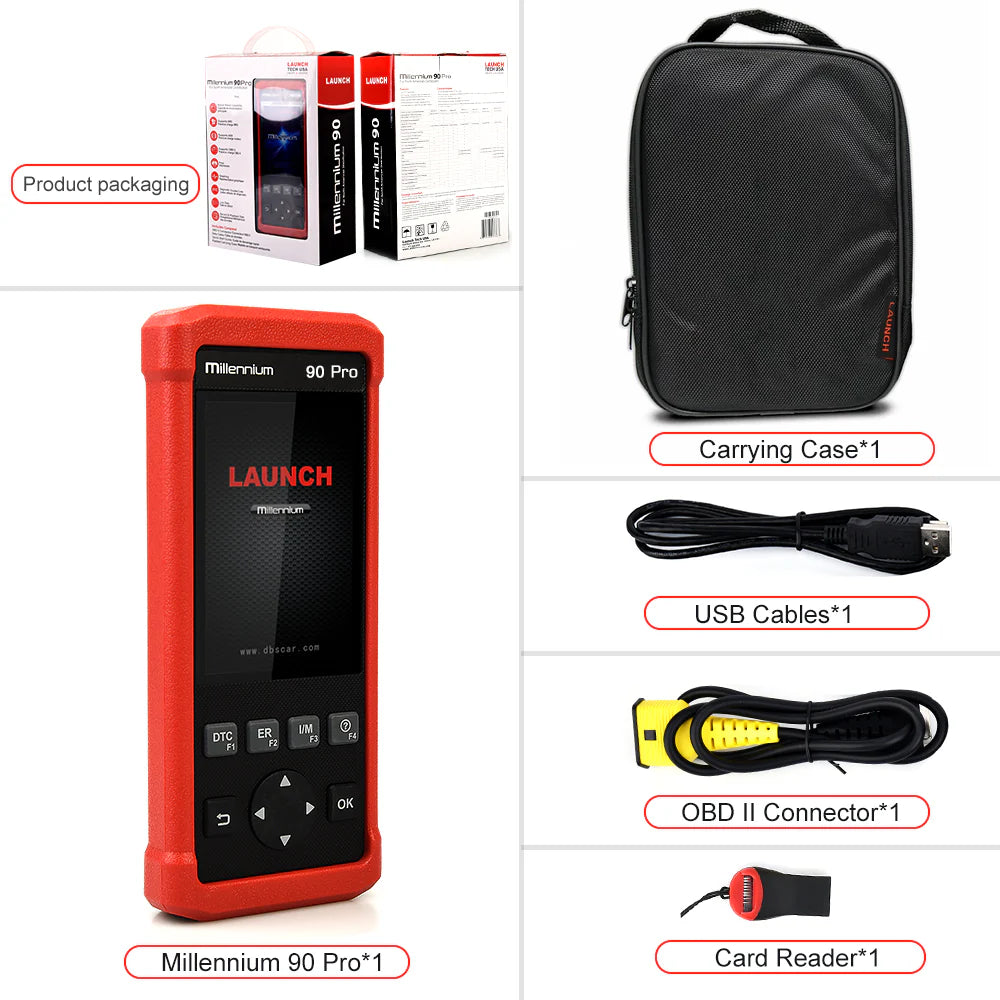

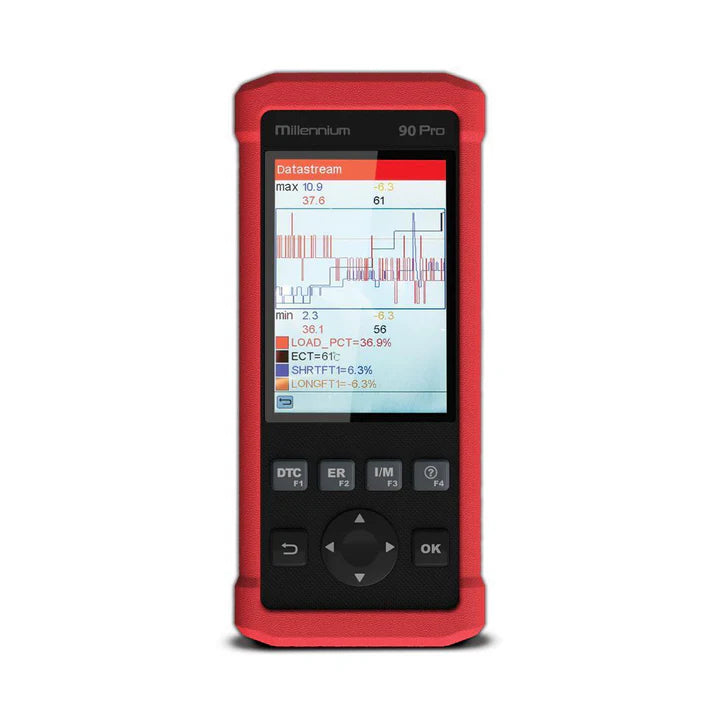

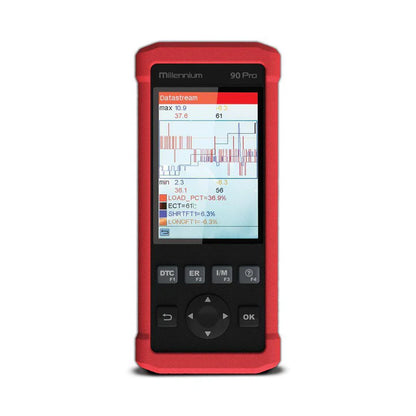

LAUNCH MILLENNIUM 90 PRO
Millennium 90 Pro is a multipurpose code reader. It provides 10 OBDII/EOBD diagnostic modes and special functions including oil reset, brake bleeding, EPB, BMS, DPF, and SAS reset. It also supports live data stream reading for Engine, Automatic Transmission, ABS, and SRS diagnostics to enable complete vehicle detection.
Features:
- Live data stream for Engine, Automatic Transmission, ABS, and SRS
- Full vehicle coverage for domestic, Asian, and European vehicles including gasoline, diesel, and hybrid models from 1996 and newer with OBD2
- Supports Oil Reset, EPB, BMS, DPF, SAS Reset, and ABS Brake Bleeding
- Four-color graphical data display for OBDII engine systems with PC printing and free internet updates
