Launch X431 O2-2 Advanced Scopebox Analyze Data Solving Complex Electrical Faults Works with X431 PAD VII, PAD V, PAD III

Launch X431 O2-2 Advanced Scopebox Description:
New Launch X431 O2-2 Advanced Scopebox Analizador 4 Channel Digital Scopebox Tester USB Port Works with X431 PAD VII, PAD V, PAD III (4 Channels)
Diagnostic Tools From Launch with Product Number: MK23263
This Weight Product: 5500g

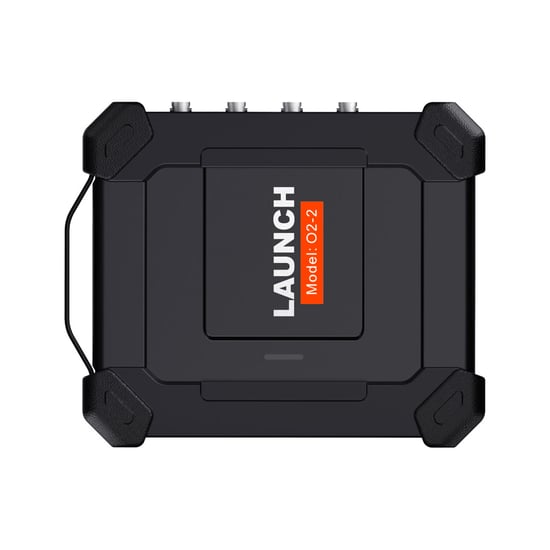

Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool’s functionality.
Launch X431 O2-2 Advanced Scopebox Function:

Provides all kinds of testing applications on automotive parts (including circuits, sensors, actuators, ignition etc.).
Menu Includes the following options:
Measure: It provides 23 parametric measurement items.
Save: It allows you to save the current waveform as a reference waveform for future comparison.
Display: Sets the display mode of the waveform.
UserSetting: The following items are available: storage depth, factory reset, self-adjust (self-calibration), and save & recovery.
About: Displays the detailed information of the app.
Integrate with X-431 series scan tools (such as X431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S , X431 PAD V, X431 PAD VII, X431 IMMO Elite, X431 IMMO PLUS) through the O2-2 application for conclusive diagnostic results.

Launch X431 O2-2 Advanced Scopebox Features :

ECU troubleshooting and Diagnostics
Features the alility to record and palyback high-resolution waveform data for future analysis. One key enable function allows the suers to capture
a particular waveform which makes the process 70% more efficient as compared to other scopes
Access to 23 variants of automatic measurements that  are displayed on one screen for an easy switch
Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency
Buffer memory up to 50M
Use the zoom in/out feature to review precise details
Customizable personal system settings that can be saved as configuration files for viewing
The Self-calibration function allows optimization of the oscillosope signal path for maximum measurement accuracy
Magnifies waveform math operations, such as affition, subtraction, multiplication and FFT function for high level waveform anlysis
Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more
Multi language user interface
USB Sunc data transfer to external devices such as laptoop, tablet, etc..



Launch X431 O2-2 Advanced Scopebox Specification:

Channels
4

Bandwidth
100MHz

Rising Time
3.5ns (typical)

Accuracy
±3%

Input Impedance
1M ±1.5%

Input Type
Single-ended, BNC Connector

Input Coupling
DC, AC

Overload Protection
±200V on single input

Timebase Ranges
1ns~1ks (1 Channel)
1ns~1ks (2 Channels)
1ns~1ks (4 Channels)

Vertical Resolution
8bits

Buffer Memory
10M (for 4 Channels)

Power Interface
USB port, DC IN port

Data Exchange Via
USB

Trigger Mode
Normal, Auto and Single SEQ

Advanced Triggers
Edge, Pulse width


Launch X431 O2-2 Advanced Scopebox Technical Parameters:

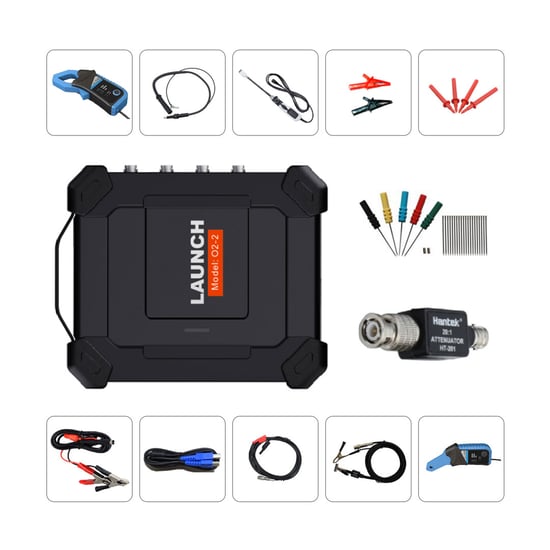

Launch X431 O2-2 Advanced Scopebox Accessories:
20:1 attenuator
BNC test leads: 4 mm
Cable for alligator clips
Alligator clips
Secondary ignition starter
Multimeter probes
Rear probe pin assembly
USB cable

Detailed Comparison Between Launch O2-2 Scope Box and Launch O2-1 Scope Box

Model
O2-1
O2-2

Channel
4
4

Bandwith
100MHz
100MHz

Rise Time
≤3.5ns(typical)
≤3.5ns

Maximum sampling rate
1Gbps(for four channels)
1Gbps

Input resistance
1MΩ±1.5%
1MΩ±1.5%

Storage depth
50M
10M

Number of sampling bits
8bit
8bit

vertical accuracy
3%
3%

Vertical gear
5mV~10V
5mV~10V

Inverting
Support
Support

Channel coupled
DC, AC
DC, AC

Time base gear
5ns~1ks
1ns-1ks

Time base accuracy
20ppm
20ppm

Sampling mode
Normal
Normal

CANBus decoding
CAN, LIN
CAN, LIN

Trigger type
Edge, Pulse width
Edge, Pulse width

Trigger mode
Normal, Auto and Single SEQ
Normal, Auto and Single SEQ

Trigger coupling
DC, Noise rejection
DC, Noise rejection

Math
Double waveFFT
Double waveFFT

Display
YT、Zoom、Roll
YT、Zoom、Roll

Roll mode
200ms/div~1000s/div
200ms/div~1000s/div

Auto configuration
Support
Support

Auto measurement
23
23

Cursor
Horizontal cursor, Vertical cursor
Horizontal cursor, Vertical cursor

Powered by
USB port, DC IN port
USB port, DC IN port

Data transmission method
USB
USB

Vehicle configuration options
Circuits, sensor, actuators, ignition
Circuits, sensor, actuators, ignition

Operating temperature
0℃~50℃
0℃~50℃

Power supply range
USB:5V/1A
DC:12V/24V
USB:5V/1A
DC:12V/24V

Compatibility
Different tablet resolutions require different APPs
One APP can be compatible with multiple tablet resolutions

Multi-touch gestures
No
Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally

Vehicle configuration
No
Each test project can support online help documentation (help documentation will be compiled according to needs later)

Firmware upgrade
Manual upgrade
Support online upgrade

Trigger
Waveform observation cannot be expanded during normal trigger waiting.
Can be used normally during normal trigger waiting.

Demo function
No
Yes

Split-screen
No
Yes

Sampling rate
Single channel 1G/s, more than 2 channels only 250M/s
Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s

Start time
2-3S
about 16s

Power consumption
about 6W
about 7.5W

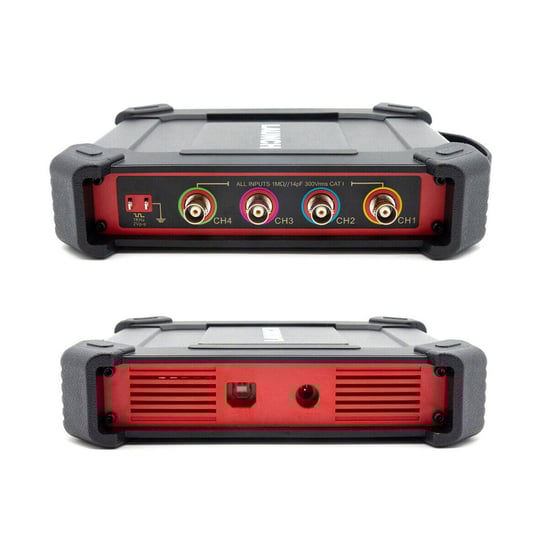

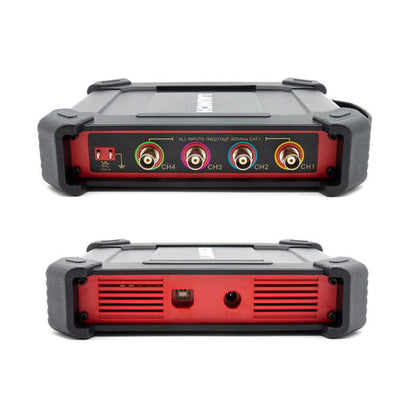

How to Connect Launch X431 O2-2 Advanced Scopebox Cables?
Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):
First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).
Note: * PADVII series tablets support USB power supply.
2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

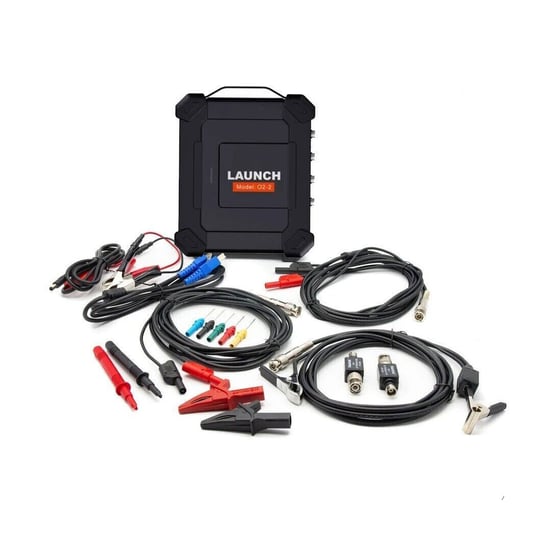

Launch X431 O2-2 Advanced Scopebox Package Includes:
1pc x Launch O2-2 main unit
4pcs x HT 30 test lines
1pc x HT25 secondary ignition pick-up line
1pc x battery clip cable
1pc x USB cable
2pcs x HT201 attenuator
20pcs x piercing needles
2 pairs x multimeter probes
2 pairs x crocodile clips
5pcs x colored 4 female probes
4pcs x clipper fuses(5*20mm)
2pcs x screw head
1pc x user manual
1pc x color label
1pc x packing list
