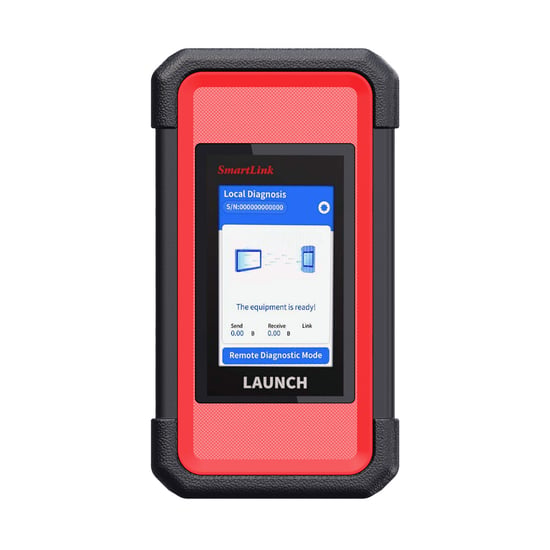

Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )

Launch X431 SmartLink C V2.0 Description:
The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink C user, as a SmartLink Service Subscriber, can submit remote repair orders to vehicle repair companies (SmartLink B, the SmartLink Service Provider) via SmartLink Service Platform. The SmartLink C applies to vehicles that comply with CAN/ DoIP/ CAN FD/ J2534 diagnostic protocol standard.
Diagnostic Tools From Launch with Product Number: MK23272
This Weight Product: 4100g

Note: Activation Card Required
Ip Restriction (works only in Middle East and Africa Except South Africa )

The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform. The SmartLink B applies to vehicles that comply with CAN/ DoIP/ CAN FD/ J2534 diagnostic protocol standard.
The SmartLink B system consists of the following two parts:

SmartLink Service Platform – For binding the SmartLink B dongles and accepting the remote repair orders.
SmartLink B Dongle – Works with the compatible diagnostic tool to perform diagnosis of the vehicle connected to the SmartLink C dongle.


Launch X431 SmartLink C V2.0 Features

Compatible with LAUNCH tools, OE tools or any other diagnostic tools
SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform


SRDs SmartLink:
Super Remote Diagnosis Solution:
SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.
The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.
The remote diagnosis will be carried out on the SmartLink platform.
Click on the link to be redirected to Launch SmartLink C  for more info.

Launch X431 SmartLink C V2.0 Technical Parameters

3.97“ Single-Touch Screen, 320 x 480
Working Voltage: DC 9V ~ 36V
Communication method: Ethernet

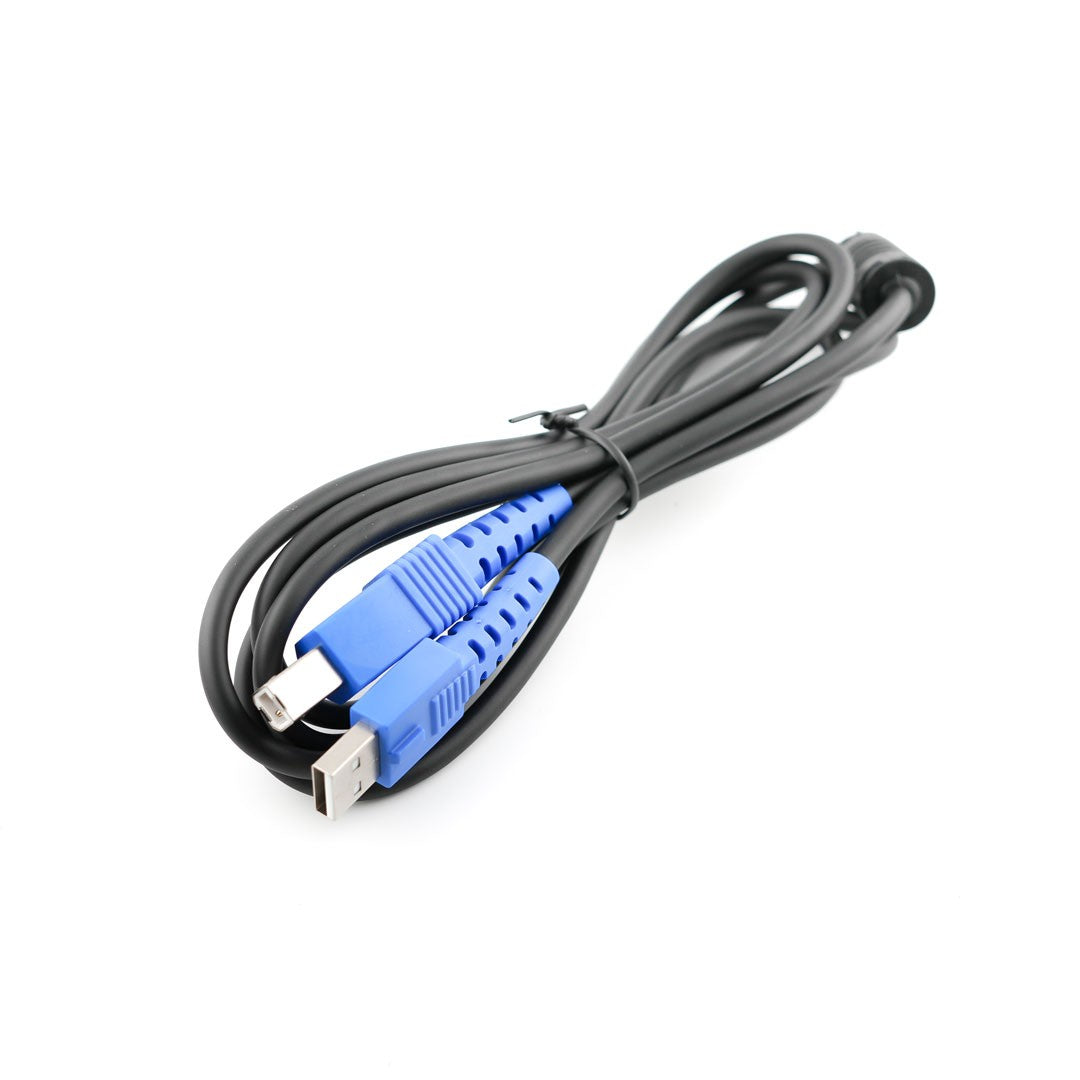

Type B USB 2.0
Storage: 8GB
Memory: 256M
Power Consumption: < 6W
Working temperature: -10°C ~ 50°C
Storage temperature: -20°C ~ 60°C
Storage humidity: 10% ~ 90%
Dimension: 204 x 110 x 45 mm

Launch X431 SmartLink C V2.0 Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with the internet browser.
SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.
