FEATURES

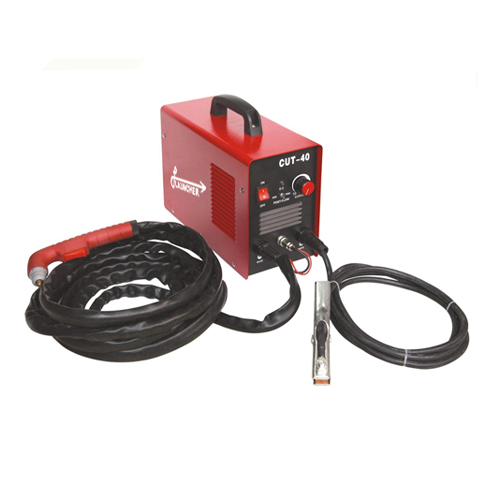

- LAUNCHER CUT 40 CUTTER WELDER are made by international most advantaged invert technology .
- 50Hz/60Hz frequency is inverted to high frequency (frequency is over 100KHz) by V-MOSFET, then reduce voltage and commute current, inverter power supply generates powerful DC welding current through PWM technology.
- Because inverter technology of switch power is used, volume and weight of main transformer has reduced substantially and efficiency has been increased by 30%.
- Piloting arc system can strike arc easily with principle of high frequency oscillation.
- It has functions that it can supply gas ahead and turn off gas delayed.
- Cutting machine characteristics 1. stabilizing. 2. Reliability. 3. Lightness. 4. Energy-saving and no noise. 5. High cutting speed. 6. Cutting smoothly and no polish demands
- Cutting machine can be used widely; it is suitable for cutting stainless Steel, alloy steel, mild steel, copper and other color metal materials
Specifications:
- Power voltage: Single phase 220V
- Rated input power: 6.6 (KVA)
- No-load voltage: 230 V
- Rated input current: 30 A
- Rated output voltage : 96 V
- Duty cycle: 60%
- Pilot arc model: HF oscillating
- Burner inter diameter: 1.0 mm
- Pressure of air compressor: 4-5 Kg
- Thickness: 1-12 mm
- Weight: 9Kg
- Dimensions: 371 * 153 * 232 mm
