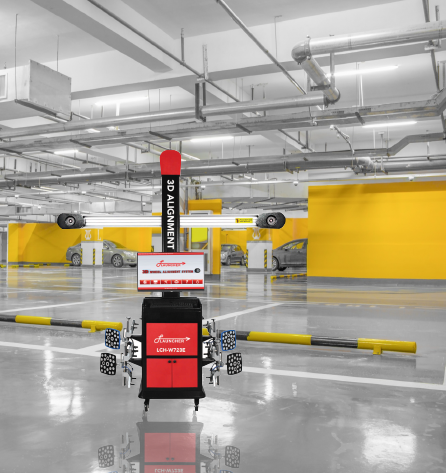

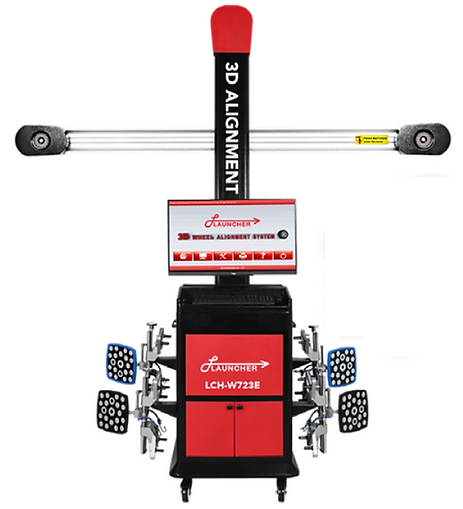

LAUNCHER LCH-W723E - Enhanced 3D Wheel Aligner
The 3D Wheel Aligner features all-new three-dimension computer visual measurement - an adopted high-performance camera to automatically detect the alignment parameter. The equipment is pre-calibrated at production and thus does not need on-site calibration at installation.
LAUNCHER's 3D series wheel alignment system is for testing wheel parameters and providing references for manufacturer specs. By comparing the two sets of parameters, operators can adjust the vehicle wheel parameters to a reasonable range, ensure the vehicle wheels are in good condition, and avoid unreasonable wear and tear.
Now Supporting Hybrid & Electric Vehicles
- Includes 1 set of exotic vehicle huggers
- Bigger monitor, clearer distance view
- Lighter beam for smoother mobility
- Enhanced cabinet with bigger capacity
- Developed smart cameras with reduced reflection
- 4MP camera wider detection range for extended size vehicles
- Works on all types of hoists including 2 post hoists
- Dynamic constitute coordinate (DCC), non-horizontal test platform
- Movable from Bay to Bay
- One foot distance run out compensation.
- Rolling distance for alignment run out compensation (20°-28°)
- Adopted Smart Tracking Camera (STC)
- Wheelbase, offset track and diagonal offset measurements
- Includes 2 Years software updates
- Time saving & fast-reading during rolling or caster swing
- Calibrated at production, does not need on-site calibration at installation
- No electric component or wiring on the target
- Extended vehicle wheelbase testing
- Extremely simplified test procedure.
- Complete parameter measurement: Capable of test of front/ rear toe-in, front/rear camber, thrust angle, caster, SAl/Kingpin, wheelbase, track (thread) etc
- Large OEM database: More than 20000 records of vehicle of all makes
- Data history storage for client management
- Supports Hybrid & Electric vehicles

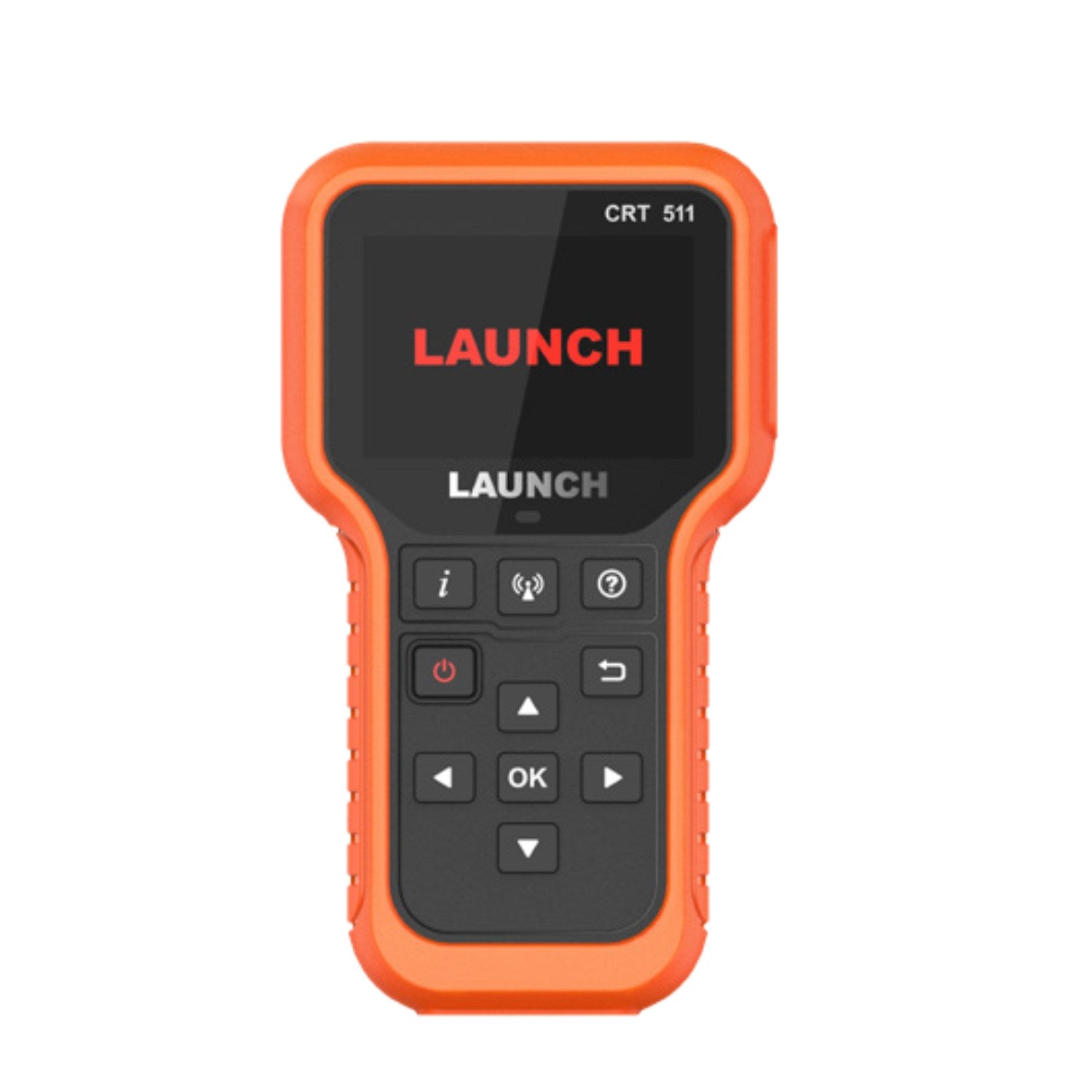

LAUNCH CRT-511
CRT-511 is a powerful and versatile tool offers 98% coverage of global vehicles with tire pressure system. It is ideal for repair shops or tire shops to easily and accurately find and diagnose the faulty tire pressure sensor, read tire sensor status, read and clear tire pressure DTCs, and reset, relearn and reprogram TPMS sensors.
LAUNCH CRT-511 PRO includes 8 sensors (4 Rubber + 4 Metal)
Sensor replenishment packages:
Features:
- Covers over 98% of global vehicles with tire pressure system
- Activate and match with all 315 MHz/ 433 MHz tire pressure sensors
- Reset, relearn and reprogram tire pressure sensors fast
- Diagnose the tire pressure issues, read and clear tire pressure DTCs
- Reprogramming LAUNCH sensors with unlimited times
- Read tire pressure, tire temperature, and battery status accurately
- Reprogram up to 8 sensors at one time
- Built-in learning tutorial for easy operation
- Multiple ID generation methods: Manual creation, Copy ID, Automatic creation
- OBD II / EOBD functions included
- 4 Rubber Sensors (PRO version only)
- 4 Metal Sensors (PRO version only)
Specifications:
- Display: 3.5 inch
- Resolution: 320*480 Pixel
- Battery: 3100 mAh
- Input Voltage: DC 5V
- Working Temperature: -20℃～70℃
- Storage Temperature: -20℃～70℃
- Size: 200*115*35 mm

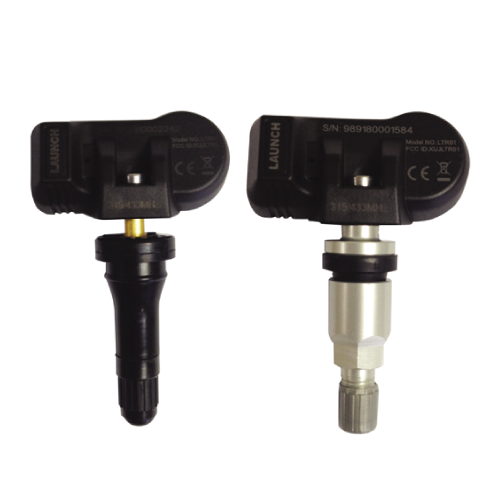

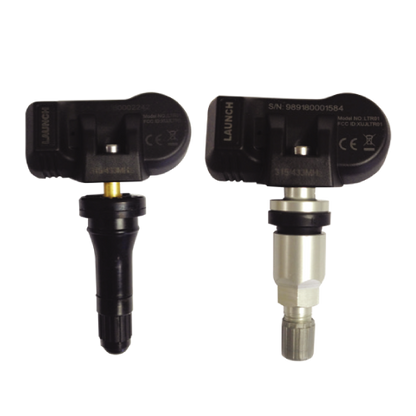

TPMS 20 Sensors
- Cover more than 95% OE Replacement sensors
- Multi-Band Protocols 433/315MHz frequency bands are compatible
- 3-5 years of battery life
- Unlimited programmability
- Touchless programming
- Supports multiple sensors programming at the same time (for V3.1 only)
- Available in Rubber and Metal
