Home LCH-BL001

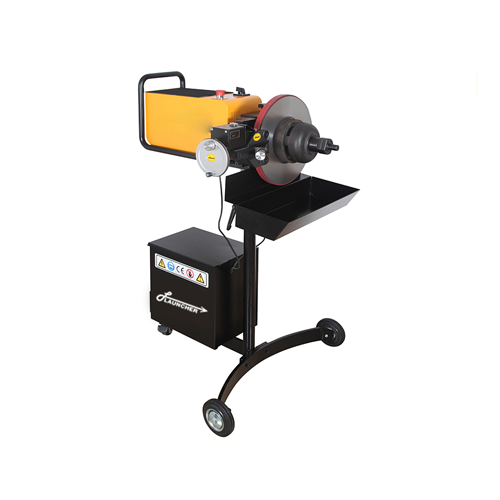

DUAL FUNCTION BRAKE DISC LATHE
Prev

Next

LCH-BL001 <br>DUAL FUNCTION BRAKE DISC LATHE
LCH-BL001 <br>DUAL FUNCTION BRAKE DISC LATHE
LCH-BL001 <br>DUAL FUNCTION BRAKE DISC LATHE
LCH-BL001 <br>DUAL FUNCTION BRAKE DISC LATHE

LCH-BL001
DUAL FUNCTION BRAKE DISC LATHE

Features Multi-function disk brake-lathe by LAUNCHER simultaneously equipped with vehicle mounted type and separated type. You can use separated type brake lathe for the disk that is easy to detach, while vehicle-mounted type brake lathe for the disk that is hard to detach. BL-001 is the economic and highly capable...

image/svg+xml

WORLDWIDE SHIPPING

FREE 60-DAY RETURNS

24 MONTH WARRANTY

100% SECRUE CHECKOUT

Features

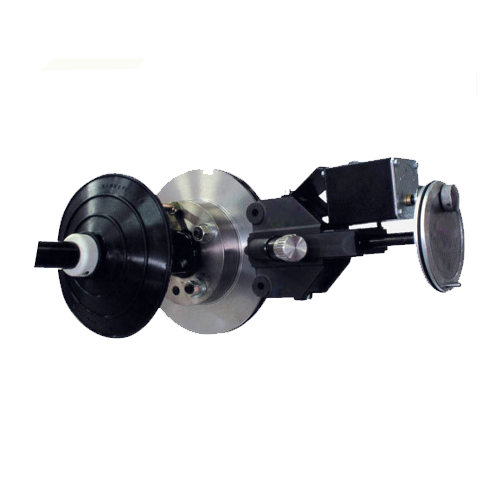

  1. Multi-function disk brake-lathe by LAUNCHER simultaneously equipped with vehicle mounted type and separated type. You can use separated type brake lathe for the disk that is easy to detach, while vehicle-mounted type brake lathe for the disk that is hard to detach.
  2. BL-001 is the economic and highly capable  break-lathe to meet requirement.

DRUM BRAKE LATHE ACCESSORIES AVAILABLE

Specifications:

  1. Decelerate motor voltage:  220/110V -50/60 HZ
  2. Decelerate motor power:   400w
  3. Circumrotate rate:  120rpm
  4. Bracket height:  380-1200mm
  5. Maximum diameter of brake disc: 380mm
  6. Maximum thickness of brake disc: 40mm
  7. Cutting accuracy of brake disc:  <0.02
  8. Feed rate:  8.5mm/min
  9. Ambient temperature range:  -20⁰C to 40⁰C
  10. Weight:  120Kg
