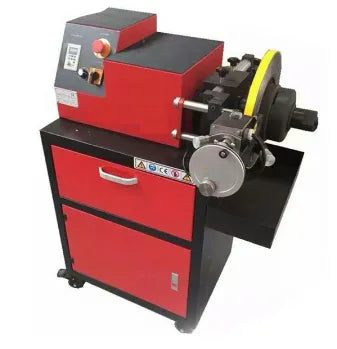

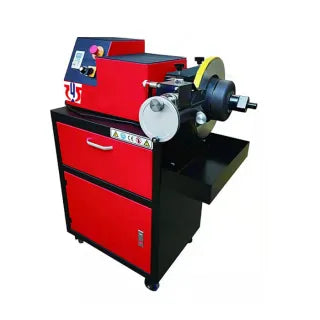

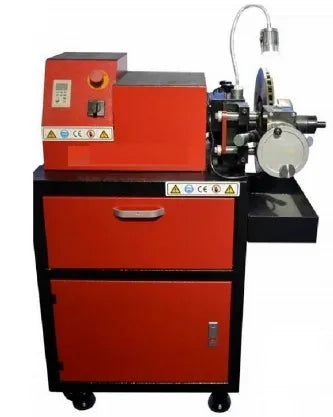

LCH-BL006 - BRAKE DISC MACHINE

Brake Disc Machine is a kind of car disc cutting and skimming machine, suitable for cars, SUVs and refitted vehicles and can work on discs with holes, grooves and locks. Iron cast machine body goes through liquid nitrogen cold and hot treatment, which makes it strong and solid and easier...

Out Of Stock
Brake Disc Machine is a kind of car disc cutting and skimming machine, suitable for cars, SUVs and refitted vehicles and can work on discs with holes, grooves and locks. Iron cast machine body goes through liquid nitrogen cold and hot treatment, which makes it strong and solid and easier for work.

Features:

1. Working precision can reach as high as 0.01mm.

2. Simultaneously machines parallel sides of the disc to eliminate the run-out problems.

3. Working speed can keep at stable of 150rpm, with noise level no more than 50 db.

4. Simple design and ergonomic controls are designed for minimal operator movement.

Specifications

Disc biggest Diameter

500mm

Motor/Reduction Motor Power

110v/220v  50/60Hz, 400W

Disc biggest Thickness

40mm

Spindle Revolution

0-200RPM

Disc Precision

≤0.01mm

Working Temperature

-20℃-40℃

Desk Height

1200mm

Weight

138kg



Product Details

  1. A Set of Standard Adapters

    Full automatic Car brake disc lathe



Disc Lathe 1 Spring 1
Clamp(112mm) 1 Brush 1
Clamp(130mm) 1 Spanner(47mm) 1
Clamp(150mm) 1 Spanner(16mm) 1
Taper Cone(46-78mm) 1 Screwdriver 1
Taper Cone(56-98mm) 1 Hexagon Key(M6) 1
Taper Cone(75-123mm) 1 Screw Nut 1
Silencing Belt(15mm) 1 Screw 8
Silencing Belt(20mm) 1 Nut Gasket 2
Lamp 1


2. Twin Cutter

    Cutting Rotor Lathe

  3. Cutting Disc

  Brake Disc Repair

  4. Dial Indicator

  Full automatic Car brake disc lathe
