FEATURES

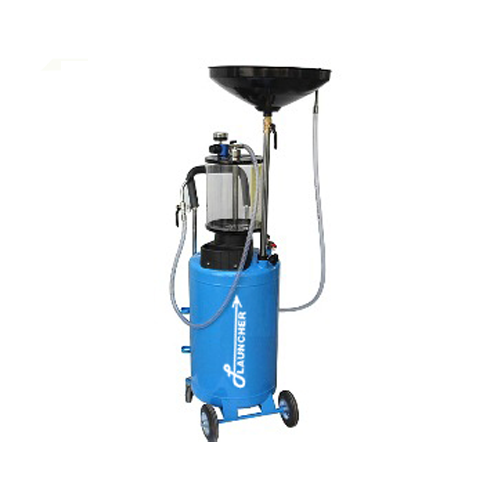

The Air Operated Oil Drainning & Collector by LAUNCHER is using compressed air as power source, it's suitable to use i the Workplace of anti-explosion
- Excellent sealing property with reliable functions of collecting and drainning oil.
- The extending rod has two joints for adjust, much easier for operating.
- Measuring cup with strong material and anti-corrosion.
- The special design of eccentric oil pan makes the scop of collecting machine larger than before.
- Oil drain pressure: 1bar
- Automobile dawdle: 200L/min
- Tank capacity: 70L
- Amount cup: 10L
- Tray: 10L(max temperature suction oil<80°C)
- Operation pressure: 7-8bar
- Vacuum degree: 0-0.8bar
- Length of oil drain pipe: 1.5m
- Length of suction pipe: 1.5m
- Dimension(tank): 550*480*865 mm
- Chamber: 260*260*505 mm
- Tray: 460*460*195 mm
- G.W//N.W 31.8/26.2Kg
