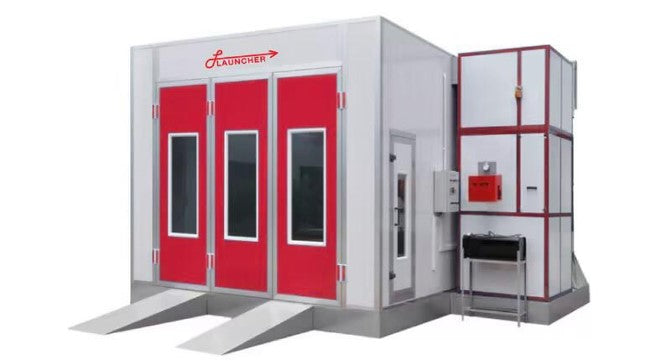

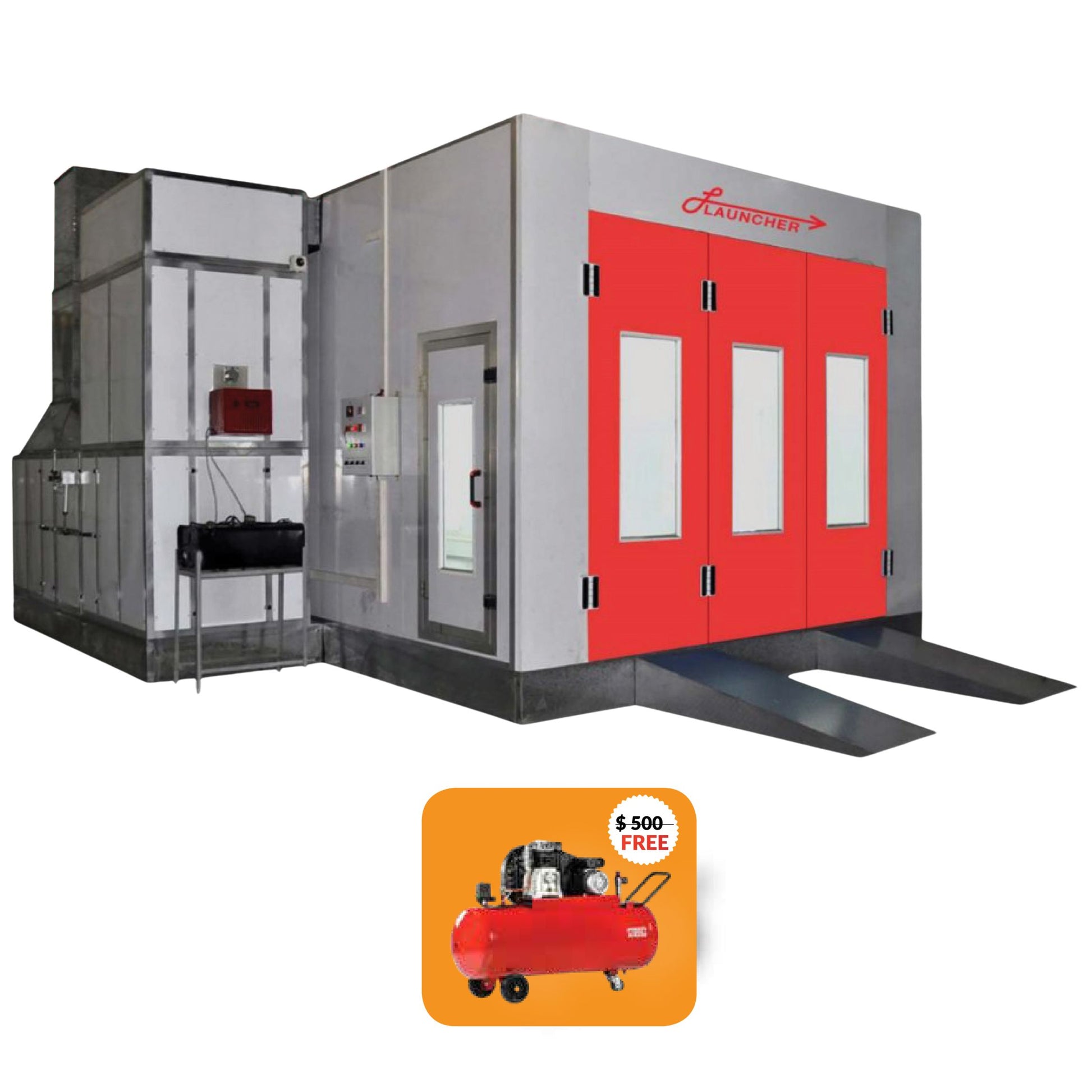

LAUNCHER Paint Booth is a customizable high efficiency, cost-effective paint booth providing the highest quality solution for painting automotive vehicles and parts. Excellent lighting and over spray capture generate flawless paint finishes and increased productivity.

Specifications:

·       Body room Size:
Inside Dimension: 6900×3900×2700mm

·       Outside Dimension: 7000×(4000+1050)×3530mm, Tongue and groove
structure, Edge cover

·       Basement and Floor Galvanized steel assemble

·       Driving Ramp 2pcs

·       Personal door 1 fold with sight window, pressure lock; aluminum alloy door
frame

·       Main door 3 fold with square sight windows, color of main door will be red

·       Heating system: Frame Sheet metal forming with powder spray process

·       Intake fan 2*4KW centrifugal fan, air capacity: 25000M2/hour, room speed
0.25-0.35M/S. Air change times: 280Time/hour

·       Exhaust fan 1*4KW centrifugal fan

·       Exhaust pipe 1PCS 4m straight pipe; 1PCS 90°elbow; 1PCS 45°intake elbow
with bird net; European flange, Smoke venting pipe 1PCS 4m straight pipe;
2PCS small elbow.

·       Air damper Cylinder and connecting rod driving system

·       Burner RIELLO/G20 oil burner; made in Italy; heat productivity: 200000Kcal/h;
Oil consumption: 6—8kg/set

·       Heat exchanger

·       Filter system: Ceiling filter 3SET filter

·       Floor filter 2SET / Pre-filter 1PC

·       Lighting system: Ceiling light 8 units×4pcs×24W LED tube, LUX>800. Light
box use white painting galvanized board bending
