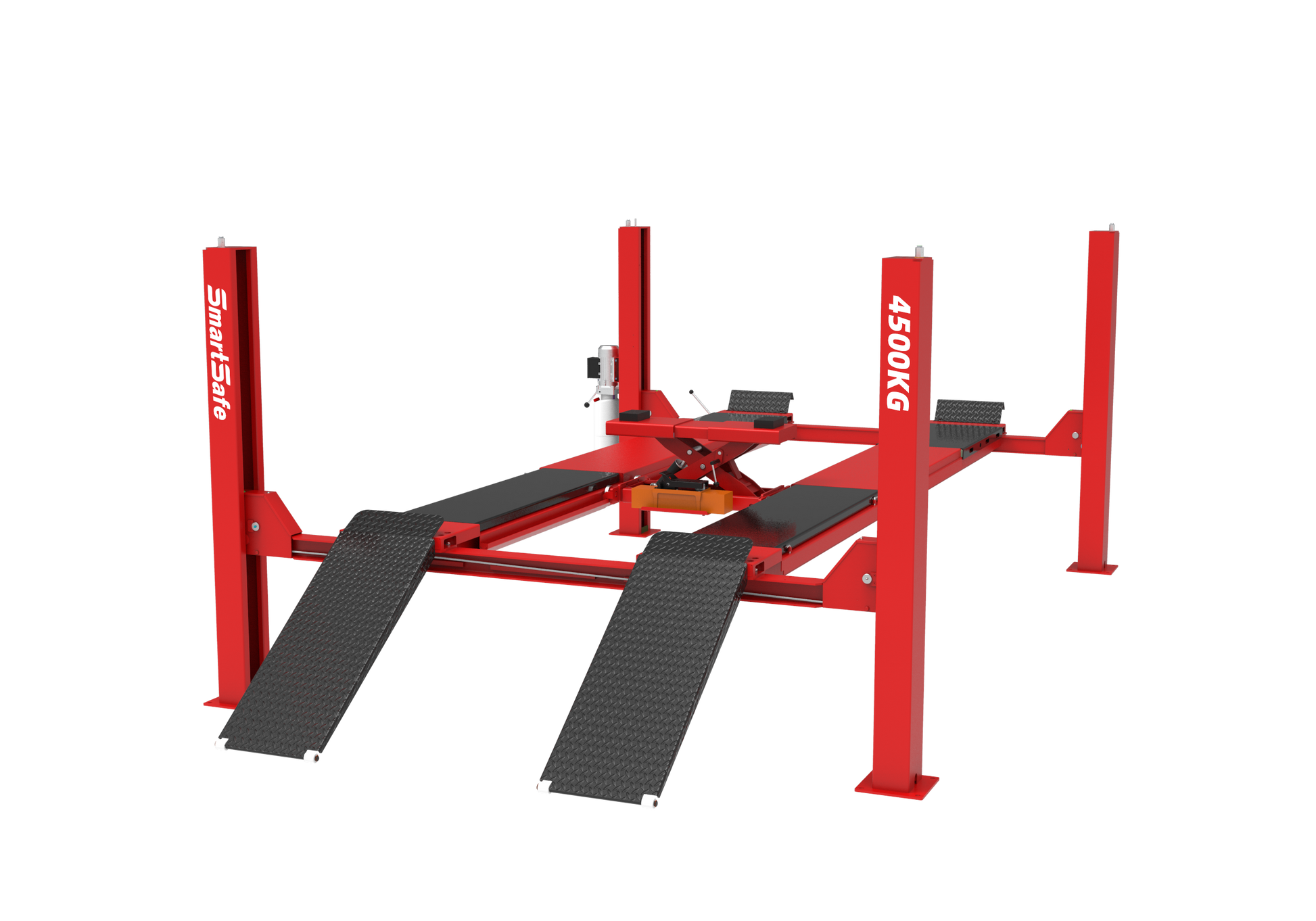

LT445 is a fully automatic control insurance wheel alignment four post lift, equipped with an electronically controlled pneumatic
insurance device.
Features
- The oil cylinder parts are processed by high-speed fully automatic CNC lathes. It ensures excellent concentricity and smoothness, and the cylinder barrel is rolled and mirrored;
- Electro-hydraulic system, wire rope transmission, enlarged oil cylinder for smooth lifting and lowering;
- Shot blasting surface treatment, high-temperature spray treatment, and durability guaranteed;
- Four-sided wire rope balance, very suitable for four-wheel alignment;
- Fully automatic control of pneumatic unlocking belt detection.
Parameters
| Power Supply | 220V/380V | Inner Distance of Runway | 904~1040mm |
| Main Unit Rated Lifting Weight | 4500kg | Net Weight | 1358kg |
| Trolley Rated Lifting Weight | 2000kg | Power | 2.2kw |
| Initial Height | 210mm | Drive Mode | Electro-hydraulic |
| Main Lift Lifting Height | 1800mm | Hydraulic Oil | 10L 46# Anti-wear hydraulic oil (self-purchase) |
| Jacking Beam Rise | 480mm | Air Pressure | 6~8bar |
| Platform Length | 4780mm | Working Temperature | 5~40℃ |
| Distance Between Columns | 3000mm |
