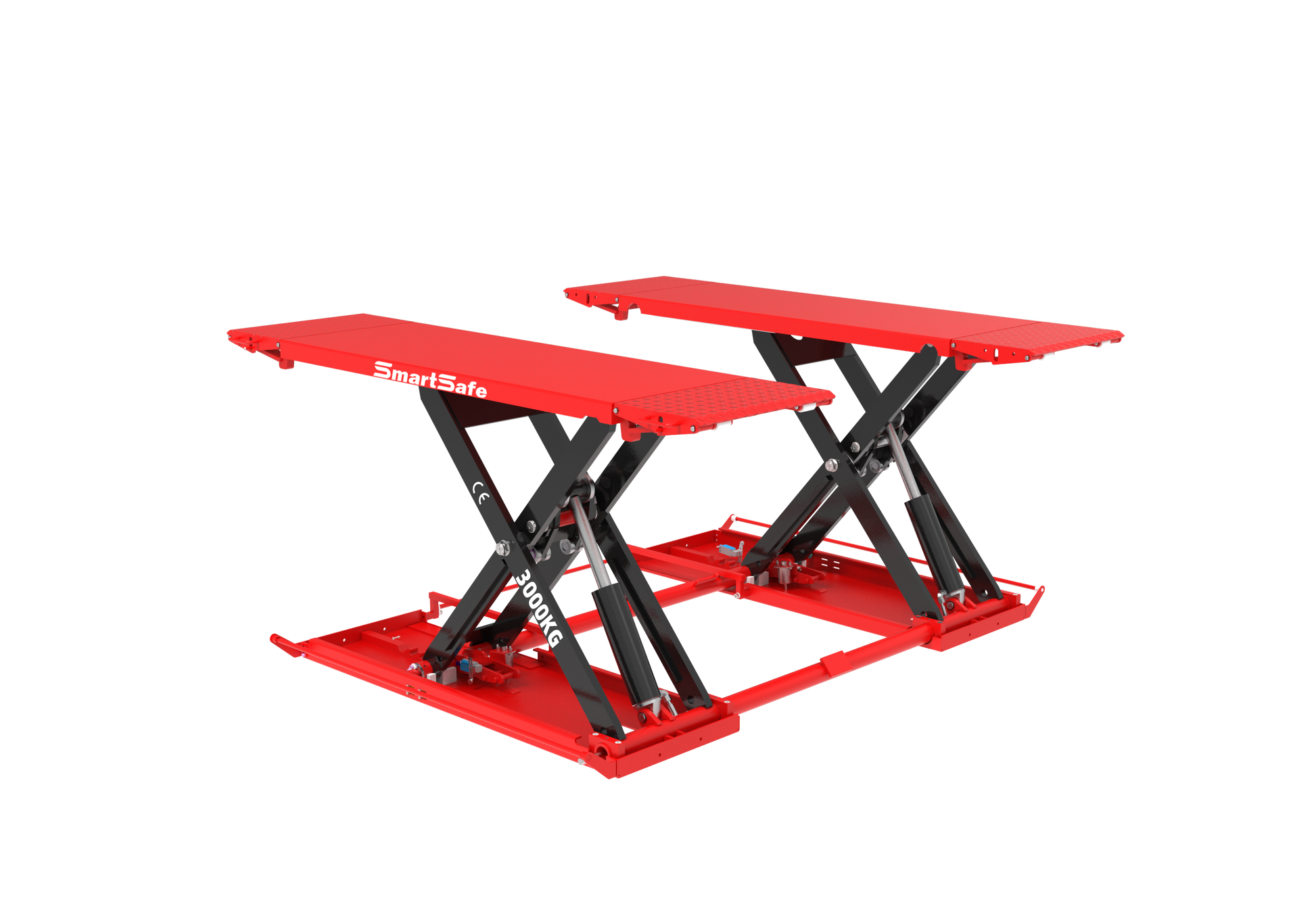

LT630T is a mobile scissor lift with a lifting capacity of 3000kg without installation.
Features
- Small size and light weight, no need to install and fix with the ground, easy to move, can be used in multiple positions;
- Ultra-slim structure design, easy to operate in narrow or limited working area;
- The mechanical lock device automatically locks when rising, and is unlocked by pneumatic when falling, safe and reliable;
- Equipped with control system and operation panel, can realize precise height adjustment and lifting control, providing convenient and precise operation experience.
Parameters
| power supply | 220V/380V | Container loading quantity | 20GP-24pcs/40HQ-48pcs |
| Rated lifting weight | 3000kg | Motor power | 3kw |
| Initial height | 102mm | Driving method | Electro-hydraulic |
| Lifting height | 1000mm | hydraulic oil | 46#Anti-wear hydraulic oil 6 litres |
| Platform length | 1420-2015mm | gas pressure | 6-8bar |
| Platform width | 520mm | operating temperature | 5-40℃ |
| Net weight | 600kg |
