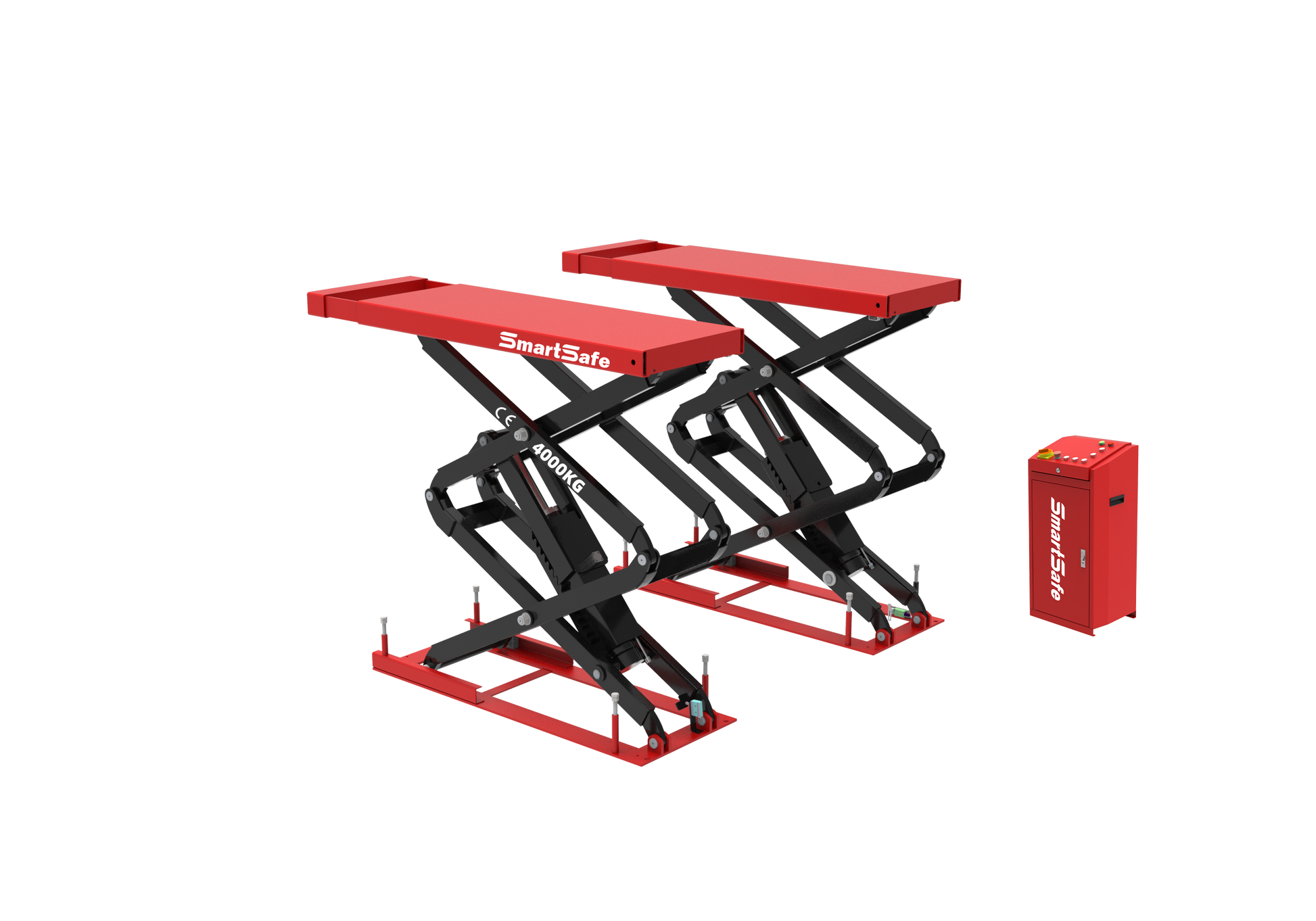

LT640T is an ultra-thin flatbed lift that can be installed on the ground. It has a lifting capacity of 4.0 tons and is suitable for rapid maintenance, tire replacement and other workstations.
Features
- Hydraulic synchronization, hydraulic lock and mechanical double safety device, automatically unlocking when lowered;
- 24V safety control circuit;
- The oil cylinder parts are processed by high-speed fully automatic CNC lathes. It ensures excellent concentricity and smoothness, and the cylinder barrel is rolled and mirrored;
- Adjustable platform length;
- Shot blasting surface treatment, high-temperature spray treatment, and durability guaranteed;
- All shaft positions are equipped with wear-resistant bearings.
Parameters
| Rated lifting weight | 4000kg | Power | 3kw |
| Initial height | 330mm | Power supply | 220V/380V |
| Lifting height | 2160mm | Drive mode | Electro-hydraulic |
| Platform length | 1550-2055mm | Hydraulic oil | 46# Anti-wear hydraulic oil 18 L |
| Platform width | 550mm | Air pressure | 6~8bar |
| Net weight of the whole machine | 750kg | Working temperature | 5~40℃ |
