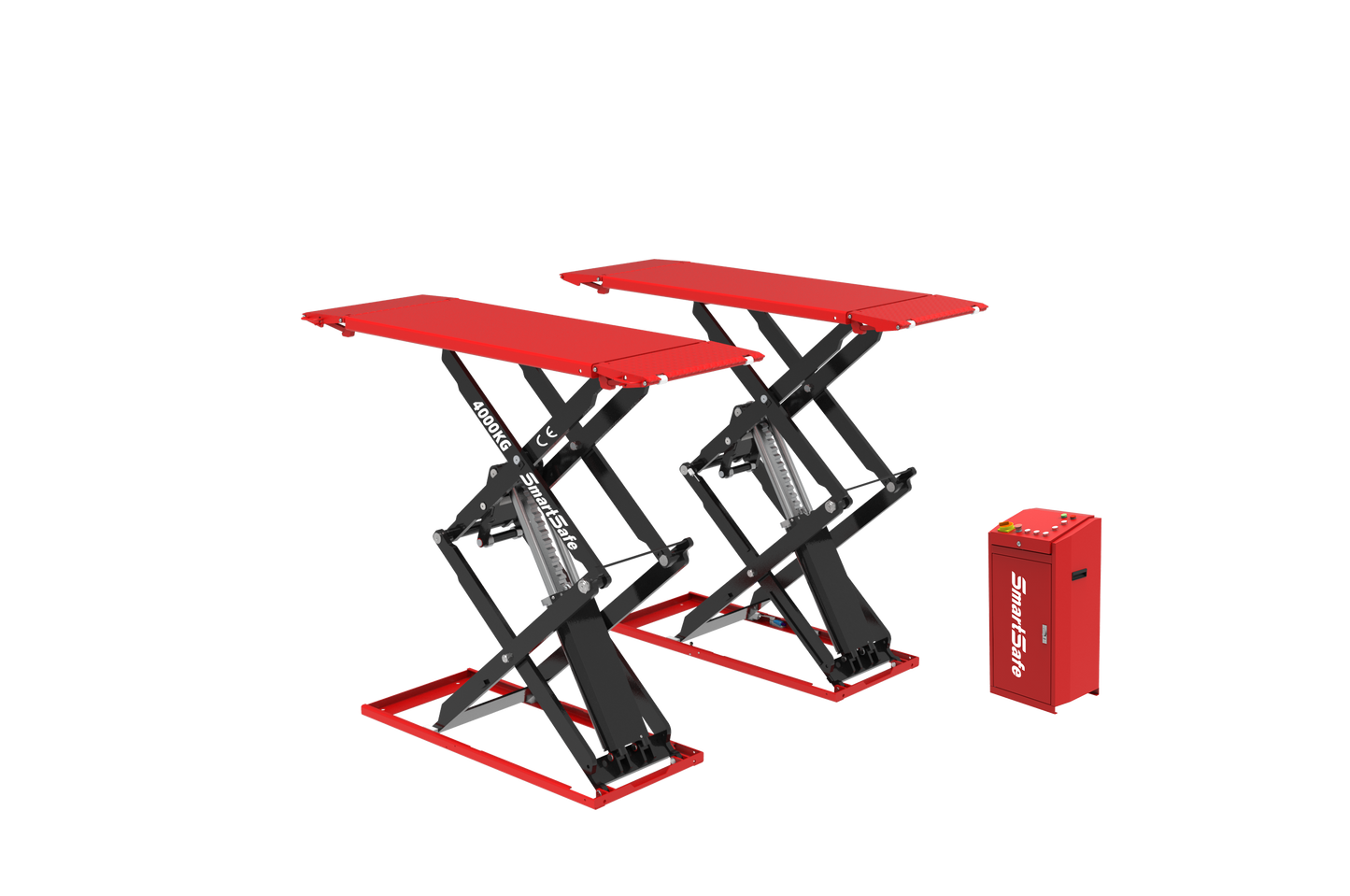

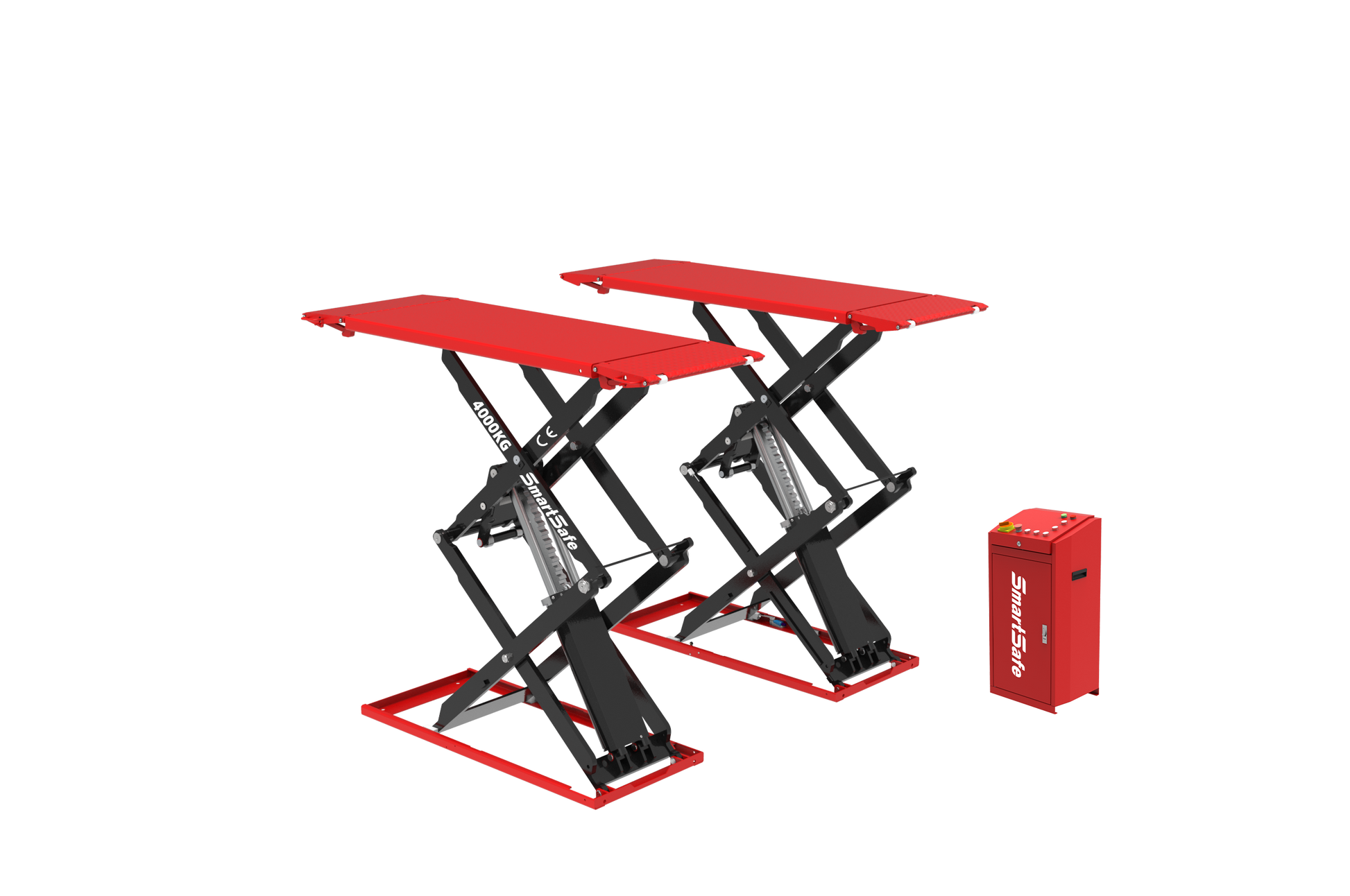

LT640T is an ultra-thin flatbed lift that can be installed on the ground. It has a lifting capacity of 4.0 tons and is suitable for rapid maintenance, tire replacement and other workstations.
Features
- Ultra-thin structure, the thickness is only 110mm;
- Hydraulic synchronization, dual hydraulic system, hydraulic lock and mechanical triple safety device, automatic unlocking when lowered;
- 24V safety control circuit;
- The oil cylinder parts are processed by high-speed fully automatic CNC lathes. It ensures excellent concentricity and smoothness, and the cylinder barrel is rolled and mirrored;
- Cutting with CNC equipment such as lasers. Precise dimensions, flat incisions, high finish. The X frame is made of high-quality steel, laser-cut, solid steel plate, high strength, corrosion-resistant, and not easy to deform;
- The supportable approach bridge can accommodate more long-wheelbase vehicles;
- Shot blasting surface treatment, high-temperature spray treatment, and durability guaranteed.
Parameters
| Rated lifting weight | 4000kg | Power | 3kw |
| Initial height | 110mm | Power supply | 220V/380V |
| Lifting height | 1920mm | Drive mode | Electro-hydraulic |
| Platform length | 1475mm | Hydraulic oil | 46# Anti-wear hydraulic oil 10 L |
| Platform width | 650mm | Air pressure | 6~8bar |
| Net weight of the whole machine | 989kg | Working temperature | 5~40℃ |
