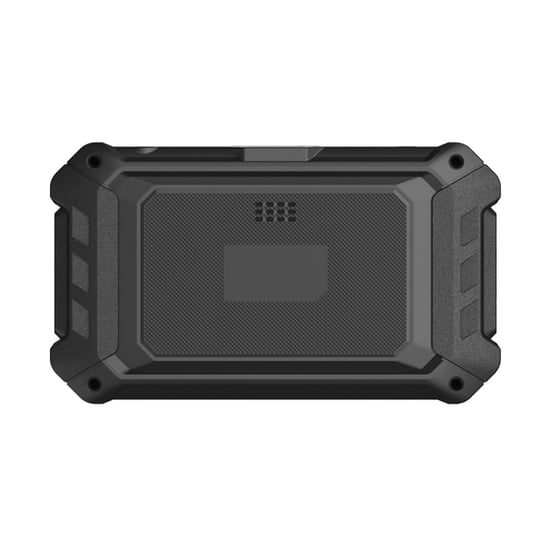

OBDStar ISCAN Ducati Diagnostic Tool
OBDStar ISCAN Ducati Description:
OBDStar ISCAN DUCATI is a portable tablet which has super performance and industrial appearance design specialized for DUCATI. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
OBDStar ISCAN Ducati Specifications
- Operation system: Android 5.1.1
- CPU: RK3128 quad-core ARM cortex A7
- Battery: 2600mA, rechargeable polymer lithium battery
- Extension memory card: 32G micro SD (TF) card supported
- LCD: 5.0 inch
- LCD resolution: 800*480
- Touch screen: Capacitive touch screen
- Wifi: Supported
- Working temperature: -20℃~55℃ (14℉~131℉)
- Storage temperature: -20℃~70℃ (-4℉~158℉)
- Weight: About 700g
- Dimension: 198mm*115mm*31mm
OBDStar ISCAN Harley Davidson Functions
- Android 5.1.1 operation system;
- Simple and intuitive menu guidance allows you to quickly master the equipment operation;
- Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
- Menu arbitrary selection is more convenient and quicker;
- Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
- Wi-Fi connection to the internet, one-click software upgrade;
- One-click remote function, OBDSTAR technical staff remote assistance.
OBDStar ISCAN Ducati Advanced function
- The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;
- Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
- Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
Motorcycle/snowmobile/ATV/UTV support series
Ducati
Motorcycle key programming support series
Ducati
Odometer Recalibration support series(Optional)
DUCATI by OBD
Function Display
Main Page/Brand Supported
Help Data/Technical Bulletin
Supported Systems List/Vehicles List
Diag Socket/Diag Connector Location
Advanced Function-DUCATI
OBDStar ISCAN Ducati Accessories
