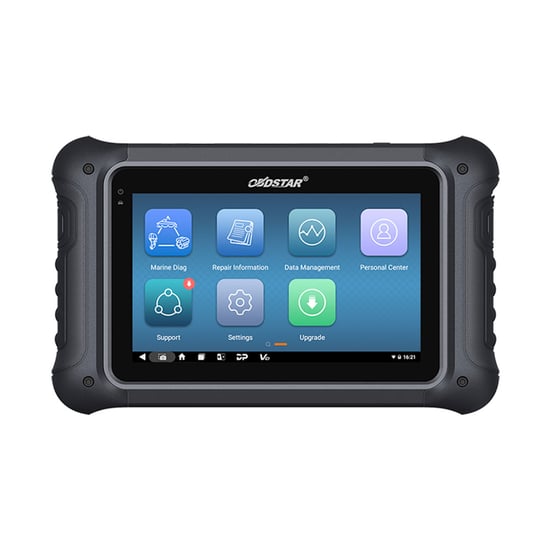

OBDSTAR ISCAN Pro Volvo Marine Scanner

OBDSTAR ISCAN Pro Volvo Marine Scanner Description:
OBDSTAR ISCAN PRO VOLVO (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for VOLVO. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 7.0-inch capacitive touch screen, brings customer professional diagnosis experience.
Diagnostic Tools From OBDSTAR with Product Number: MK25365
This Weight Product: 3250g

OBDSTAR ISCAN Pro Volvo Marine Scanner User Manual

OBDSTAR ISCAN Pro Volvo Marine Scanner Coverage

OBDSTAR ISCAN Pro Volvo Marine Scanner Specifications:

Operation system

Android 5.1.1

CPU

RK3128 quad-core ARM cortex A7

Battery

3700mA, rechargeable polymer lithium battery

Extension memory card

32G micro SD (TF) card supported

Storage capacity

16GB

LCD

7.0 inch

LCD resolution

1024*600

Touch screen

Capacitive touch screen

Wifi
Supported

Working temperature

-20℃55℃ (14℉131℉)

Storage temperature

-20℃70℃ (-4℉158℉)

Weight

About 0.766kg

Dimension

243mm*148mm*36mm


OBDSTAR ISCAN Pro Volvo Marine Scanner Functions
1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.

OBDSTAR ISCAN Pro Volvo Marine Scanner Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location, technical bulletin etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Support Parameter Programming, Station Configuration, Gain and Stability Calibration, ACP History test, Engine hours programming 1, Engine hours programming 2, Engine hours programming 3, Engine hours programming 4, AdBlue Dosing System tests, Engine Run-up test, Injectors shut off manual 1, Injectors shut off manual 2, Spark shut off test, Fuel pump relay test, Idle Air Control reset test, Throttle activation test, Cylinder Compression mode, Injector control test, Idle speed control test, Spark Fire test, O2 sensor test, Misfire reset test and other special functions.
4. Support DC24V input.

OBDSTAR ISCAN Pro Volvo Marine Scanner Diagnostic support series
Support D3, D4/D6, D5-D16 GE, D5-D16 VE, D8/D13-1000, D9-D16, Gasoline, QL EST, D12, KAD-300, KAD-44, TAMD-74, TAMD-75, V6 - V8 and other models.

OBDSTAR ISCAN Pro Volvo Marine Scanner Function Display-
(From OBDSTAR Mobile App)
1) Main Page


2) Diag Socket/Diag Connector Location



Function Display-(From ISCAN PRO)
1) Main Page/Brand Supported


2) Data Flow Text/Waveform Diagram



3) Advanced Function


4) Special Functions

OBDSTAR ISCAN Pro Volvo Marine Scanner Accessories
