Product Description:

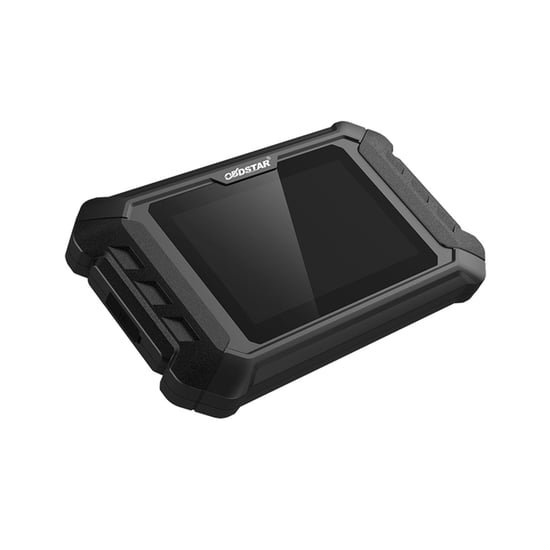

OBDStar ISCAN Suzuki (Marine) Diagnostic Tool is a professional portable tablet designed specifically for Suzuki marine engines, providing advanced diagnostic capabilities and reliable performance for marine technicians.
OBDStar ISCAN SUZUKI is a new generation intelligent marine diagnostic device developed for Suzuki outboard engines. The tool features powerful hardware performance combined with a durable industrial design suitable for marine service environments.
The device is powered by an RK3128 quad-core ARM Cortex A7 processor and features a 5-inch capacitive touch screen, delivering a fast and professional diagnostic experience for marine technicians.
Running on the Android 5.1.1 operating system, the system offers a simple and intuitive interface that allows users to quickly understand and operate the device.
The scanner provides complete diagnostic capabilities including reading and clearing fault codes, viewing live data streams, performing action tests, configuration settings and coding functions.
The device supports recording and playback of real-time data streams, allowing technicians to quickly and accurately locate sensor faults and component failures.
Wi-Fi connectivity enables internet access and one-click software upgrades, while the built-in remote support function allows OBDSTAR technical staff to provide remote diagnostic assistance when required.
Advanced Functions
The OBDSTAR mobile application integrates additional diagnostic resources such as diagnostic socket location, flash code lookup, technical bulletins, service lamp reset functions and system parameter information to improve diagnostic efficiency.
The system supports multiple data display formats including text, waveform graphs and instrument-style diagrams to help technicians easily analyze system faults.
Special functions supported include:
- BCM simulator
- Instance setting
- System calibration
- Setting changes
- BCM initialization
- System formation
Diagnostic Coverage
The scanner supports Suzuki outboard marine engines from model years 1998 to 2022.
Technical Specifications:
| Operating System | Android 5.1.1 |
| CPU | RK3128 Quad-Core ARM Cortex A7 |
| Battery | 2600 mAh rechargeable polymer lithium battery |
| Extension Memory | Supports 32 GB Micro SD (TF) card |
| Display | 5.0 inch LCD |
| Resolution | 800 × 480 |
| Touch Screen | Capacitive touch screen |
| Wi-Fi | Supported |
| Working Temperature | -20 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Weight | Approximately 700 g |
| Dimensions | 198 × 115 × 31 mm |
