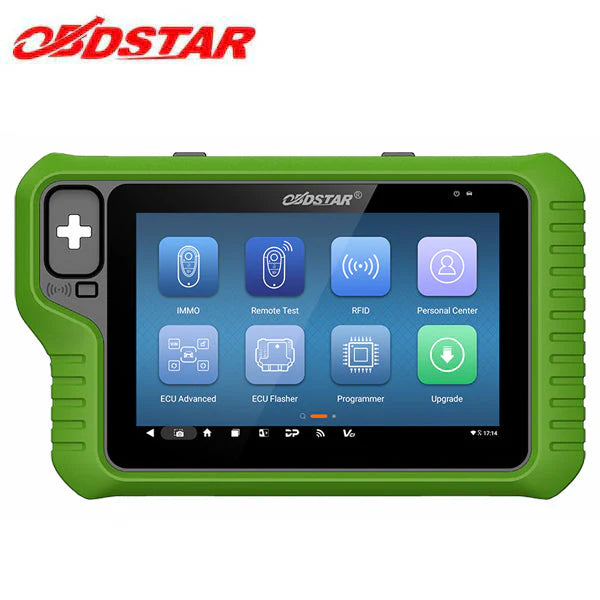

OBDSTAR KEY MASTER G3 Key Programmer A1 Full Software Package

Product Description:

OBDSTAR KEY MASTER G3 Key Programmer A1 Full Software Package is a professional all-in-one immobilizer and key programming tool designed for automotive electronics technicians and locksmith professionals.

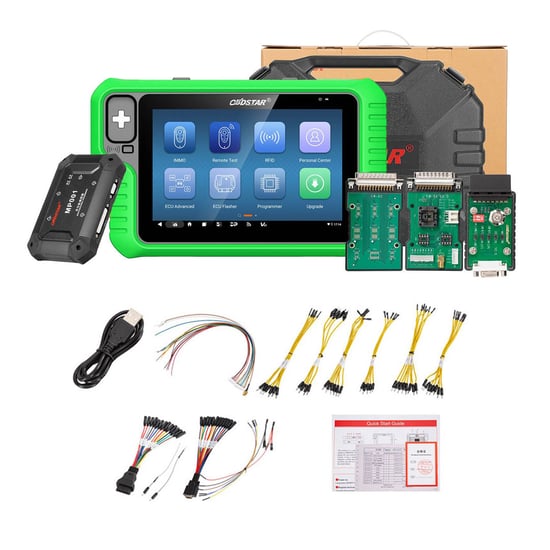

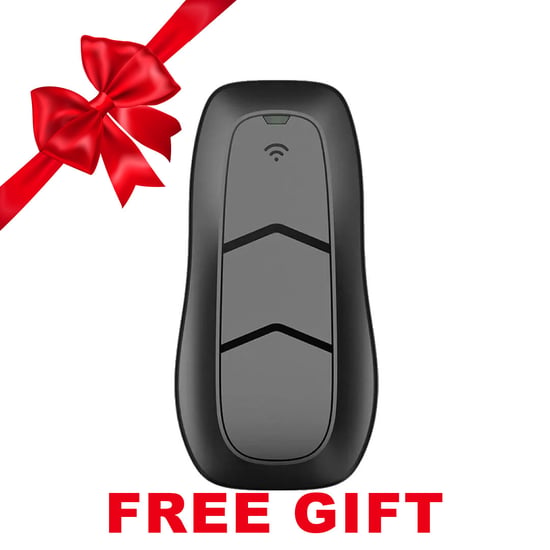

This complete bundle includes the OBDSTAR KEY MASTER G3 with advanced software activation packages and a free Key SIM Smart Key Emulator, providing an extensive solution for key programming, ECU work, airbag reset, odometer functions and test platform operations.

The KEY MASTER G3 expands on the capabilities of the OBDSTAR X300 DP Plus key programming series and introduces additional functionality including odometer calibration, airbag reset, ECU cloning, ECU flasher functions and advanced electronic testing platforms.

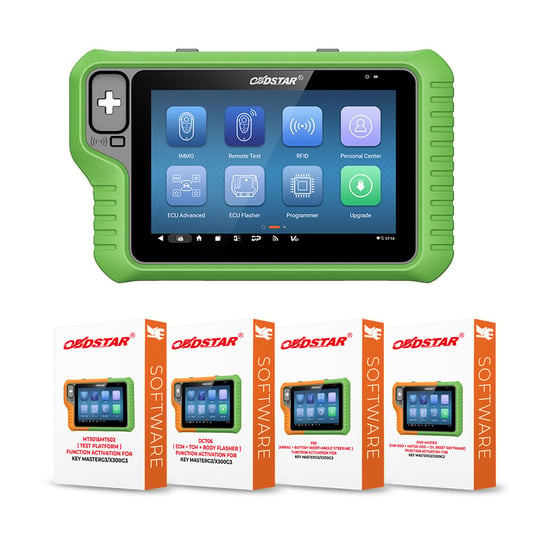

Included Software Activation Packages

• MT501 and MT502 Test Platform Function Activation
• DC706 ECM + TCM + BODY Flasher Activation
• P50 Airbag Reset + Battery Reset + Steering Angle Function
• Odo Master Software (Car Odometer + Motor Odometer + Oil Reset)

These activation packages allow the device to function as a complete automotive electronics repair platform covering key programming, ECU operations, cluster calibration and system resets.

Hardware Features

• RK3568 Hexa-Core processor
• 4 GB RAM + 64 GB storage capacity
• High-brightness display with HDMI interface
• Dual-band 2.4 GHz / 5 GHz Wi-Fi
• Bluetooth 5.0 connectivity
• STM32H723 high-performance VCI processor
• Built-in CAN-FD communication
• Fault-tolerant CAN support
• OBD16 pinout switch
• DoIP protocol support
• Remote test and RFID functions

The device is supplied with MP001 and P004 adapters by default, replacing older P003 and P003+ adapters.

Additional software activation services such as cluster calibration, ECU cloning, airbag reset and test platform functions are available, allowing the tool to operate as a complete all-in-one automotive electronics solution.

Supported Functions

• IMMO key programming
• IMMO OFF function
• Remote test
• Read and write EEPROM and MCU
• Read and write transponders
• ECU unlock
• Make dealer keys
• Make start keys
• OBDII functions
• Renew keys
• ECU advanced functions

Supported Vehicle Types

• Passenger cars
• Heavy-duty vehicles
• Electric vehicles
• Motorcycles
• Marine jet ski systems

Advanced Key Programming Functions

• Motorcycle key programming for Harley, Triumph, Ducati, Kawasaki, Honda, Suzuki, Yamaha, BRP, Indian, Aprilia, Piaggio, Vespa and others
• Marine key programming for BRP, Kawasaki, Yamaha and other jet ski systems
• Electric vehicle key programming for LI, NETA, Leapmotor, SERES, AITO and others
• ECU unlock for Alfa Romeo, Fiat, Chrysler, Dodge, Jeep and other vehicles
• Key programming solutions for SMART 453 with all keys lost
• Key programming solutions for Renault models including Kwid, Sandero, Twingo, Lodgy, Duster PH3 and others
• PIN code reading for Renault models including Espace, Kadjar, Koleos, Megane, Scenic, Talisman and Samsung QM6/SM6

Technical Specifications:
