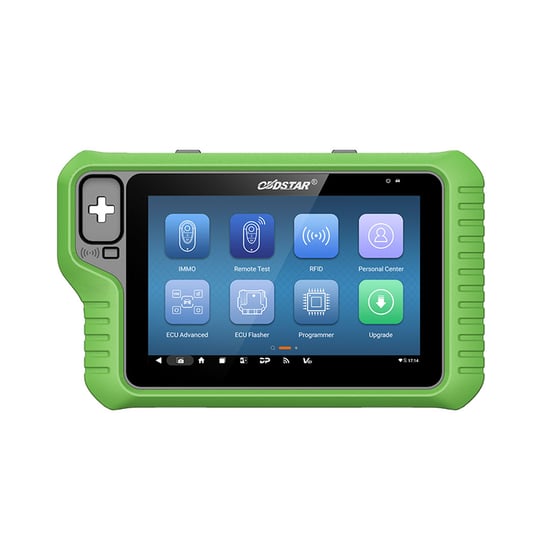

OBDSTAR KEY MASTER G3 Key Programmer A1 Package with Free Gift Key SIM Smart Key Emulator

Product Description:

OBDSTAR KEY MASTER G3 Key Programmer A1 Package with Free Gift Key SIM Smart Key Emulator is a professional intelligent key programming and immobilizer solution designed for automotive locksmiths and vehicle electronics technicians.

OBDSTAR KEY MASTER G3 is a new generation intelligent diagnostic and key programming device developed by OBDSTAR. It inherits the advantages of OBDSTAR automotive technology including wide vehicle coverage and powerful programming functions.

The device expands the functionality of the OBDSTAR X300 DP Plus series and introduces enhanced support for electronic vehicles, motorcycles and marine jet ski immobilizer systems.

The platform also supports expansion modules such as OBDSTAR Odomaster mileage correction software, P50 airbag reset functions, MT series test platform and DC706 ECU cloning tools.

This makes KEY MASTER G3 a comprehensive solution for automotive electronics repair, immobilizer programming and ECU operations.

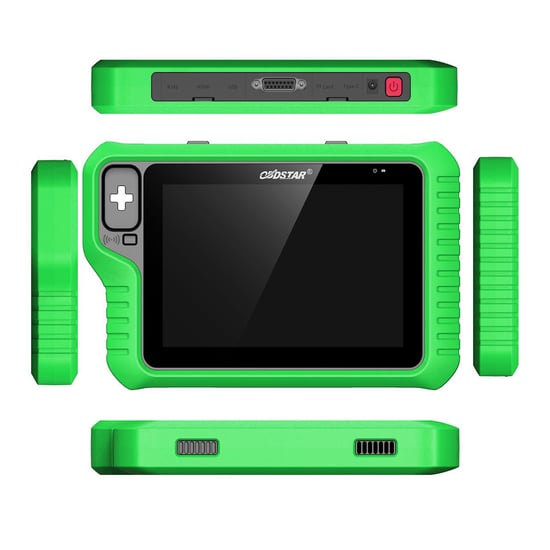

Hardware Features

• RK3568 Hexa-Core processor
• 4 GB RAM + 64 GB internal storage
• High-brightness 8-inch display
• HDMI high-definition interface
• Dual-band 2.4 GHz / 5 GHz Wi-Fi
• Bluetooth 5.0 connectivity
• STM32H723 high-performance VCI processor
• Built-in CAN-FD communication
• Fault tolerant CAN support
• OBD16 pinout switch
• DoIP communication protocol support
• Remote test and RFID functions

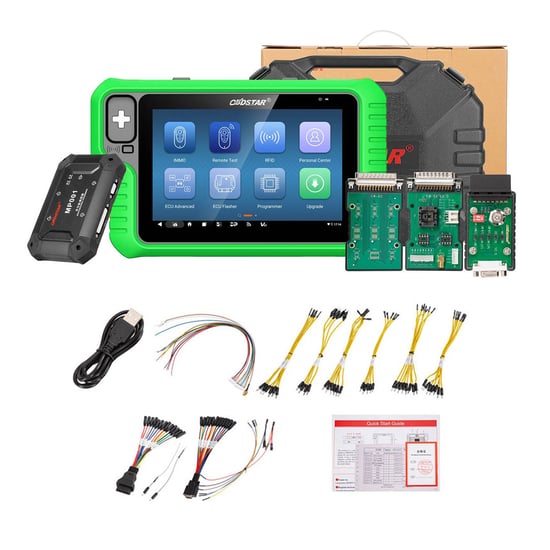

The device includes MP001 and P004 adapters as standard equipment, replacing the older P003 and P003+ adapters.

Additional software activation services are available for cluster calibration, ECU cloning, airbag reset, test platform functions and other advanced operations, allowing the tool to function as a complete all-in-one automotive electronics solution.

Supported Functions

• IMMO key programming
• IMMO OFF functions
• Remote test
• Read and write EEPROM and MCU
• Read and write transponder data
• Unlock ECU
• Make dealer keys
• Make start keys
• OBDII diagnostics
• Renew keys
• ECU advanced operations

Supported Vehicle Types

• Passenger vehicles
• Heavy-duty vehicles
• Electric vehicles
• Motorcycles
• Marine jet ski systems

Advanced Programming Functions

• Motorcycle key programming for Harley, Triumph, Ducati, Kawasaki, Honda, Suzuki, Yamaha, BRP, Indian, Aprilia, Piaggio, Vespa and others
• Marine key programming for BRP, Kawasaki, Yamaha and other jet ski systems
• Electric vehicle key programming for LI, NETA, Leapmotor, SERES, AITO and others
• ECU unlock for Alfa Romeo, Fiat, Chrysler, Dodge and Jeep vehicles
• Key programming solutions for SMART 453 vehicles with all keys lost
• Key programming solutions for Renault models including Kwid, Sandero, Twingo, Lodgy and Duster PH3
• PIN code reading for Renault models including Espace, Kadjar, Koleos, Megane, Scenic and Talisman
