OBDSTAR KEY MASTER G3 Key Programmer Package with Free Gift Motorcycle IMMO Accessories Kit

Product Description:

OBDSTAR KEY MASTER G3 Key Programmer Package with Free Gift Motorcycle IMMO Accessories Kit is a professional immobilizer and key programming tool designed for automotive locksmiths and vehicle electronics technicians.

OBDSTAR KEY MASTER G3 is a new generation intelligent key programming device developed by OBDSTAR. It inherits the advantages of OBDSTAR automotive technology including wide vehicle coverage and advanced programming functions.

The device significantly expands the functionality of the OBDSTAR X300 DP Plus series and introduces support for electric vehicles, motorcycles and marine jet ski immobilizer programming.

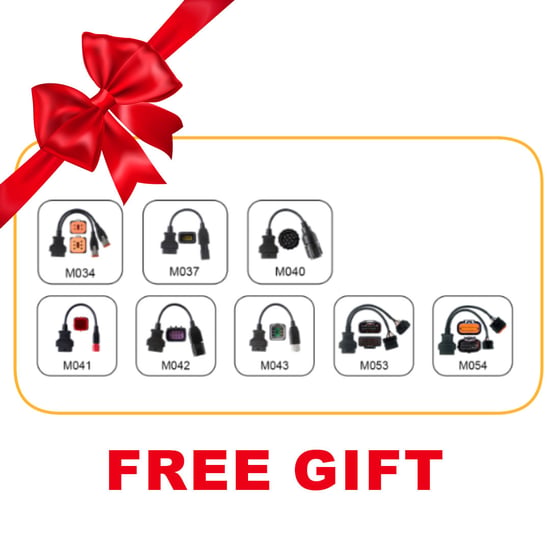

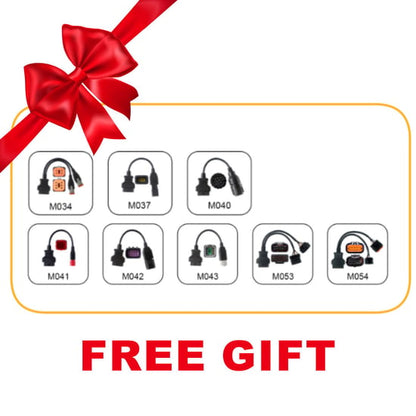

This version includes a free Motorcycle IMMO Accessories Kit, making it especially suitable for technicians working on motorcycle immobilizer systems.

The KEY MASTER G3 platform also supports expansion modules such as OBDSTAR Odomaster mileage correction software, P50 airbag reset functions, MT series test platform and DC706 ECU ECM TCM BCM BSI cloning tools.

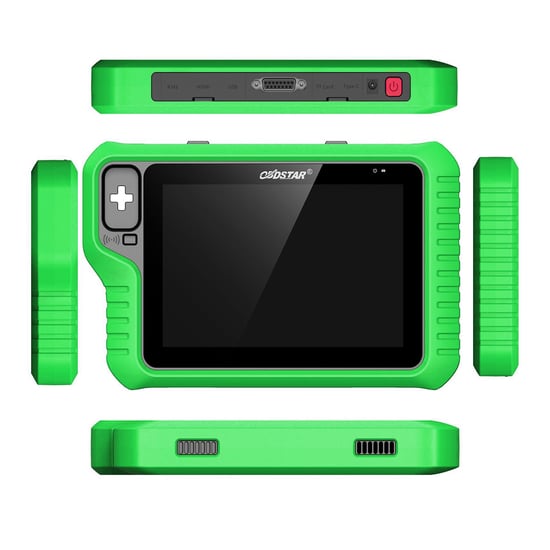

Hardware Features

• RK3568 Hexa-Core processor
• 4 GB RAM + 64 GB internal storage

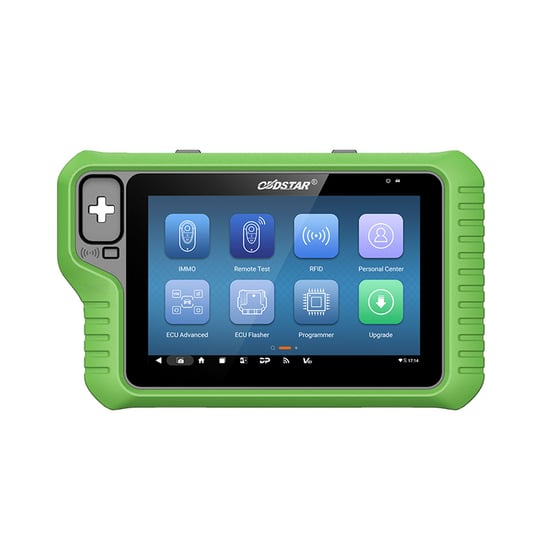

• High-brightness 8-inch display
• HDMI high-definition interface
• Dual-band 2.4 GHz / 5 GHz Wi-Fi
• Bluetooth 5.0 connectivity
• STM32H723 high-performance VCI processor
• Built-in CAN-FD communication
• Fault tolerant CAN support
• OBD16 pinout switch
• DoIP communication protocol support
• Remote test and RFID functions

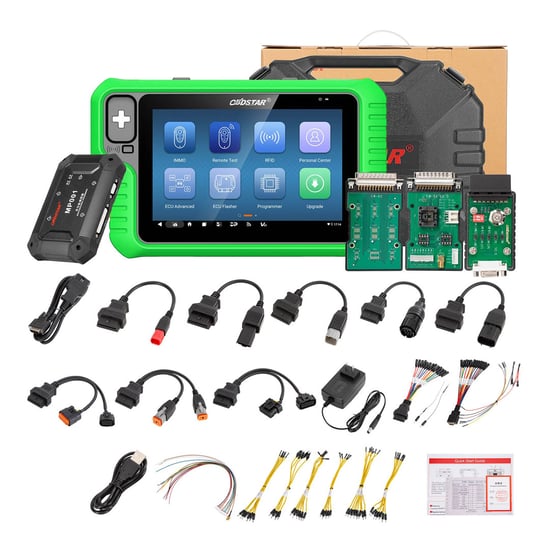

The tool is supplied with MP001 and P004 adapters as standard, replacing the previous P003 and P003+ adapters.

Additional software activation services are available for functions such as cluster calibration, ECU cloning, airbag reset and test platform operations, allowing the device to operate as a comprehensive automotive electronics service tool.

Supported Functions

• IMMO key programming
• IMMO OFF function
• Remote test
• Read and write EEPROM and MCU
• Read and write transponder data
• ECU unlock
• Make dealer keys
• Make start keys
• OBDII functions
• Renew keys
• ECU advanced operations

Supported Vehicle Types

• Passenger vehicles
• Heavy-duty vehicles
• Electric vehicles
• Motorcycles
• Marine jet ski systems

Advanced Programming Functions

• Motorcycle key programming for Harley, Triumph, Ducati, Kawasaki, Honda, Suzuki, Yamaha, BRP, Indian, Aprilia, Piaggio, Vespa and others
• Marine key programming for BRP, Kawasaki, Yamaha and other jet ski systems
• Electric vehicle key programming for LI, NETA, Leapmotor, SERES, AITO and others
• ECU unlock function for Alfa Romeo, Fiat, Chrysler, Dodge and Jeep vehicles
• Key programming solutions for SMART 453 vehicles with all keys lost
• Key programming solutions for Renault models including Kwid, Sandero, Twingo, Lodgy and Duster PH3
• PIN code reading for Renault models including Espace, Kadjar, Koleos, Megane, Scenic and Talisman

Technical Specifications:
