Product Description:
OBDSTAR MK70 Motorcycle Key Programmer is a professional motorcycle immobilizer programming device designed for locksmiths and motorcycle technicians. The device supports motorcycle key programming and odometer recalibration with multi-language support.
OBDSTAR MK70 is a new generation motorcycle immobilizer programming device equipped with powerful help data files and built specifically for motorcycle key programming applications.

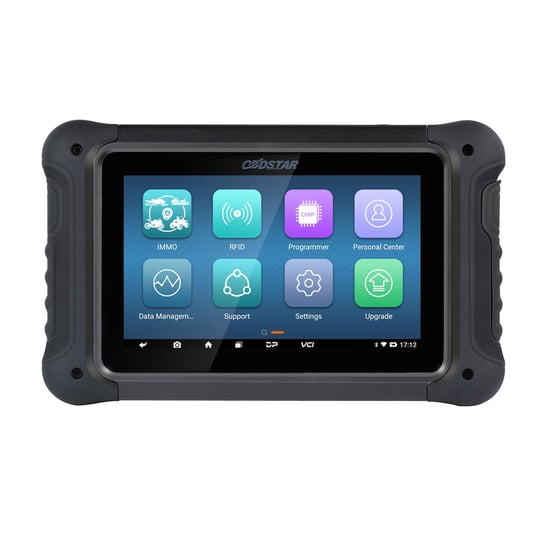

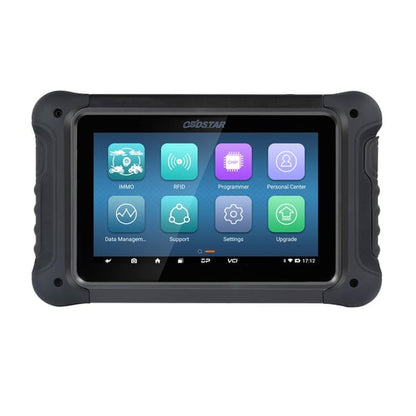

The device features a portable 7-inch tablet design powered by an RK3128 quad-core ARM Cortex A7 processor, providing fast and stable operation for professional locksmith work.
The system is easy to use and offers advanced motorcycle IMMO programming functions, odometer recalibration and key generation capabilities.
Features
- 1 year free software updates
- Portable 7-inch touchscreen tablet design
- Powerful built-in help data files
- Support for key programming and odometer recalibration
- Fast and stable performance
Supported Languages
The device supports multiple languages including:
- English
- Spanish
- Russian
- Thai
- Farsi / Persian
- French
- German
- Polish
- Italian
- Vietnamese
- Hebrew
- Indonesian
The default language is English and the device must be registered before changing the language.
Supported Motorcycle Brands for Key Programming (OBD / Dump)
- Aprilia
- BMW
- BRP
- Derbi
- Ducati
- Gilera
- Harley-Davidson
- Honda
- Indian
- Italjet
- Kawasaki
- Moto Guzzi
- Peugeot
- Piaggio
- Polaris
- Suzuki
- Triumph
- Vespa
- Yamaha
Supported Motorcycle Brands for Odometer Recalibration (Dump)
- Aprilia
- Benelli
- BMW
- Buell
- Cagiva
- Ducati
- Generic
- Haojue
- Harley-Davidson
- Honda
- Kawasaki
- KTM
- Kymco
- MV Agusta
- Peugeot
- Piaggio
- Suzuki
- Triumph
- Yamaha
Odometer Recalibration by OBD / Bench (Optional)
- BRP (Bench)
- Ducati (OBD)
Make Key by Dump Supported Brands
- Aprilia
- BMW
- Ducati
- Honda
- Kawasaki
- Piaggio
- Suzuki
- Yamaha
Advanced Functions
- Read Honda motorcycle PIN code with original key
- Read Suzuki motorcycle PIN code with original key
- Read Yamaha motorcycle PIN code with original key
- BRP odometer calibration by bench (optional)
- Ducati odometer calibration by OBD (optional)
Technical Specifications:
| Operating System | Android 5.1.1 |
| CPU | RK3128 Quad-core ARM Cortex A7 |
| Battery | 3700mAh rechargeable polymer lithium battery |
| Extension Memory | Supports 32GB micro SD (TF) card |
| Internal Storage | 16GB |
| Display | 7.0 inch LCD |
| Resolution | 1024 × 600 |
| Touch Screen | Capacitive touch screen |
| Wi-Fi | Supported |
| Working Temperature | -20°C ~ 55°C (14°F ~ 131°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Tablet Weight | About 1.3 kg |
| Dimensions | 243 × 148 × 36 mm |

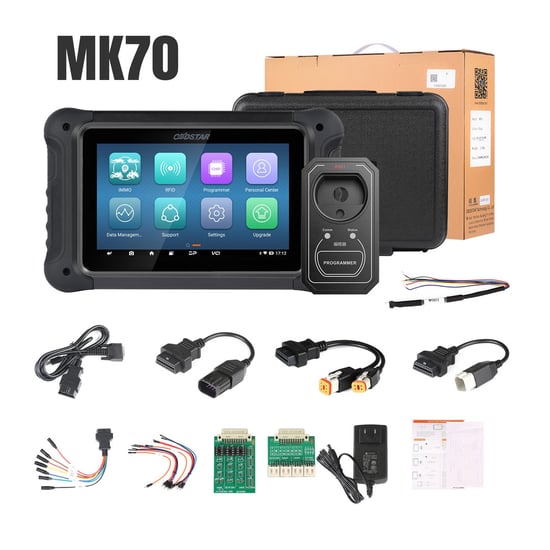

Package Includes:
- 1 × MK70 tablet
- 1 × M001A cable
- 1 × M003A cable
- 1 × M034 cable
- 1 × M042 cable
- 1 × M043 cable
- 1 × P001 adapter
- 1 × 12V 2A charger
