OBDSTAR MP001 Multi-Function Programmer for OBDSTAR P002 P003 DC706

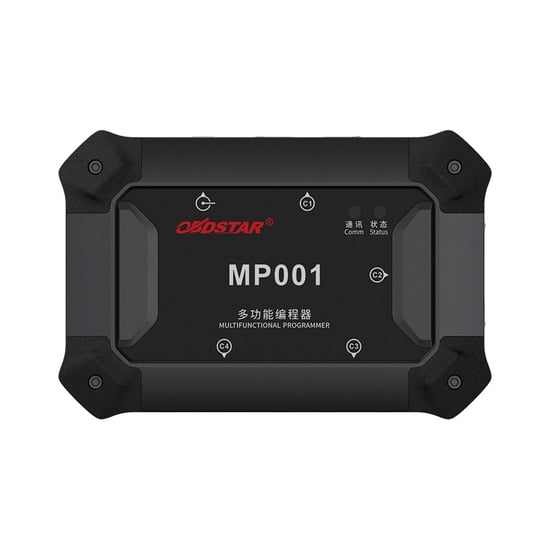

OBDSTAR MP001 Multi-Function Programmer Description:
OBDSTAR MP001 is the latest automotive multi-function programmer developed by OBDSTAR. It fully supports EEPROM and MCU reading, writing, cloning and data processing for automobiles, commercial vehicles, new energy vehicles, motorcycles and marine (motorboats). It is compatible with the P002 adapter (Toyota/Ford all-in-one adapter, Honda/Yamaha/Suzuki all-in-one adapter) and the P003 adapter (some models of engine and gearbox cloning, K/CAN conversion, BOOT mode reading and writing).
OBDSTAR MP001 Multi-Function Programmer Software Functions:
- EEPROM / MCU reading and writing
- Key flashing
- Steering angle repair
- Body computer data processing
- Immo off
- Pincode reading
- Battery module repair
- Instrument repair
- More functions under development
OBDSTAR MP001 Multi-Function Programmer Features:
- MP001 covers P003+ and supports more SlMOS 18 compared with P003+
- The boot mode of SlMOS 18 requires more IO ports; P003+ has 4 IO ports while MP001 provides up to 12 IO ports
- MP001 can support future ECM requirements
- MP001 can replace P003, P002 and P001 adapters
Note:
- MP001 integrates P003+, P003, P002 and P001 functions
- Different tablet device models require different configuration software
- To use the MP001 programmer, ECU bench jumper cables are required
OBDSTAR MP001 Multi-Function Programmer Specification:
| CPU | STM32F407VET6 |

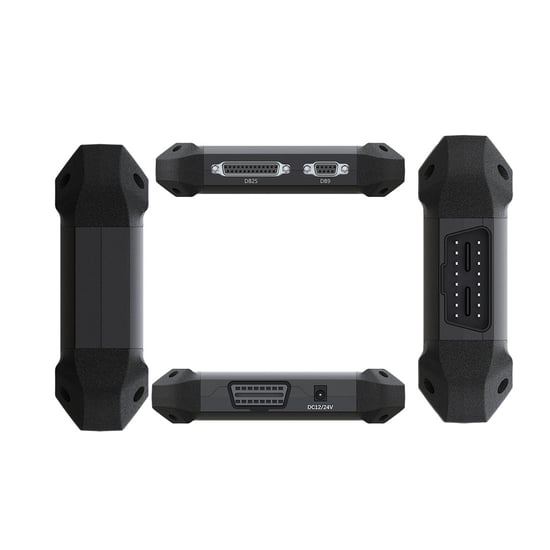

| Connector | DC, OBD Female, OBD Male, DB9, DB25 |
| Input Voltage | DC 12V / 24V |
| Output Voltage | 500mA |
| Weight | 260g |
| Working Temperature | -10ā ~ 55ā |
| Device Size | 165 Ć 110 Ć 35 mm |
Ā

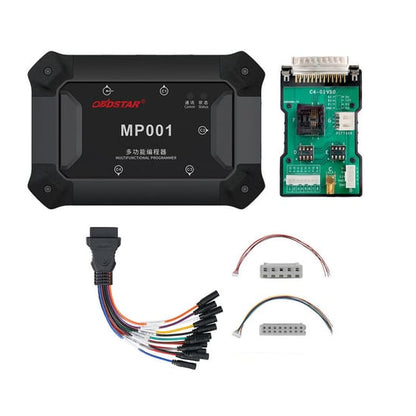

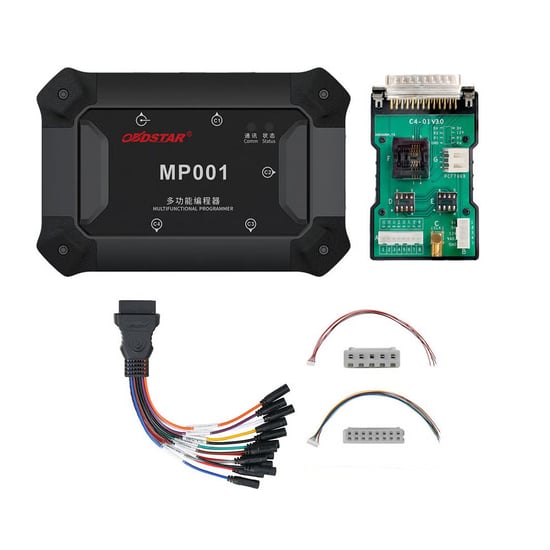

OBDSTAR MP001 Multi-Function Programmer Package List:
- 1pc x OBDSTAR MP001 Programmer

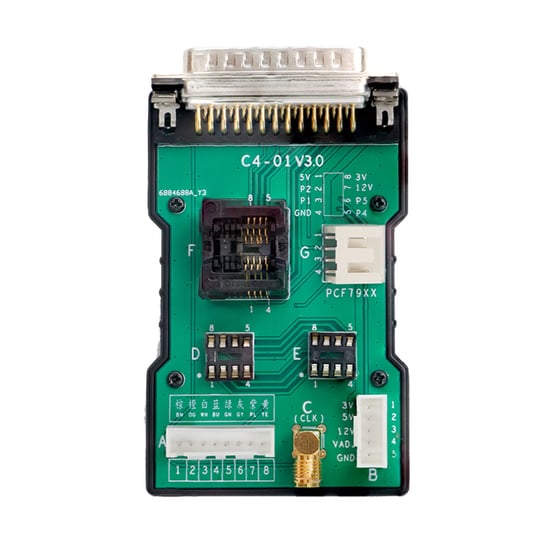

- 1pc x OBDSTAR C4-01 Host
- 1pc x W004 EEPROM and MCU Adapter
- 1pc x W005 EEPROM and MCU Adapter
- 1pc x W006 EEPROM and MCU Adapter
FAQ about OBDSTAR MP001 Multi-Function Programmer:
Q: I purchased some cables that match P002 and P003 before. Can these cables be used with MP001?
A: Yes. Toyota 8A all key lost cable, Ford all key lost cable, Honda motorcycle immo cable, Yamaha/Suzuki motorcycle programming cable and similar cables can be used directly with MP001.
