OBDSTAR MS80 Device Tablet for Motorcycle / PWC / Snowmobile / ATV / UTV Diagnostics
OBDSTAR MS80 Product Description:
OBDSTAR MS80 is a new generation intelligent diagnostic tablet designed for Motorcycle, PWC, Snowmobile, ATV and UTV diagnostics. It supports special functions for YAMAHA, KTM, Harley-Davidson, Triumph, BMW, Aprilia, Piaggio, SYM, KYMCO, Suzuki, Kawasaki and more. The device provides professional-level intelligent diagnostics with advanced troubleshooting assistance and interactive circuit diagrams.

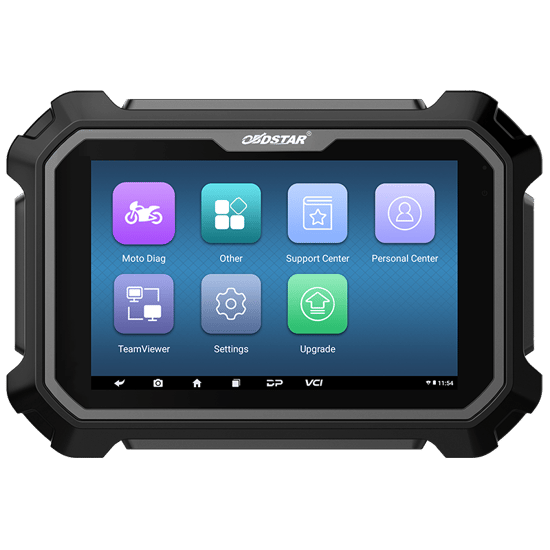

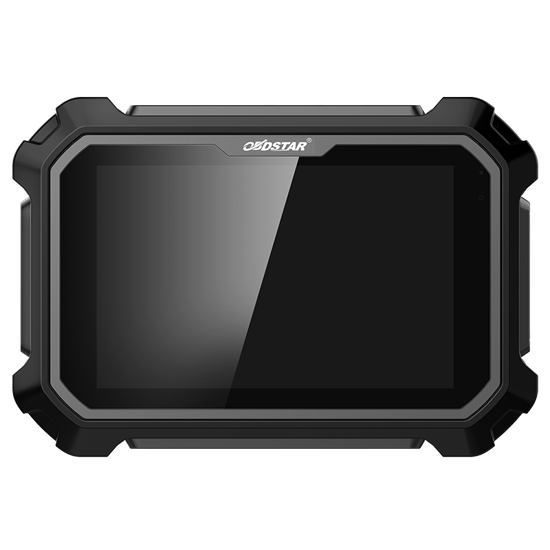

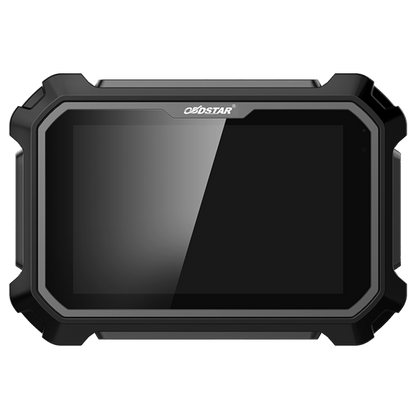

MS80 is based on a Samsung Exynos processor and equipped with an 8-inch capacitive touch screen providing fast and smooth performance. The tablet includes professional-level intelligent diagnosis such as fault guidance, technical bulletins, data stream assistance and diagnostic socket information to help technicians diagnose accurately and efficiently.
OBDSTAR MS80 Functions:
- Android 5.1.1 operating system
- Simple and intuitive menu navigation
- Complete diagnostic functions including code reading, code clearing, data flow, action tests, settings and coding
- Flexible menu selection for faster diagnostics
- Real-time data stream recording and playback
- Wi-Fi connection for one-click software upgrades
- One-click remote technical assistance from OBDSTAR engineers
- Supports thousands of motorcycle models worldwide
OBDSTAR MS80 Advantage Functions:
- First fault guidance and help data
- Technical bulletins and diagnostic socket guidance
- Interactive circuit diagram and electrical description query
- Multiple data stream display modes including text, waveform and instrument diagram
- Automatic scanning and automatic VIN recognition
- Control module programming and coding
- ECU settings and instrument coding
- Tire pressure monitoring system configuration
- Maintenance light reset
- CO adjustment and idle speed adjustment
- A/F value reset
- ABS control unit settings
- EOL mode
- Transmission memory reset
- Clear computer memory
Supported Motorcycle / Snowmobile / ATV / UTV Brands:
Asia:
- Honda
- Hondamontesa
- Kawasaki
- Kymco
- Suzuki
- SYM
- Yamaha
Europe:
- Aprilia
- Benelli
- BMW
- Derbi
- Ducati
- GasGas
- Gilera
- KTM
- Malaguti
- Moto Guzzi
- MV Agusta
- Peugeot
- Piaggio
- Triumph
- Vespa
Americas:
- BRP
- Harley-Davidson
- Indian
- Victory
Motorcycle Key Programming Supported Brands:
- Gilera
- Harley-Davidson
- Peugeot
- Piaggio
- Triumph
- Vespa
PWC Supported Brands:
- BRP
- Honda
- Kawasaki
- Yamaha
OBDSTAR MS80 Specification:
| Operating System | Android 5.1.1 |
| CPU | Exynos4418 Dual Core ARM Cortex A9 |
| Battery | 3700mA Rechargeable Polymer Lithium Battery |
| Extension Memory | 32GB Micro SD (TF) Card Supported |
| Storage Capacity | 32GB |
| LCD | 8.0 Inch |
| LCD Resolution | 1280 × 800 |
| Touch Screen | Capacitive Touch Screen |
| WiFi | Supported |

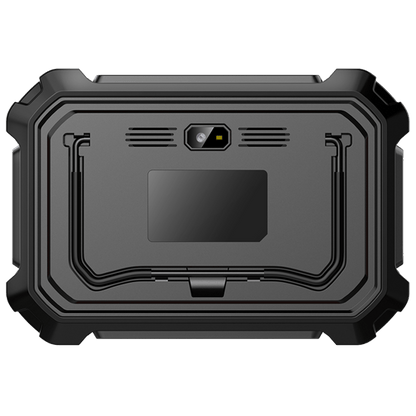

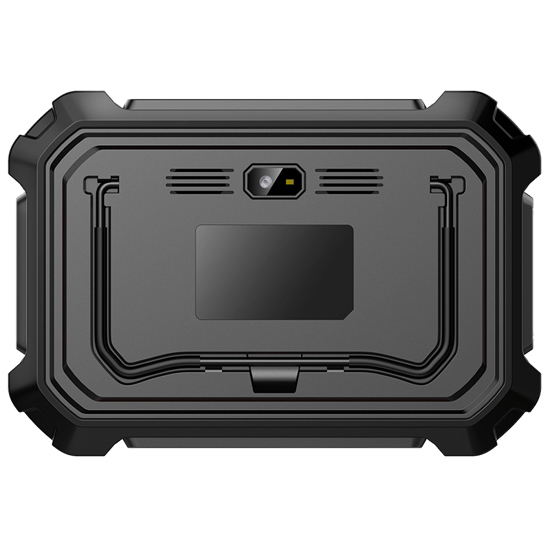

| Camera | 5MP Rear Camera |
| Working Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Weight | 1kg (Main Unit) |
| Dimension | 254 × 174 × 35 mm |

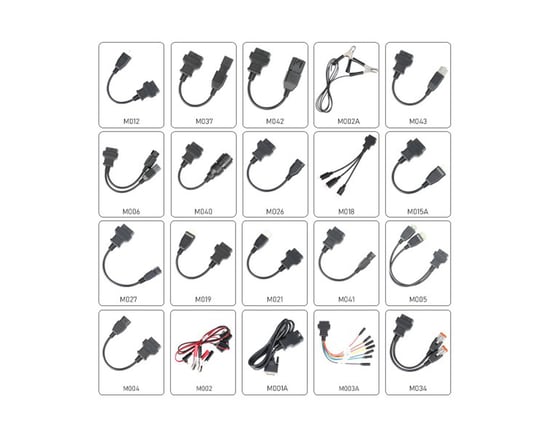

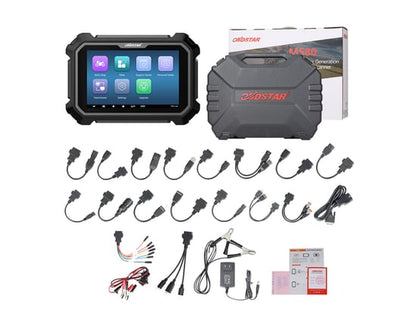

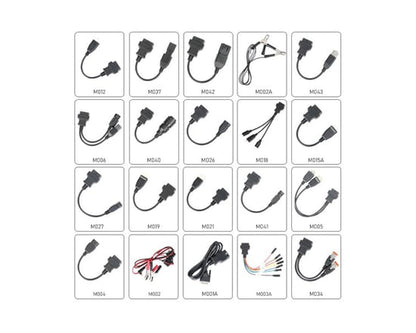

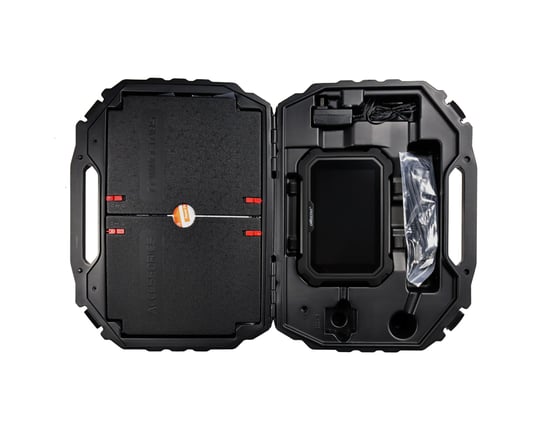

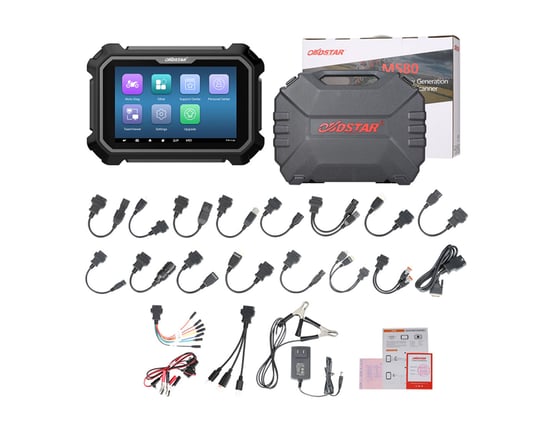

OBDSTAR MS80 Package Includes:
- 1pc x M001 Main Cable
- 1pc x M002 Power Cable
- 1pc x M002A GND Cable
- 1pc x M003A Multi-Functional Jumper
- 1pc x M004 APRILIA / DUCATI / HONDA / KTM / PIAGGIO / VESPA / YAMAHA Adapter
- 1pc x M005 KAWASAKI Adapter
- 1pc x M006 KAWASAKI Adapter
- 1pc x M012 SUZUKI Adapter
- 1pc x M015A HONDA / HONDA MONTESA Adapter
- 1pc x M018 YAMAHA Adapter
- 1pc x M019 KTM Adapter
- 1pc x M021 AEON / BENELLI / BENELLI DSK Adapter
- 1pc x M026 SYM Adapter
- 1pc x M027 KYMCO / KAWASAKI Adapter
- 1pc x M034 HARLEY-DAVIDSON Adapter
- 1pc x M037 DUCATI Adapter
- 1pc x M040 BMW Adapter
- 1pc x M041 EURO V Adapter
- 1pc x M042 INDIAN / VICTORY Adapter
- 1pc x M043 BRP Adapter
- 1pc x P001 IMMO Kit (Optional)
- 1pc x 12V2A Charger
