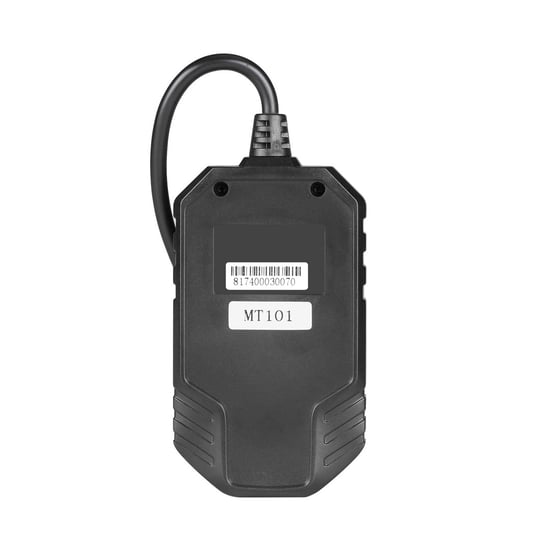

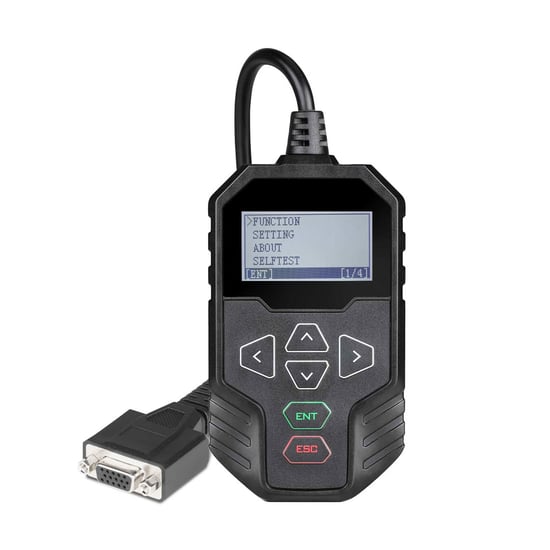

OBDSTAR MT101 Dashboard Bench Test Platform

OBDSTAR MT101 Dashboard Bench Test Platform

OBDSTAR MT101 Description:

OBDSTAR MT101 is the latest automotive dashboard bench drive test tool developed by OBDSTAR. It supports multiple vehicle models and is designed to help automotive electronic maintenance engineers perform dashboard and module testing efficiently. The compact design and powerful functions make it a useful tool for automotive electronics repair and diagnostics.

Supported List:

Please check the supported list before purchasing.
OBDSTAR MT101 Supported List – 2023-02-28

R & D Background:

Many modern vehicles have dashboards, audio systems, gear lever modules, handbrake modules and other electronic components that are activated through CAN communication with relevant modules in the vehicle. OBDSTAR MT101 simulates CAN communication to activate the secondary power supply and bring the main unit into drive mode. This allows technicians to test and verify the dashboard and related modules without installing them in the vehicle.

This solution eliminates the need to purchase multiple boot platforms and wiring harnesses for each vehicle model, significantly reducing equipment costs for automotive maintenance engineers.

OBDSTAR MT101 Features:

• Powered by STM32 processor for fast operation
• Supports hundreds of instrument cluster driver types
• Easy and intuitive menu for quick operation
• Wiring diagrams available through the OBDSTAR APP
• Portable and cost-effective diagnostic tool
• Mini USB upgrade cable for direct connection to PC and one-click software upgrade
• Language support: English

OBDSTAR MT101 Supported Vehicle Brands:

• Audi
• BMW
• Porsche
• Mercedes-Benz
• Volkswagen
• Dodge
• Ford
• Jaguar
• Lamborghini
• Rolls-Royce
• Land Rover
• Volvo

OBDSTAR MT101 Specifications:

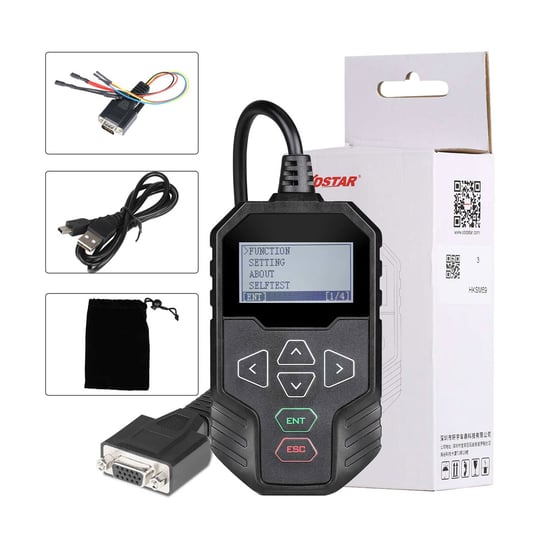

OBDSTAR MT101 Package Includes:

• 1pc x OBDSTAR MT101 Host
• 1pc x MT15 Jumper
• 1pc x Mini USB Cable
