OBDSTAR MT200 Radio Decoding Tool Description:

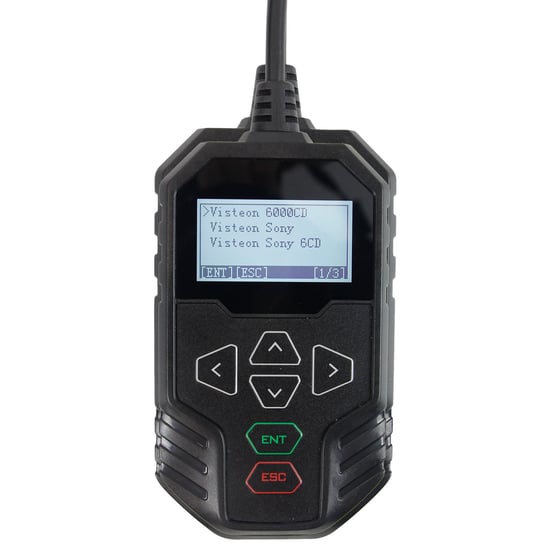

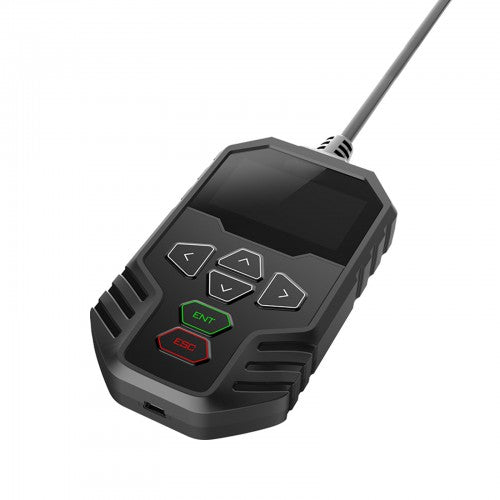

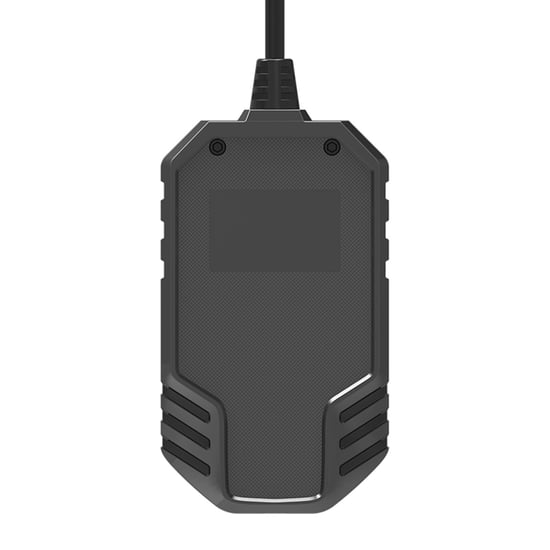

OBDSTAR MT200 is the latest handheld radio decoding tool developed by OBDSTAR. It supports radio decoding for Ford, Volkswagen and other brands through OBD or BENCH mode. The tool provides simple operation, portable design and reliable performance for automotive electronics repair engineers.

Supported List:

Please check the supported list before purchasing.
OBDSTAR MT200 Supported List – 2023-04-19

OBDSTAR MT200 supports radio code reading and decoding via OBD or BENCH. The device is easy to use and designed for technicians working with automotive radio modules.

OBDSTAR MT200 Functions:

• Easy and intuitive menu interface for quick operation
• Supports EEPROM Read, EEPROM Write, Code Read, Code Change and Code Off
• Supports radio decoding by OBD or BENCH
• Radio PIN code can be queried through OBDSTAR APP using the radio serial number
• Portable and cost-effective design
• Mini USB cable allows direct connection to PC for one-click software upgrade

MT200 Supported Models (OBD or BENCH):

Ford Supported MCU Types:

• TMS470AVF689APZA + 24C16
• TMS470R1VF48BPGEA + 24C16
• TMS470R1VF288PZA + 24C16
• NEC70F3357 + 24C16

Ford Supported Radio Models:

• Ford 1500 RDS Medialess – 6C1T-18C838-AH
• Ford 5000C Tape – KW2000 – 6S61-18K876-AG
• Ford 5000C – 6S61-18K876-AF
• Ford 6000 CD Single CD – KW2000 – 6S61-18C815-AF
• Ford 6000 CD Single CD – KW2000 – 6S61-18C815-AG
• Ford 6000 CD Single CD – KW2000 – 6S61-18C815-AH
• Ford 6000 CD – 6S61-14C044-AB
• Ford 6000 Single CD – GGDS – 6C1T-18C815-AH
• Ford 6000 Single CD – GGDS – 6M2T-18C815-AF
• Ford 6006 CDC – 6C1T-18C815-BH

Volkswagen Supported Models:

• Visteon RCD300

Skoda Supported Models:

• Visteon Audience
• Visteon Stream

Radio PIN Code Query via OBDSTAR APP:

After binding the device with the OBDSTAR APP, users can query radio PIN codes using the radio serial number. The APP supports many brands including:

• Alfa Romeo
• Citroen (Brazil)
• Fiat
• Ford
• Peugeot
• Renault
• Chrysler
• Dodge
• Jaguar
• Jeep
• Land Rover
• Mazda
• Toyota
• Volvo Truck
• Scania Truck
• MAN Truck
• Iveco Truck
• Mack Truck
• Renault Truck
• And many more

OBDSTAR MT200 Specifications:

FAQ:

Q: Does the MT200 require an annual subscription?
A: Yes, the annual subscription fee is $30.

Q: Does MT200 support OBD reading and modification for all supported radios?
A: Yes, all supported models allow reading and modification via OBD.

Q: Does MT200 support BENCH reading and modification?
A: Yes, all supported models allow reading, modification and code off via BENCH.

Q: When is a 120 ohm resistor required?
A: When performing BENCH operation on Ford radios, a 120Ω resistor must be connected between CANH and CANL.

Q: When is a resistor not required?
A: OBD operations do not require resistors, and VW/Skoda BENCH operations do not require resistors.

Q: Do I need additional accessories?
A: No, all necessary accessories are included in the package.

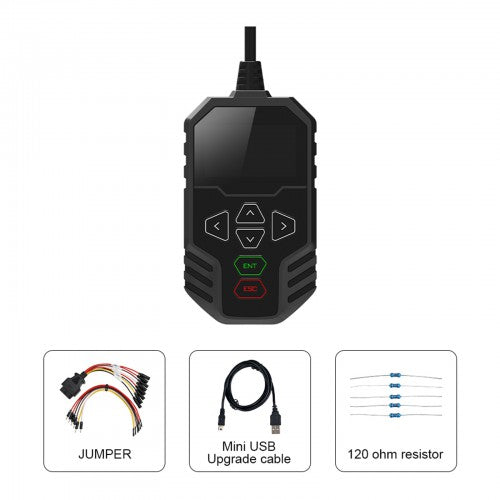

OBDSTAR MT200 Package Includes:

• 1pc x OBDSTAR MT200
• 1pc x Multi-Jumper
• 1pc x Mini USB Cable
• 5pcs x 120Ω Resistor
